Is the Stainless Steel One-Piece Ear Clip Ring with Double Ears suitable for reinforced and non-reinforced low-pressure hoses?

Yes. The Stainless Steel One-Piece Ear Clip Ring with Double Ears is suitable for both reinforced (braided) and non-reinforced low-pressure hoses. Made from AISI 304 stainless steel, it resists wear and corrosion while the two-ear design enables quick, reliable tightening with dedicated pliers. The rounded inner edges protect the hose from damage and help ensure a secure, leak-free connection. Its robust construction and easy installation make it an effective, durable choice for professional and industrial low-pressure hose applications.

Can the Stainless Steel One-Piece Ear Clip Ring with Double Ears be reused after removal, and if so, what is the recommended procedure?

Yes — the Stainless Steel One-Piece Ear Clip Ring with Double Ears can be reused, but reuse should be done cautiously to ensure continued sealing performance and safety. Recommended procedure: 1. Inspect: After removal, visually inspect the ring for visible deformation, cracks, stretched or flattened ears, and any corrosion or surface damage. Check the inner sealing edge for burrs or sharp edges. 2. Measure: Compare the ring’s original diameter and ear geometry to a new clamp or manufacturer specifications. If the clamp shows permanent deformation or the ear gap does not allow proper re-crimping, do not reuse. 3. Clean: Remove dirt, grease and residues from the clamp and hose seating area using a suitable solvent; dry completely. 4. Reinstall with proper tool: Use the dedicated pliers designed for the double-ear design to re-crimp the ears evenly and to the correct torque. Ensure the clamp sits squarely on the hose and that the rounded inner edge protects the hose without cutting into it. 5. Test: After reinstallation, pressure-test the assembly or run the system under working conditions to confirm a leak-free connection. 6. Replace if in doubt: For critical applications or if any damage or permanent deformation is present, replace the clamp with a new Stainless Steel One-Piece Ear Clip Ring with Double Ears to guarantee reliability and safety.

Stainless Steel One-Piece Ear Clip Ring with Double Ears

All products, Clamps for mounting ends/

Additional information

Material	SS – stainless steel

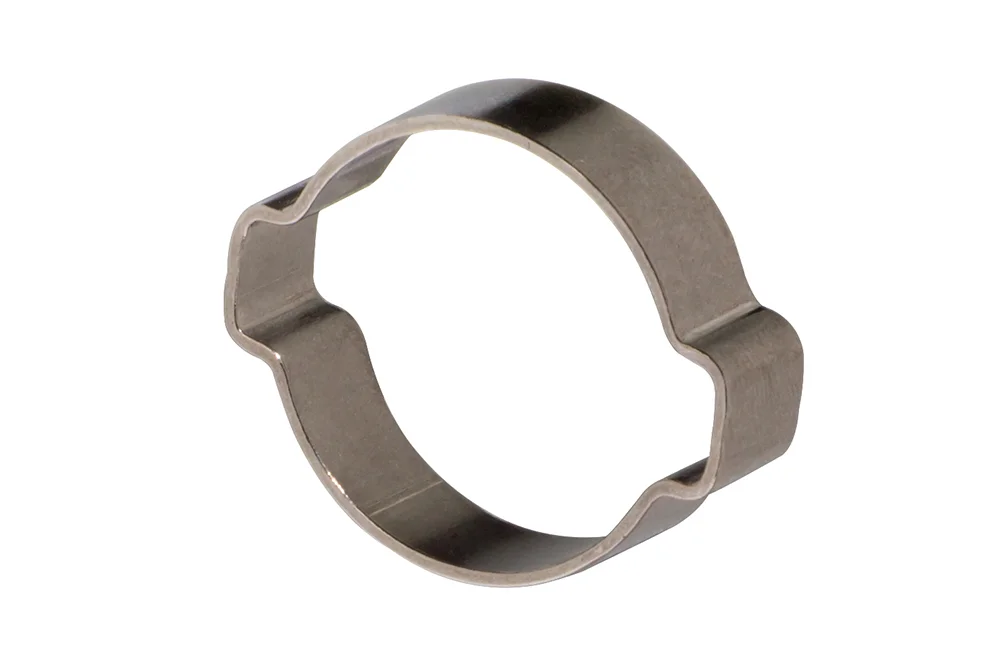

The EAR CLIP clamp ring with two ears is a reliable solution for securing a wide range of low-pressure hoses, whether reinforced with a braid or without additional support. Crafted from durable AISI 304 stainless steel, it ensures long-lasting resistance to wear, corrosion, and demanding working conditions. Its smart two-ear design allows for quick and effortless installation with the use of dedicated pliers, making it an efficient choice for both professional and industrial applications. The carefully rounded inner edges of the ring provide optimal protection, preventing hose damage and ensuring a secure, leak-free connection. Thanks to its robust construction and user-friendly assembly, this clamp delivers consistent performance, offering a practical and cost-effective fastening method that enhances safety and reliability in every system.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AB-23012108	Clamp ring. EAR CLIP-2 5÷7 mm, W4	-	-	In stock	Enquiry
AB-23012116	Clamp ring. EAR CLIP-2 7÷9 mm, W4	-	-	In stock	Enquiry
AB-23012124	Clamp ring. EAR CLIP-2 9÷11 mm, W4	-	-	In stock	Enquiry
AB-23012132	Clamp ring. EAR CLIP-2 11÷13 mm, W4	-	-	In stock	Enquiry
AB-23012140	Clamp ring. EAR CLIP-2 13÷15 mm, W4	-	-	In stock	Enquiry
AB-23012159	Clamp ring. EAR CLIP-2 14÷17 mm, W4	-	-	In stock	Enquiry
AB-23012167	Clamp ring. EAR CLIP-2 15÷18 mm, W4	-	-	In stock	Enquiry
AB-23012175	Clamp ring. EAR CLIP-2 17÷20 mm, W4	-	-	In stock	Enquiry
AB-23012183	Clamp ring. EAR CLIP-2 18÷21 mm, W4	-	-	In stock	Enquiry
AB-23012191	Clamp ring. EAR CLIP-2 20÷23 mm, W4	-	-	In stock	Enquiry
AB-23012204	Clamp ring. EAR CLIP-2 22÷25 mm, W4	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The EAR CLIP clamp ring with two ears is a reliable solution for securing a wide range of low-pressure hoses, whether reinforced with a braid or without additional support. Crafted from durable AISI 304 stainless steel, it ensures long-lasting resistance to wear, corrosion, and demanding working conditions. Its smart two-ear design allows for quick and effortless installation with the use of dedicated pliers, making it an efficient choice for both professional and industrial applications. The carefully rounded inner edges of the ring provide optimal protection, preventing hose damage and ensuring a secure, leak-free connection. Thanks to its robust construction and user-friendly assembly, this clamp delivers consistent performance, offering a practical and cost-effective fastening method that enhances safety and reliability in every system.
