Does the Stainless Steel SMS End with Nut, Tail, and RS Clamp, Type SWR meet food-grade surface finish Ra 0.8 µm and is it NSF/3-A certified for use in food processing?

Stainless Steel SMS End with Nut, Tail, and RS Clamp, Type SWR Format Based on the provided description, the Stainless Steel SMS End with Nut, Tail, and RS Clamp, Type SWR Format has a precisely engineered surface finish of Ra 0.8 µm in the hole, which meets common food‑grade surface roughness requirements for hygienic fittings. However, the description does not explicitly state NSF or 3‑A certification. Therefore: it meets the Ra 0.8 µm food‑grade surface finish, but there is no confirmation in the text that it is NSF or 3‑A certified for use in food processing. For formal certification status, request the manufacturer’s NSF/3‑A certificates or declaration.

Is the Stainless Steel SMS End with Nut, Tail, and RS Clamp, Type SWR compatible with CIP/SIP procedures and resistant to common cleaning agents used in food processing?

Yes. The Stainless Steel SMS End with Nut, Tail, and RS Clamp, Type SWR is compatible with CIP/SIP procedures and resistant to common cleaning agents used in food processing. Its construction from durable stainless steel and a finely finished internal surface (Ra 0.8 µm in the hole) ensures hygienic conditions, easy removal of soils and biofilms, and chemical resistance typical of stainless materials. The fitting is designed for food‑grade environments, withstands up to 15 bar working pressure, and its temperature limits vary by gasket choice—so selecting a gasket rated for CIP/SIP temperatures and the specific cleaning chemicals used (caustics, acids, sanitizers) will ensure full compatibility and long service life.

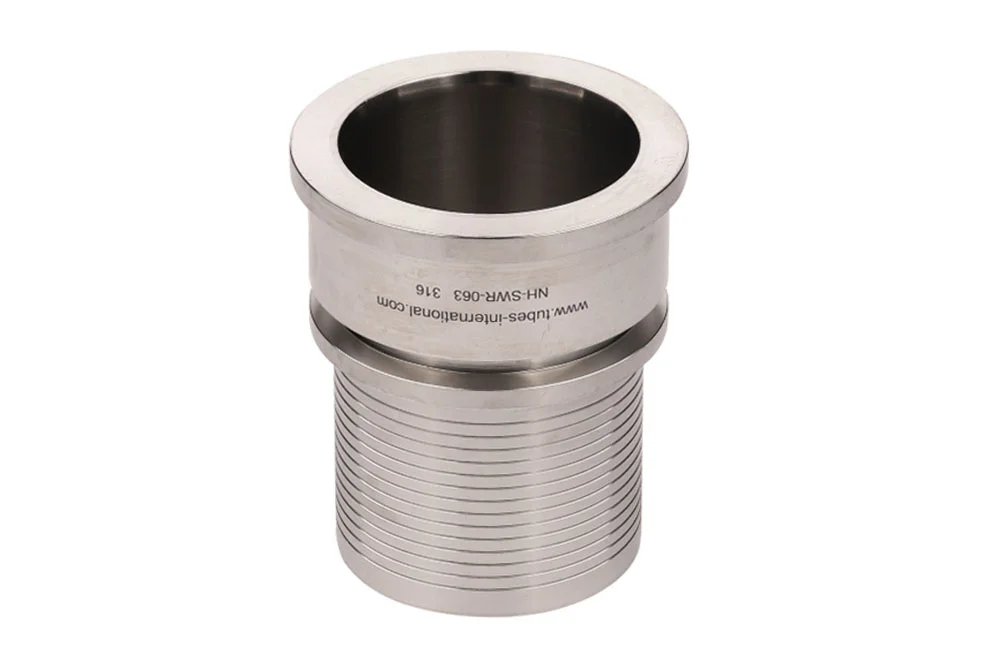

Stainless Steel SMS End with Nut, Tail, and RS Clamp, Type SWR

All products, Hygienic stainless steel couplings/

Additional information

Material	SS – stainless steel
Standard length [m]	100

The SMS end fitting under cap with tail secured beneath the RS clamp is a high‑quality stainless steel component designed to meet the demanding requirements of the food industry. Featuring a precisely engineered surface finish of Ra 0.8 µm in the hole, it ensures optimal hygiene and easy cleaning, minimizing the risk of contamination. The coupling itself is built to withstand a maximum working pressure of 15 bar, delivering reliable performance even in intensive processing environments. Its operating temperature range depends on the selected gasket material, allowing flexibility to adapt to various production needs. Manufactured from durable stainless steel, the fitting combines strength, corrosion resistance, and long service life, making it an ideal choice for applications where safety, cleanliness, and efficiency are paramount. This solution not only guarantees secure connections but also supports smooth workflows in food processing systems, helping businesses maintain the highest standards of quality and compliance.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NH-SWR-025	End. SMS under RS DN25, hose 25 mm	25	15	In stock	Enquiry
NH-SWR-032	End. SMS under RS DN32, hose 32 mm	32	15	In stock	Enquiry
NH-SWR-038	End. SMS under the RS DN38 clamp, hose 38 mm	38	15	In stock	Enquiry
NH-SWR-050	End. SMS under RS DN50, hose 50 mm	50	15	In stock	Enquiry
NH-SWR-051	End. SMS under RS DN50, hose 51 mm	50	15	In stock	Enquiry
NH-SWR-063	End. SMS under RS DN63, hose 63 mm	65	15	In stock	Enquiry
NH-SWR-075	End. SMS under the RS DN75 sleeve, hose 75 mm	75	15	In stock	Enquiry
NH-SWR-076	End. SMS under the RS DN75 sleeve, hose 76 mm	75	15	In stock	Enquiry
NH-SWR-102	End. SMS under RS DN100, hose 102 mm	100	15	In stock	Enquiry
