Is the SMS SZK Stainless Steel End with GZ Notched Tail compatible with food-grade gaskets for operation up to 10 bar per BS 4825-5?

Yes. The SMS SZK Stainless Steel End with GZ Notched Tail is compatible with food‑grade gaskets for operation up to 10 bar per BS 4825‑5. Its internal surface roughness of Ra 0.8 µm meets hygienic requirements for food and beverage use, and the AISI 316 stainless steel construction provides corrosion resistance and durability. The connection is rated to withstand a maximum working pressure of 10 bar according to BS 4825‑5; the allowable operating temperature will depend on the specific food‑grade gasket material selected.

Can the SMS SZK Stainless Steel End with GZ Notched Tail be used with high-temperature gaskets for processes exceeding standard temperature ranges?

Yes — the SMS SZK Stainless Steel End with GZ Notched Tail can be used with high-temperature gaskets for processes that exceed standard temperature ranges, provided the gasket material you select is rated for those temperatures. The fitting itself is made from AISI 316 stainless steel and designed for hygienic, high-performance use (Ra 0.8 µm inside bore, up to 10 bar per BS 4825-5), but its allowable operating temperature is governed by the gasket compound. Choose a gasket specifically specified for the required maximum temperature (and chemical compatibility) to ensure sealing integrity and long-term performance.

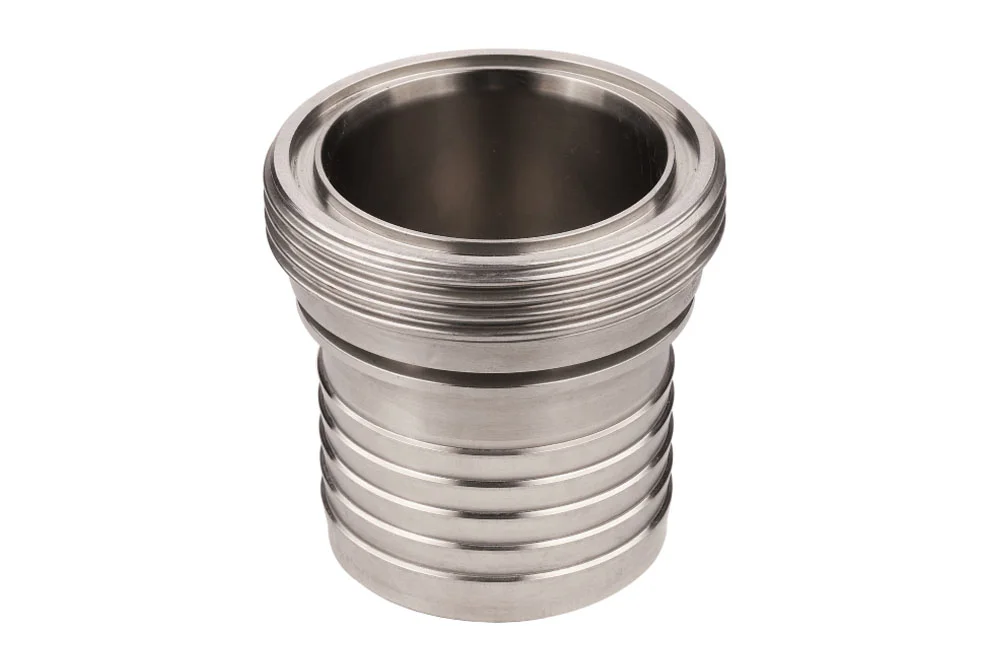

A fitting SMS with male thread with serrated tail, steel stainless, type SZK

All products, Hygienic stainless steel couplings/

Additional information

Material	SS – stainless steel

A fitting SMS with thread external Rd, with serrated tail, Ra (in the bore) 0.8 µm, for use in industry food. maximum The permissible pressure working (for the same coupling acc. to BS 4825-5): 10 bar<. Operating temperature: depending on kinds material used the gasket. Material: steel AISI 316.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NH-SZK-025	Fitting SMS serrated DN25, Rd 40x1/6", hose 25 mm	25	15	In stock	Enquiry
NH-SZK-032	Fitting SMS serrated DN32, Rd 48x1/6", hose 32 mm	32	15	In stock	Enquiry
NH-SZK-038	Fitting SMS serrated DN38, Rd 60x1/6", hose 38 mm	38	15	In stock	Enquiry
NH-SZK-050	Fitting SMS serrated DN50, Rd 70x1/6", hose 50 mm	50	15	In stock	Enquiry
NH-SZK-063	Fitting SMS serrated DN63, Rd 85x1/6", hose 63 mm	65	15	In stock	Enquiry
NH-SZK-075	Fitting SMS serrated DN75, Rd 98x1/6", hose 75 mm	75	15	In stock	Enquiry
NH-SZK-080	Fitting SMS serrated DN75, Rd 98x1/6", hose 80 mm	80	15	In stock	Enquiry
NH-SZK-100	Fitting SMS serrated DN100, Rd 132x1/6", hose 102 mm	100	15	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A fitting SMS with thread external Rd, with serrated tail, Ra (in the bore) 0.8 µm, for use in industry food. maximum The permissible pressure working (for the same coupling acc. to BS 4825-5): 10 bar<. Operating temperature: depending on kinds material used the gasket. Material: steel AISI 316.
