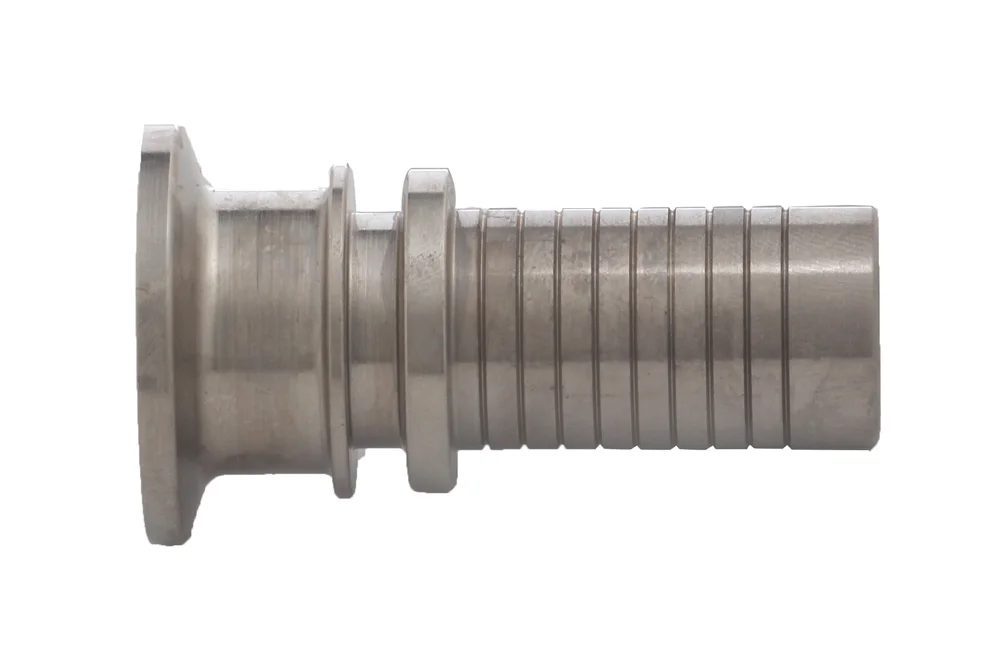

The TRICLOVER flange end with a smooth tail is designed for secure and reliable connection of rubber and plastic hoses, including those reinforced with UPE, PTFE, FEP, MFA, or PFA linings. Manufactured from high-quality AISI 316 stainless steel, it ensures exceptional durability, resistance to corrosion, and compliance with the strict hygiene standards required in pharmaceutical, biotechnological, cosmetic, food, and chemical applications. Engineered for transferring both liquids and highly viscous media, it guarantees safe performance under demanding conditions. Depending on the hose size and clamp type, the system withstands working pressures of at least 16 bar for 2″ connections and 10 bar for larger diameters. Easy and flexible installation is possible with TI-LR or TI-LDR clamp sleeves, as well as with RS shell clamps, providing a versatile solution tailored to different operational needs. This robust and hygienic connection technology offers reliability, efficiency, and long service life, making it an ideal choice for industries where safety and cleanliness are paramount.
List of product variants
Article number
Product variant name
Nominal inner diameter
Working pressure [bar]
Enquiry
Catalogue
NH-TCR-025-09-013
End. TRICLOVER coupling 25/9.4 mm for RS, hose 13 mm
12
16
NH-TCR-025-10-013
End. TRICLOVER coupling 25/10 mm for RS, hose 13 mm
12
16
NH-TCR-025-11-013
End. TRICLOVER coupling 25/10.3 mm for RS, hose 13 mm
12
16
NH-TCR-025-12-013
End. TRICLOVER coupling 25/12 mm for RS, hose 13 mm
12
16
NH-TCR-025-14-013
End. TRICLOVER coupling 25/14 mm for RS, hose 13 mm
12
16
NH-TCR-025-15-013
End. TRICLOVER fitting 25/15.75 mm for RS, hose 13 mm
12
16
NH-TCR-025-15-019
End. TRICLOVER coupling 25/15.75 mm for RS, hose 19 mm
20
16
NH-TCR-025-16-019
End. TRICLOVER coupling 25/16 mm for RS, hose 19 mm
20
16
NH-TCR-034-10-013
End. TRICLOVER coupling 34/10 mm for RS, hose 13 mm
12
16
NH-TCR-034-10B-013
End. TRICLOVER coupling 34/10.3 mm for RS, hose 13 mm
12
16
NH-TCR-034-11-013
End. TRICLOVER coupling 34/10.7 mm for RS, hose 13 mm
12
16
NH-TCR-034-14-013
End. TRICLOVER coupling 34/14 mm for RS, hose 13 mm
12
16
NH-TCR-034-15-013
End. TRICLOVER coupling 34/15.2 mm for RS, hose 13 mm
12
16
NH-TCR-034-15-019
End. TRICLOVER coupling 34/15.2 mm for RS, hose 19 mm
20
16
NH-TCR-034-16-013
End. TRICLOVER fitting 34/16 mm for RS, hose 13 mm
12
16
NH-TCR-034-16-019
End. TRICLOVER coupling 34/16 mm for RS, hose 19 mm
20
16
NH-TCR-034-18-019
End. TRICLOVER coupling 34/18.1 mm for RS, hose 19 mm
20
16
NH-TCR-034-19-019
End. TRICLOVER coupling 34/19.3 mm for RS, hose 19 mm
20
16
NH-TCR-034-20-019
End. TRICLOVER coupling 34/20 mm for RS, hose 19 mm
20
16
NH-TCR-050-09-013
End. TRICLOVER collar. 50.5/9.4 mm for RS, hose 13 mm
12
16
NH-TCR-050-15-019
End. TRICLOVER coupling 50.5/15.75 mm for RS, hose 19 mm
20
16
NH-TCR-050-18-019
End. TRICLOVER coupling 50.5/18.1 mm for RS, hose 19 mm
20
16
NH-TCR-050-22-013
End. TRICLOVER coupling 50.5/22.1 mm for RS, hose 13 mm
12
16
NH-TCR-050-22-019
End. TRICLOVER coupling 50.5/22.1 mm for RS, hose 19 mm
20
16
NH-TCR-050-22-025
End. TRICLOVER coupling 50.5/22.1 mm for RS, hose 25 mm
25
16
NH-TCR-050-23-025
End. TRICLOVER coupling 50.5/22.6 mm for RS, hose 25 mm
25
16
NH-TCR-050-24-019
End. TRICLOVER coupling 50.5/23.7 mm for RS, hose 19 mm
20
16
NH-TCR-050-24-025
End. TRICLOVER coupling 50.5/23.7 mm for RS, hose 25 mm
25
16
NH-TCR-050-26-013
End. TRICLOVER coupling 50.5/26 mm for RS, hose 13 mm
12
16
NH-TCR-050-26-019
End. TRICLOVER coupling 50.5/26 mm for RS, hose 19 mm
20
16
NH-TCR-050-26-025
End. TRICLOVER coupling 50.5/26 mm for RS, hose 25 mm
25
16
NH-TCR-050-30-019
End. TRICLOVER coupling 50.5/29.7 mm for RS, hose 19 mm
20
16
NH-TCR-050-30-025
End. TRICLOVER coupling 50.5/29.7 mm for RS, hose 25 mm
25
16
NH-TCR-050-30-032
End. TRICLOVER coupling 50.5/29.7 mm for RS, hose 32 mm
32
16
NH-TCR-050-31-025
End. TRICLOVER coupling 50.5/31.3 mm for RS, hose 25 mm
25
16
NH-TCR-050-31-032
End. TRICLOVER collar. 50.5/31.3 mm for RS, hose 32 mm
32
16
NH-TCR-050-32-019
End. TRICLOVER coupling 50.5/32 mm for RS, hose 19 mm
20
16
NH-TCR-050-32-025
End. TRICLOVER coupling 50.5/32 mm for RS, hose 25 mm
25
16
NH-TCR-050-32-032
End. TRICLOVER coupling 50.5/32 mm for RS, hose 32 mm
32
16
NH-TCR-050-35-019
End. TRICLOVER collar. 50.5/34.8 mm for RS, hose 19 mm
20
16
NH-TCR-050-35-025
End. TRICLOVER coupling 50.5/34.8 mm for RS, hose 25 mm
25
16
NH-TCR-050-35-032
End. TRICLOVER coupling 50.5/34.8 mm for RS, hose 32 mm
32
16
NH-TCR-050-35-038
End. TRICLOVER coupling 50.5/34.8 mm for RS, hose 38 mm
38
16
NH-TCR-050-35-040
End. TRICLOVER collar. 50.5/34.8 mm for RS, hose 40 mm
40
16
NH-TCR-050-36-038
End. TRICLOVER coupling 50.5/35.6 mm for RS, hose 38 mm
38
16
NH-TCR-050-38-019
End. TRICLOVER coupling 50.5/38 mm for RS, hose 19 mm
20
16
NH-TCR-050-38-025
End. TRICLOVER coupling 50.5/38 mm for RS, hose 25 mm
25
16
NH-TCR-050-38-032
End. TRICLOVER coupling 50.5/38 mm for RS, hose 32 mm
32
16
NH-TCR-050-38-038
End. TRICLOVER coupling 50.5/38 mm for RS, hose 38 mm
38
16
NH-TCR-050-38-040
End. TRICLOVER coupling 50.5/38 mm for RS, hose 40 mm
40
16
NH-TCR-050-38B-032
End. TRICLOVER coupling 50.5/38.4 mm for RS, hose 32 mm
32
16
NH-TCR-050-38B-038
End. TRICLOVER collar. 50.5/38.4 mm for RS, hose 38 mm
38
16
NH-TCR-064-37-038
End. TRICLOVER coupling 64/37.6 mm for RS, hose 38 mm
38
16
NH-TCR-064-38-038
End. TRICLOVER coupling 64/38.4 mm for RS, hose 38 mm
38
16
NH-TCR-064-44-038
End. TRICLOVER coupling 64/44.3 mm for RS, hose 38 mm
38
16
NH-TCR-064-48-025
End. TRICLOVER coupling 64/47.5 mm for RS, hose 25 mm
25
16
NH-TCR-064-48-032
End. TRICLOVER coupling 64/47.5 mm for RS, hose 32 mm
32
16
NH-TCR-064-48-038
End. TRICLOVER coupling 64/47.5 mm for RS, hose 38 mm
38
16
NH-TCR-064-48-050
End. TRICLOVER coupling 64/47.5 mm for RS, hose 50 mm
50
16
NH-TCR-064-48-051
End. TRICLOVER coupling 64/47.5 mm for RS, hose 51 mm
50
16
NH-TCR-064-49-050
End. TRICLOVER coupling 64/48.6 mm for RS, hose 50 mm
50
16
NH-TCR-064-49-051
End. TRICLOVER coupling 64/48.6 mm for RS, hose 51 mm
50
16
NH-TCR-064-50-025
End. TRICLOVER coupling 64/50 mm for RS, hose 25 mm
25
16
NH-TCR-064-50-038
End. TRICLOVER coupling 64/50 mm for RS, hose 38 mm
38
16
NH-TCR-064-50-040
End. TRICLOVER coupling 64/50 mm for RS, hose 40 mm
40
16
NH-TCR-064-50-050
End. TRICLOVER coupling 64/50 mm for RS, hose 50 mm
50
16
NH-TCR-064-50-051
End. TRICLOVER coupling 64/50 mm for RS, hose 51 mm
50
16
NH-TCR-077-56-051
End. TRICLOVER coupling 77.5/56.3 mm for RS, hose 51 mm
50
16
NH-TCR-077-56-063
End. TRICLOVER collar. 77.5/56.3 mm for RS, hose 63 mm
65
10
NH-TCR-077-60-040
End. TRICLOVER coupling 77.5/60.3 mm for RS, hose 40 mm
40
16
NH-TCR-077-60-050
End. TRICLOVER coupling 77.5/60.3 mm for RS, hose 50 mm
50
16
NH-TCR-077-60-051
End. TRICLOVER coupling 77.5/60.3 mm for RS, hose 51 mm
50
16
NH-TCR-077-60-063
End. TRICLOVER coupling 77.5/60.3 mm for RS, hose 63 mm
65
10
NH-TCR-077-60-065
End. TRICLOVER coupling 77.5/60.3 mm for RS, hose 65 mm
65
10
NH-TCR-091-66-063
End. TRICLOVER coupling 91/66 mm for RS, hose 63 mm
65
10
NH-TCR-091-66-076
End. TRICLOVER coupling 91/66 mm for RS, hose 76 mm
75
10
NH-TCR-091-67-063
End. TRICLOVER coupling 91/66.8 mm for RS, hose 63 mm
65
10
NH-TCR-091-67-065
End. TRICLOVER coupling 91/66.8 mm for RS, hose 65 mm
65
10
NH-TCR-091-67-076
End. TRICLOVER coupling 91/66.8 mm for RS, hose 76 mm
75
10
NH-TCR-091-72-063
End. TRICLOVER coupling 91/72.1 mm for RS, hose 63 mm
65
10
NH-TCR-091-72-075
End. TRICLOVER coupling 91/72.1 mm for RS, hose 75 mm
75
10
NH-TCR-091-72-076
End. TRICLOVER coupling 91/72.1 mm for RS, hose 76 mm
75
10
NH-TCR-091-73-051
End. TRICLOVER coupling 91/73 mm for RS, hose 51 mm
50
16
NH-TCR-091-73-063
End. TRICLOVER coupling 91/73 mm for RS, hose 63 mm
65
10
NH-TCR-091-73-075
End. TRICLOVER coupling 91/73 mm for RS, hose 75 mm
75
10
NH-TCR-091-73-076
End. TRICLOVER coupling 91/73 mm for RS, hose 76 mm
75
10
NH-TCR-106-81-076
End. TRICLOVER coupling 106/81 mm for RS, hose 76 mm
75
10
NH-TCR-106-81-080
End. TRICLOVER coupling 106/81 mm for RS, hose 80 mm
80
10
NH-TCR-106-84-076
End. TRICLOVER coupling 106/84.3 mm for RS, hose 76 mm
75
10
NH-TCR-106-85-076
End. TRICLOVER coupling 106/84.9 mm for RS, hose 76 mm
75
10
NH-TCR-119-100-102
End. TRICLOVER coupling 119/100 mm under RS, hose 102 mm
100
10
NH-TCR-119-98-100
End. TRICLOVER coupling 119/97.6 mm for RS, hose 100 mm
100
10
NH-TCR-119-98-102
End. TRICLOVER collar. 119/97.6 mm for RS, hose 102 mm
100
10
NH-TCR-130-110-102
End. TRICLOVER coupling 130/110.3 mm for RS, hose 102 mm
100
10
