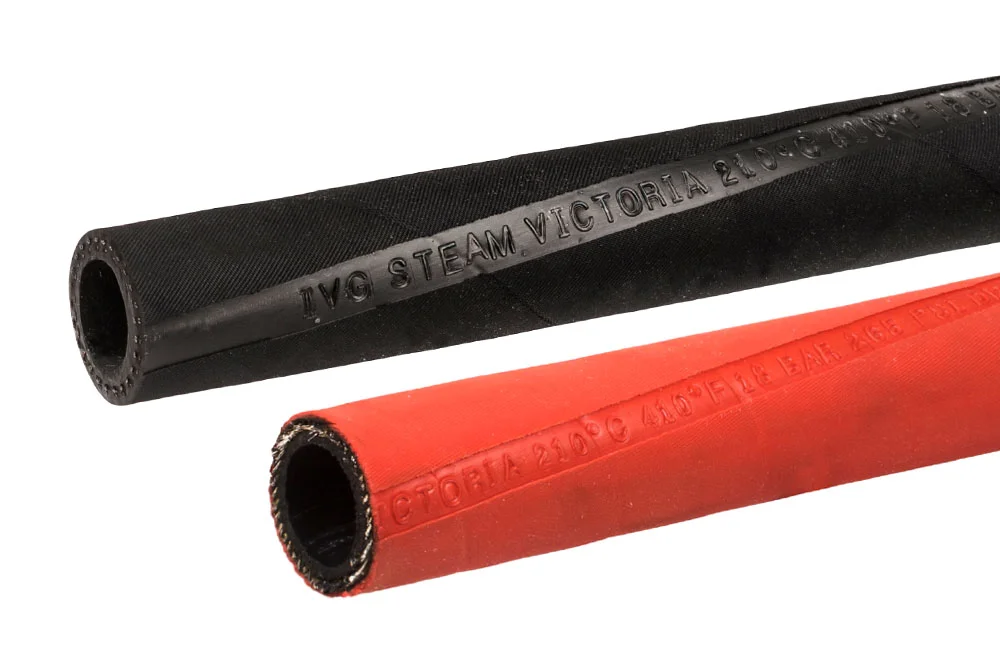

Hose delivery for steam saturated and superheated VICTORIA®
High-pressure hose delivery, of reinforcement steel, intended for conducting steam superheated. Layer outer resistant to high temperature and conditions atmospheric. Not intended for steam cleaners (“dry steam cleaners”). Do steam water use special fittings bolted screws intended for steam water. in order to extending service life should empty hose with steam po use, by avoid accumulation condensate. Standard length: 60 m (or 120 m – contact Tubes International). Inner layer: black EPDM rubber. Reinforcement: double cord with wire steel. Outer layer: black or red EPDM rubber, micro-perforated. Working pressure: 18 bar. Operating temperature: od -40°C up to +210°C (momentarily up to +232°C).
List of product variants
Do you need a larger quantity of products or a bespoke quote?
High-pressure hose delivery, of reinforcement steel, intended for conducting steam superheated. Layer outer resistant to high temperature and conditions atmospheric. Not intended for steam cleaners (“dry steam cleaners”). Do steam water use special fittings bolted screws intended for steam water. in order to extending service life should empty hose with steam po use, by avoid accumulation condensate. Standard length: 60 m (or 120 m – contact Tubes International). Inner layer: black EPDM rubber. Reinforcement: double cord with wire steel. Outer layer: black or red EPDM rubber, micro-perforated. Working pressure: 18 bar. Operating temperature: od -40°C up to +210°C (momentarily up to +232°C).
Additional information
| Material | EPDM – ethylene-propylene-diene rubber |
|---|---|
| Maximum operating temperature [°C] | 210 |
| Minimum operating temperature [°C] | -40 |
| Vacuum resistance | no |
| Standard length [m] | 5, 50, 60, 60 / 120, 60/ 120 |
| Reinforcement | 2 steel braids |
