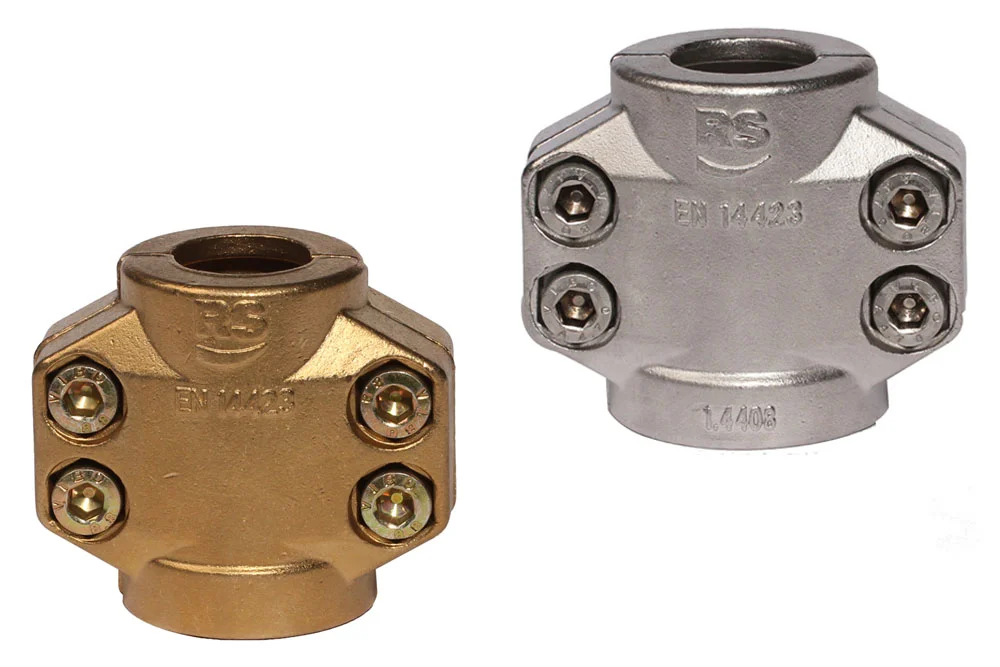

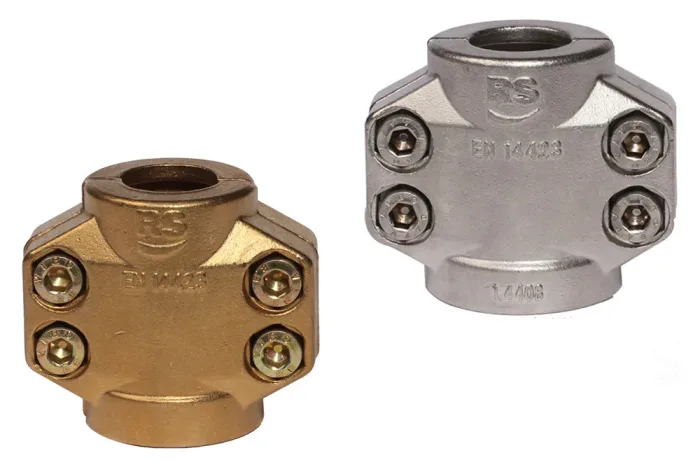

A clamp shell for steam water EN 14423 (DIN 2826) for ends type VSS, MSS, FSS and SSF
High quality A clamp shell Heavy Duty Intended primarily for hoses rubber for steam water for mounting ends for steam type VSS, MSS, FSS, SSF. made (sizes 1/2” for 2”) according to EN 14423 (DIN 2826). screws and a nut of galvanized steel (for clamps with brass), of steel stainless (for clamps of steel stainless).a clamp should select for diameter internal hose and for wall thickness wall hose acc. to size nominal clamp, tak, to Diameter outer mounted hose fit in given for clamp the scope. initial tightening clamp requires use long bolts auxiliary. Material: brass, steel AISI 316. Operating temperature: for + 230°C. Working pressure: 18 bar (+ 210°C) – steam saturated, other use: selection in contact with TUBES INTERNATIONAL®.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
High quality A clamp shell Heavy Duty Intended primarily for hoses rubber for steam water for mounting ends for steam type VSS, MSS, FSS, SSF. made (sizes 1/2” for 2”) according to EN 14423 (DIN 2826). screws and a nut of galvanized steel (for clamps with brass), of steel stainless (for clamps of steel stainless).a clamp should select for diameter internal hose and for wall thickness wall hose acc. to size nominal clamp, tak, to Diameter outer mounted hose fit in given for clamp the scope. initial tightening clamp requires use long bolts auxiliary. Material: brass, steel AISI 316. Operating temperature: for + 230°C. Working pressure: 18 bar (+ 210°C) – steam saturated, other use: selection in contact with TUBES INTERNATIONAL®.
Additional information
| Material | B – brass (bronze) |
|---|---|
| Standard length [m] | 25, 60 |
