Is the Steel Blanking Plate NG6 suitable for continuous operation at 315 bar and how does NBR sealing affect its lifespan?

Yes. The Steel Blanking Plate NG6 Format is rated for continuous operation up to 315 bar, so it is suitable for high‑pressure, continuous-duty hydraulic applications when operated within the specified limits. Its steel construction provides the mechanical strength and wear resistance required for sustained service at that pressure. NBR (nitrile rubber) seals contribute very good sealing performance and durability under intensive use, which helps prevent leakage and extends service life. NBR performs well across the plate’s specified medium temperature range (−20°C to +80°C) and typical hydraulic fluids, but its longevity can be reduced by: - Extended exposure near the upper temperature limit (+80°C for the medium), chemical incompatibility with certain fluids (e.g., strong petroleum additives or aggressive synthetic fluids), or contamination/abrasion. - Environmental temperature above +50°C (ambient limit), which can accelerate seal aging. For maximum lifespan: operate within pressure and temperature limits, use compatible hydraulic fluids, avoid excessive mechanical shocks or contamination, and perform regular inspection/replacement of seals.

Can the Steel Blanking Plate NG6 be used with fluids outside the -20°C to +80°C medium range without compromising NBR sealing performance?

The Steel Blanking Plate NG6 is specified with NBR sealing rated for a medium temperature range of -20°C to +80°C. Using fluids with temperatures outside that range risks degrading NBR properties (hardening, swelling, loss of elasticity or sealing ability) and therefore can compromise sealing performance. If you must run fluids colder than -20°C or hotter than +80°C, consider selecting a different seal material (e.g., FKM/Viton, EPDM, or PTFE, depending on fluid compatibility and temperature) or a version of the plate designed and certified for the extended temperature/chemical conditions. Always validate compatibility with the specific fluid and operating profile through manufacturer guidance or testing before use.

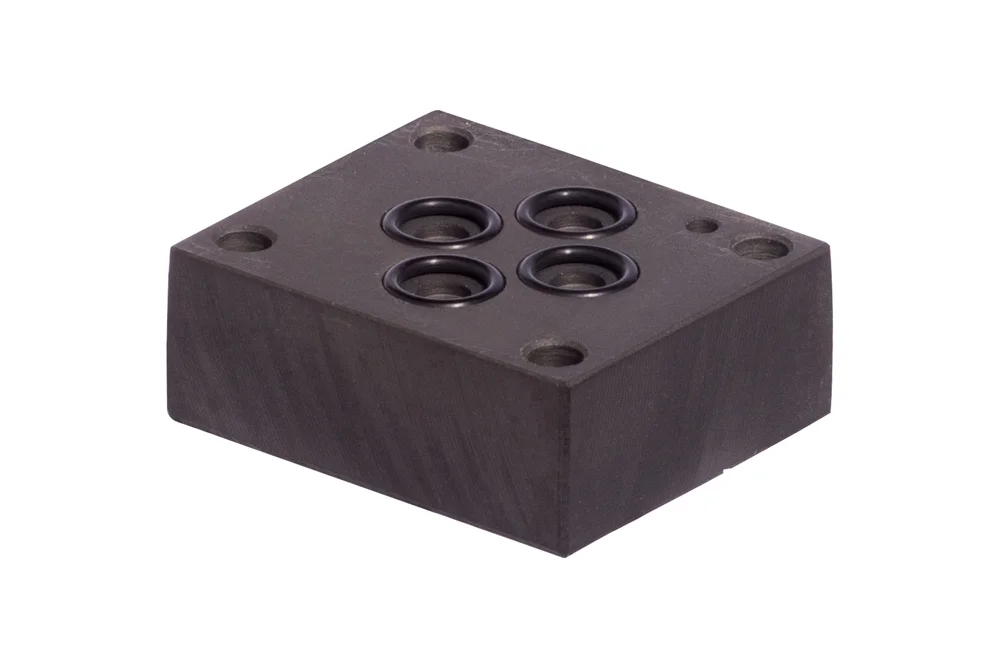

Plate blanking NG6, steel

All products, Valves and plate adapters/

Additional information

Material	CS – steel (cast iron)

Plate blanking Intended for blanking channels A, B, P and T the connection plate NG6. Material: steel. sealing: NBR. maximum Working pressure: 315 bar. Operating temperature: od -20°C up to +80°C (medium), od -20°C up to +50°C (ambient).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
TL-PNG6-Z	Plate blanking NG6	-	315	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Plate blanking Intended for blanking channels A, B, P and T the connection plate NG6. Material: steel. sealing: NBR. maximum Working pressure: 315 bar. Operating temperature: od -20°C up to +80°C (medium), od -20°C up to +50°C (ambient).
