Is the BANJO Straight Coupling DIN 7642 with Measuring Hose End compatible with other micro-hose fittings and adapters?

Yes — the BANJO Straight Coupling DIN 7642 with Measuring Hose End is designed for compatibility with other micro-hose fittings and adapters that conform to the same DIN 7642 standard and matching hose/connector dimensions. Its standardized geometry and supplied crimping sleeve allow secure mechanical and hydraulic mating with compliant micro-hose systems, delivering a tight, leak-free connection at working pressures up to 200 bar and temperatures from -30°C to +120°C. However, full compatibility requires: - matching DIN 7642 thread/profile or equivalent approved standard, - correct hose inner/outer diameter and crimp sleeve dimensions, - materials and coatings that suit the application (the zinc-nickel coated steel body is durable but may interact with dissimilar metals in specific environments). If you plan to mate it with non‑standard micro fittings or adapters, verify dimensional specs and pressure/temperature ratings first to avoid leaks or failures.

Can the BANJO Straight Coupling DIN 7642 with Measuring Hose End be used safely at its maximum rated temperature of +120°C without reducing service life?

Yes — the BANJO Straight Coupling DIN 7642 with Measuring Hose End can be used safely at its maximum rated temperature of +120°C without inherently reducing service life, provided the following conditions are met: - The application stays within the specified operating limits: ≤200 bar working pressure and -30°C to +120°C temperature range. - Compatible micro hoses and fluids are used (materials must be rated for continuous exposure to +120°C). - Proper installation is performed using the supplied crimping sleeve and recommended crimping procedure to ensure a secure, leak-free connection. - The zinc-nickel coating and steel construction remain intact (no chemical exposure or abrasive conditions that could degrade corrosion protection). - Regular inspection and maintenance schedules are followed to detect wear, coating damage, or hose deterioration early. If any of these conditions are not met — e.g., hose materials, seals, fluids, or external environment are not rated for continuous 120°C service, or installation/maintenance is inadequate — then service life may be reduced even though the fitting itself is rated to +120°C.

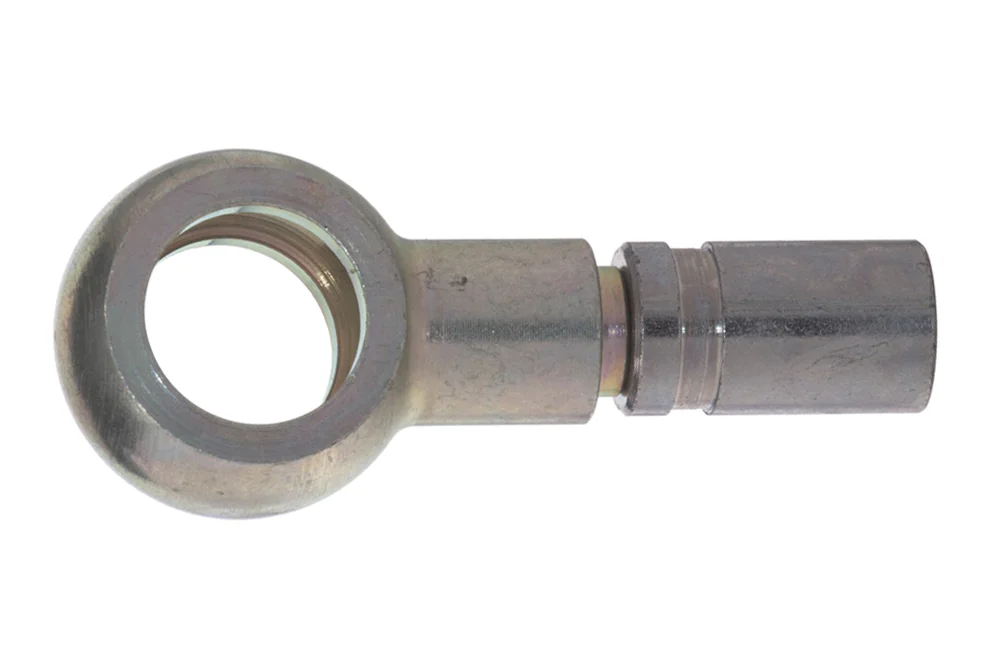

BANJO Straight Coupling DIN 7642 with Measuring Hose End

Additional information

Material	CS – steel (cast iron)

The BANJO straight fitting DIN 7642 is a high-performance connector designed for precision applications with micro hoses, ensuring secure and reliable operation even in demanding environments. Manufactured from robust steel and enhanced with a durable zinc-nickel coating, it provides outstanding resistance to corrosion and wear, extending the service life of your hydraulic systems. The fitting comes complete with a crimping sleeve, allowing for quick and efficient installation while guaranteeing a tight, leak-free connection. Engineered to withstand working pressures up to 200 bar and operating temperatures ranging from -30°C to +120°C, it delivers consistent performance under both extreme cold and high heat. This makes it an ideal choice for industries that require durability, safety, and efficiency, offering a dependable solution that supports smooth operations and minimizes downtime.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
PS-801-70-008-00	End. BANJO 8 mm, hose 2x5 mm, with sleeve	2	200	In stock	Enquiry
PS-801-70-010-00	End. BANJO 10 mm, hose 2x5 mm, with sleeve	2	200	In stock	Enquiry
PS-801-70-202-00	End. BANJO 1/8" BSP, hose 2x5 mm, with sleeve	2	200	In stock	Enquiry
PS-804-70-008-00	End. BANJO 8 mm, hose 4x8 mm, with sleeve	4	200	In stock	Enquiry
PS-804-70-010-00	End. BANJO 10 mm, hose 4x8 mm, with sleeve	4	200	In stock	Enquiry
PS-804-70-202-00	End. BANJO 1/8" BSP, hose 4x8 mm, with sleeve	4	200	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY
