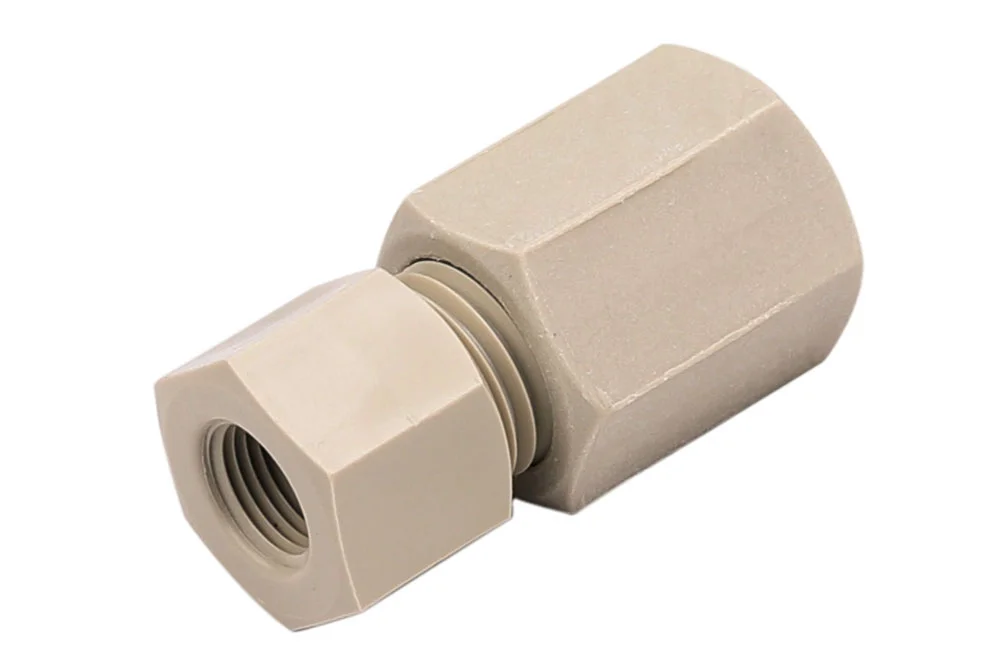

Straight Hose End with GW BSP Thread, PP/PVDF, Series 2N Type EM

Additional information

Material

P – material (plastic)

The straight end fitting with BSP GW series 2N type EM is a highly reliable solution designed for secure connections in demanding applications across laboratories, medical facilities, pharmaceutical production, chemical processing, and the food industry. Engineered for use with rigid hoses and tubes made of advanced materials such as PTFE, FEP, PFA, glass, metal, polyamide (PA), and polyethylene (PE), it ensures maximum durability and compatibility. The innovative locking system with a ring and nut guarantees stable hose fixation, while the PTFE sealing ring provides a tight, leak-free connection. This design prevents any reduction in the hose cross-section, maintaining optimal flow efficiency and process safety. Manufactured from robust polypropylene or PVDF, the fitting withstands working pressures up to 10 bar, offering long-lasting performance even in challenging environments. Available in a wide range of sizes and diameters, it delivers flexibility and precision tailored to individual system requirements, making it an ideal choice for professionals seeking reliability, efficiency, and uncompromising quality.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
EM-2N100FG3814PPStraight end (series 2N) with GW BSP 1/4", hose 4 mm, polypropylene-10In stock
Enquiry
EM-2N100FG3814PVStraight end (series 2N) with GW BSP 1/4", hose 4 mm, PVDF-10In stock
Enquiry
EM-2N100FG3818PPStraight fitting (series 2N) with GW BSP 1/8", hose 4 mm, polypropylene-10In stock
Enquiry
EM-2N100FG3818PVStraight fitting (series 2N) with GW BSP 1/8", hose 4 mm, PVDF-10In stock
Enquiry
EM-2N100FG4014PPStraight end (series 2N) with GW BSP 1/4", hose 6 mm, polypropylene-10In stock
Enquiry
EM-2N100FG4014PVStraight fitting (series 2N) with GW BSP 1/4", hose 6 mm, PVDF-10In stock
Enquiry
EM-2N100FG4018PPStraight fitting (series 2N) with GW BSP 1/8", hose 6 mm, polypropylene-10In stock
Enquiry
EM-2N100FG4018PVStraight fitting (series 2N) with GW BSP 1/8", hose 6 mm, PVDF-10In stock
Enquiry
EM-2N100FG4312PPStraight end (series 2N) with BSP 1/2", hose 8 mm, polypropylene-10In stock
Enquiry
EM-2N100FG4312PVStraight end (series 2N) with GW BSP 1/2", hose 8 mm, PVDF-10In stock
Enquiry
EM-2N100FG4338PPStraight end (series 2N) with GW BSP 3/8", hose 8 mm, polypropylene-10In stock
Enquiry
EM-2N100FG4338PVStraight end (series 2N) with GW BSP 3/8", hose 8 mm, PVDF-10In stock
Enquiry
EM-2N100FG4512PPStraight end (series 2N) with BSP 1/2", hose 10 mm, polypropylene-10In stock
Enquiry
EM-2N100FG4512PVStraight end (series 2N) with GW BSP 1/2", hose 10 mm, PVDF-10In stock
Enquiry
EM-2N100FG4538PPStraight end (series 2N) with GW BSP 3/8", hose 10 mm, polypropylene-10In stock
Enquiry
EM-2N100FG4812PPStraight end (series 2N) with GW BSP 1/2", hose 12 mm, polypropylene-10In stock
Enquiry
EM-2N100FG4812PVStraight end (series 2N) with GW BSP 1/2", hose 12 mm, PVDF-10In stock
Enquiry
EM-2N100FG5112PVStraight end (series 2N) with GW BSP 1/2", hose 14 mm, PVDF-10In stock
Enquiry
EM-2N100FG5312PPStraight end (series 2N) with GW BSP 1/2", hose 16 mm, polypropylene-10In stock
Enquiry
EM-2N100FG5312PVStraight end (series 2N) with GW BSP 1/2", hose 16 mm, PVDF-10In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

The straight end fitting with BSP GW series 2N type EM is a highly reliable solution designed for secure connections in demanding applications across laboratories, medical facilities, pharmaceutical production, chemical processing, and the food industry. Engineered for use with rigid hoses and tubes made of advanced materials such as PTFE, FEP, PFA, glass, metal, polyamide (PA), and polyethylene (PE), it ensures maximum durability and compatibility. The innovative locking system with a ring and nut guarantees stable hose fixation, while the PTFE sealing ring provides a tight, leak-free connection. This design prevents any reduction in the hose cross-section, maintaining optimal flow efficiency and process safety. Manufactured from robust polypropylene or PVDF, the fitting withstands working pressures up to 10 bar, offering long-lasting performance even in challenging environments. Available in a wide range of sizes and diameters, it delivers flexibility and precision tailored to individual system requirements, making it an ideal choice for professionals seeking reliability, efficiency, and uncompromising quality.
