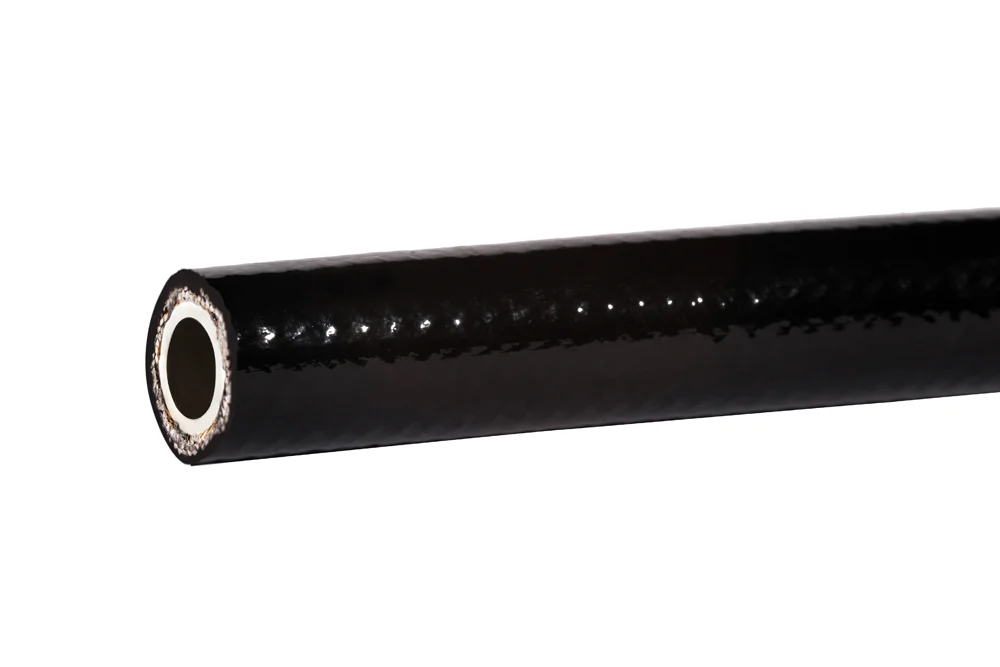

Hose thermoplastic with a steel braid MTH1

Additional information

Material

PEE – polyester

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

check

Light, flexible hose intended for oil installation hydraulic, fuels, liquids based on water. on request micro-perforated (for gases and air). Inner layer: polyester. Reinforcement: a steel braid. Outer layer: polyurethane. Working pressure: from 70 bar to 325 bar, depending on the diameter hose. Operating temperature: od -40°C up to +100°C (for water and air up to +70°C).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
ZC-MTH1-05Hose thermoplastic MTH1 3/16"5325In stock0 €
Enquiry
ZC-MTH1-06Hose thermoplastic MTH1 1/4"6300In stock0 €
Enquiry
ZC-MTH1-08Hose thermoplastic MTH1 5/16"8240In stock0 €
Enquiry
ZC-MTH1-10Hose thermoplastic MTH1 3/8"10225In stock0 €
Enquiry
ZC-MTH1-13Hose thermoplastic MTH1 1/2"12190In stock0 €
Enquiry
ZC-MTH1-16Hose thermoplastic MTH1 5/8"16150In stock0 €
Enquiry
ZC-MTH1-19Hose thermoplastic MTH1 3/4"20130In stock0 €
Enquiry
ZC-MTH1-25Hose thermoplastic MTH1 1"25105In stock0 €
Enquiry
ZC-MTH1-32Hose thermoplastic MTH1 1.1/4"3270In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Light, flexible hose intended for oil installation hydraulic, fuels, liquids based on water. on request micro-perforated (for gases and air). Inner layer: polyester. Reinforcement: a steel braid. Outer layer: polyurethane. Working pressure: from 70 bar to 325 bar, depending on the diameter hose. Operating temperature: od -40°C up to +100°C (for water and air up to +70°C).

Additional information

Material

PEE – polyester

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

check

Do you need a larger quantity of products or a bespoke quote?
