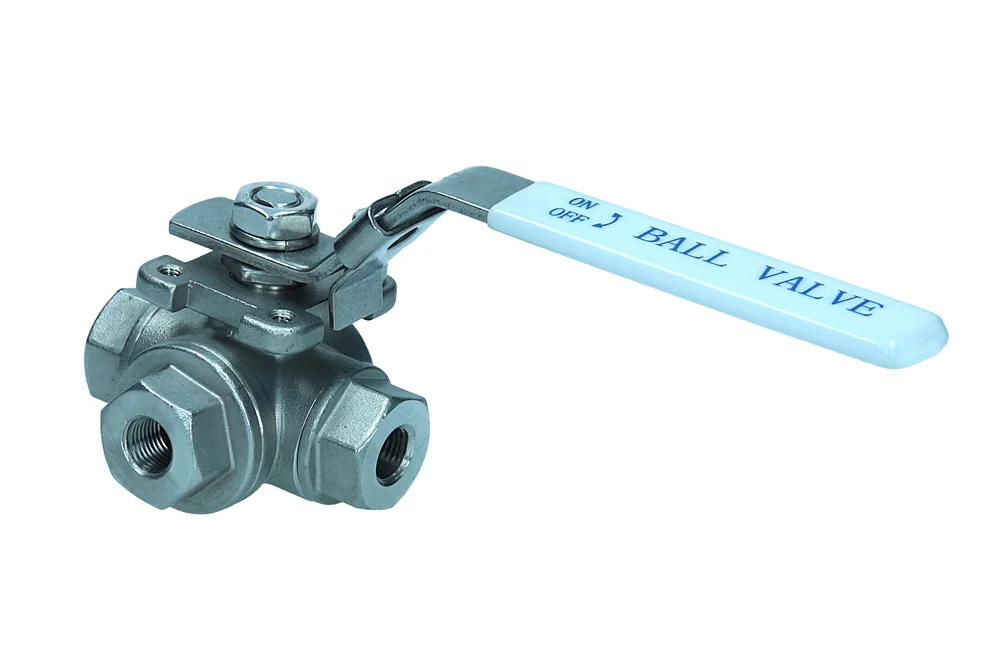

Three-Way Ball Valve “T”, Model 2057N

Additional information

Material

SS – stainless steel

The universal three-way ball valve type 2057N in “T” configuration is a robust and versatile solution designed for demanding industrial applications. Manufactured with a durable CF8M stainless steel body and ball, complemented by an AISI 304 stainless steel lever, it ensures long-lasting performance even under intensive operating conditions. The valve features high-quality PTFE/RTFE ball sealing and PTFE stem sealing, providing excellent tightness and resistance to a wide range of media. Suitable for air, gases, water, steam, chemicals, and petrochemical products, it guarantees reliability when the chemical compatibility of materials is observed. Equipped with a lever lock and ISO 5211 flange, it allows safe operation and easy integration into automated systems. The BSP threaded connection ensures straightforward installation, while the wide operating temperature range from -20°C to +200°C makes it adaptable to various environments. Fully compliant with the PED Directive 2014/68/EU, this valve combines safety, efficiency, and durability, offering an optimal choice for industries seeking precision flow control and operational reliability.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
HT-2057N-08T3-way ball valve type 2057N "T" BSP 1/4", AISI 316-63In stock
Enquiry
HT-2057N-08TXBall valve type 2057N-X three-way "T" G thread BSP 1/4", AISI 316-63In stock
Enquiry
HT-2057N-10T3-way ball valve type 2057N "T" BSP 3/8", AISI 316-63In stock
Enquiry
HT-2057N-10TXBall valve type 2057N-X three-way "T" BSP 3/8", AISI 316-63In stock
Enquiry
HT-2057N-15T3-way ball valve type 2057N "T" BSP 1/2", AISI 316-63In stock
Enquiry
HT-2057N-15TXBall valve type 2057N-X three-way "T" BSP 1/2", AISI 316-63In stock
Enquiry
HT-2057N-20T3-way ball valve type 2057N "T" BSP 3/4", AISI 316-63In stock
Enquiry
HT-2057N-20TXBall valve type 2057N-X three-way "T" BSP thread 3/4", AISI 316-63In stock
Enquiry
HT-2057N-25T3-way ball valve type 2057N "T" BSP 1", AISI 316-63In stock
Enquiry
HT-2057N-25TX3-way ball valve type 2057N-X "T" BSP 1", AISI 316-63In stock
Enquiry
HT-2057N-32T3-way ball valve type 2057N "T" BSP 1.1/4", AISI 316-63In stock
Enquiry
HT-2057N-32TXBall valve type 2057N-X three-way "T" BSP thread 1.1/4", AISI 316-63In stock
Enquiry
HT-2057N-40T3-way ball valve type 2057N "T" BSP 1.1/2", AISI 316-63In stock
Enquiry
HT-2057N-40TX3-way ball valve type 2057N-X "T" BSP 1.1/2", AISI 316-63In stock
Enquiry
HT-2057N-50T3-way ball valve type 2057N "T" BSP 2", AISI 316-63In stock
Enquiry
HT-2057N-50TX3-way ball valve type 2057N-X "T" BSP 2", AISI 316-63In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

The universal three-way ball valve type 2057N in “T” configuration is a robust and versatile solution designed for demanding industrial applications. Manufactured with a durable CF8M stainless steel body and ball, complemented by an AISI 304 stainless steel lever, it ensures long-lasting performance even under intensive operating conditions. The valve features high-quality PTFE/RTFE ball sealing and PTFE stem sealing, providing excellent tightness and resistance to a wide range of media. Suitable for air, gases, water, steam, chemicals, and petrochemical products, it guarantees reliability when the chemical compatibility of materials is observed. Equipped with a lever lock and ISO 5211 flange, it allows safe operation and easy integration into automated systems. The BSP threaded connection ensures straightforward installation, while the wide operating temperature range from -20°C to +200°C makes it adaptable to various environments. Fully compliant with the PED Directive 2014/68/EU, this valve combines safety, efficiency, and durability, offering an optimal choice for industries seeking precision flow control and operational reliability.

Additional information

Material

SS – stainless steel

Do you need a larger quantity of products or a bespoke quote?
