Is the EST-L tool holder arbor compatible with standard hydraulic hose machining equipment and what machine modifications are required?

The EST-L tool holder arbor is designed specifically for machining the outer rubber layer of hydraulic hoses, providing extended cutting length and a robust, hardened-steel construction for durability and precision. Compatibility with standard hydraulic hose machining equipment depends on the spindle/taper and clamping interface of the existing machines. If your equipment accepts arbors with the same mounting interface and supports the extended length, EST-L can be integrated without major issues. Typical machine considerations and possible modifications: - Spindle/clamp interface: Ensure the arbor’s shank/taper matches your machine’s chuck or collet; an adapter or custom taper may be required if dimensions differ. - Reach and clearance: The extended length may require checking for sufficient spindle overhang, guarding, and toolpath clearance; repositioning the hose fixture or adjusting guards could be necessary. - Balance and runout: Extended arbors can amplify imbalance; dynamic/static balancing and verification of runout may be needed to maintain precision. - Rigidity and fixturing: Confirm machine stiffness and hose clamping provide adequate support for longer-tool operation; upgrading fixturing or adding supports can reduce vibration. - Speed/drive limits: Verify that cutting speeds and feeds recommended for EST-L are compatible with your machine’s motor and transmission. In summary, EST-L can be compatible with standard hydraulic hose machining equipment if mounting, clearance, balance, rigidity, and speed parameters are checked and minor adaptations (adapters, re-fixturing, balancing) are made as needed.

What safety precautions should be followed when using the EST-L tool holder arbor for extended cutting on hydraulic hose outer rubber layers?

When using the EST-L tool holder arbor for extended cutting of hydraulic hose outer rubber layers, follow these safety precautions: - Inspect before use: check EST-L for cracks, wear, or damage; ensure secure mounting and correct tool shank seating. - Use correct tooling and speeds: match cutter type, diameter, feed and spindle speed to EST-L specifications and hose material to avoid chatter, heat buildup, and tool failure. - Secure workpiece: firmly clamp hoses and fixtures to prevent movement or ejection during extended cuts. - Balance and runout control: verify tooling assembly is properly balanced and runout is minimal to prevent vibration and premature wear of EST-L. - Proper coolant/ventilation: provide appropriate lubrication or air flow to reduce heat and rubber melting; avoid fluids incompatible with hose materials. - Personal protective equipment: wear safety glasses or face shield, cut-resistant gloves, hearing protection, and protective clothing. - Chip and debris management: clear rubber swarf frequently and use guards or extraction to prevent buildup and machine jams. - Avoid excessive axial load: do not force the EST-L; use steady feeds to prevent bending or fracture of the arbor. - Follow machine limits: do not exceed spindle speed, torque, or depth-of-cut recommended for the EST-L and the machine tool. - Lockout/tagout and training: perform maintenance with power isolated; ensure operators are trained in safe setup and emergency stop procedures. - Regular maintenance: schedule inspections, cleaning, and replacement of worn components to maintain EST-L performance and safety.

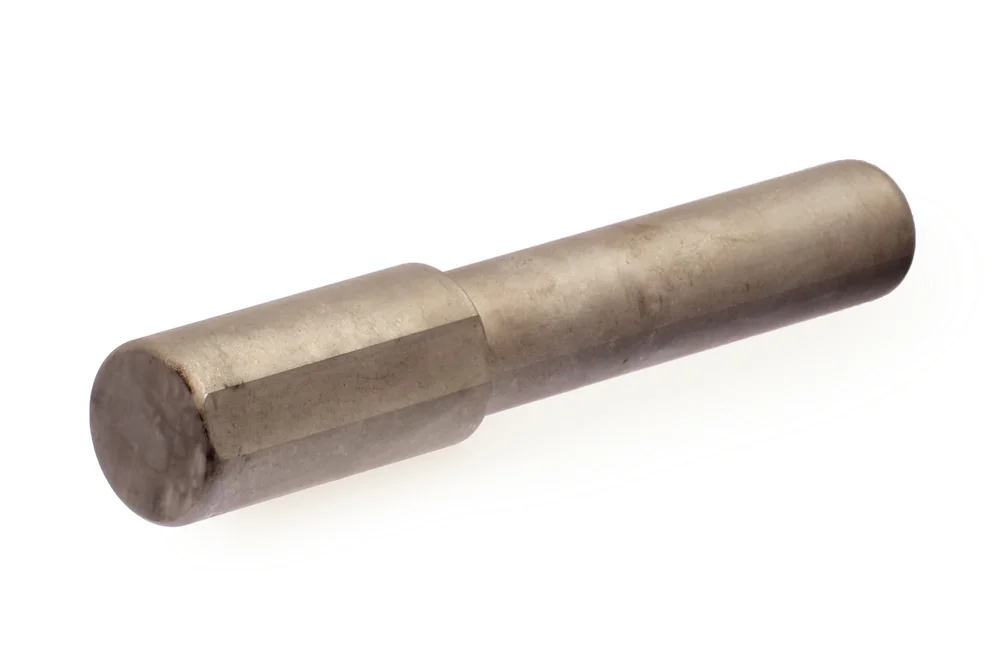

EST-L tool holder arbor

Additional information

Material	CS – steel (cast iron)

The EST-L tool shank is a precision-engineered solution created specifically for machining the outer rubber layer of hydraulic hoses where extended cutting length is essential. Manufactured from high-quality hardened steel, it ensures exceptional durability, resistance to wear, and consistent performance even under demanding production conditions. Its robust construction allows for precise, clean, and efficient material removal, significantly improving workflow efficiency and reducing downtime. Designed for professionals who require reliability and accuracy, the EST-L tool shank delivers long-lasting performance, making it an indispensable component in modern hose processing operations. By combining strength, precision, and extended reach, it supports higher productivity and ensures superior results in every application.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HY-9022-00-16	EST 1 pin	-	-	In stock	Enquiry
HY-9022-01-20	EST 1.1/4 spindle	-	-	In stock	Enquiry
HY-9022-01-24	EST 1.1/2" shaft	-	-	In stock	Enquiry
HY-9022-01-32	EST 2 pin	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The EST-L tool shank is a precision-engineered solution created specifically for machining the outer rubber layer of hydraulic hoses where extended cutting length is essential. Manufactured from high-quality hardened steel, it ensures exceptional durability, resistance to wear, and consistent performance even under demanding production conditions. Its robust construction allows for precise, clean, and efficient material removal, significantly improving workflow efficiency and reducing downtime. Designed for professionals who require reliability and accuracy, the EST-L tool shank delivers long-lasting performance, making it an indispensable component in modern hose processing operations. By combining strength, precision, and extended reach, it supports higher productivity and ensures superior results in every application.
