What maintenance schedule is recommended for the TRALE Gear Pump Ø50.8 mm Plate, Left Rotation, Flanged Connections to ensure reliable operation at max pressure?

For reliable operation of the TRALE Gear Pump Ø50.8 mm Plate, Left Rotation, Flanged Connections at maximum working pressure, follow this maintenance schedule: - Daily/Per shift - Check for external leaks at flange connections, seals and fittings; tighten or replace as needed. - Monitor operating temperature and noise; abnormal rise or unusual noise may indicate internal wear or cavitation. - Verify oil level in the hydraulic reservoir and top up with specified oil (L‑HM45 or equivalent) as required. - Weekly - Inspect flange bolts and mounting hardware for tightness and signs of fatigue or misalignment; retorque to manufacturer’s values. - Check suction and return lines for restrictions, air ingress and secure routing to prevent cavitation. - Monthly (or every 250 operating hours) - Sample and inspect hydraulic oil for contamination and viscosity (optimal 30–45 cSt); change oil sooner if contamination or viscosity drift is detected. - Inspect NBR seals and external gaskets for hardening, cracking or extrusion; replace if any deterioration. - Quarterly (or every 1000 operating hours) - Replace suction and pressure line strainers/filters; inspect breather and replace if clogged. - Inspect pump mounting plate and rear cover (cast iron) and aluminum body for signs of corrosion, cracks or deformation. - Check shaft coupling alignment and wear; correct misalignment and replace worn couplings. - Annually (or every 2000–4000 operating hours, depending on duty) - Perform a full pump inspection: disassemble for internal inspection of gears, bearings and clearances; replace worn components. - Replace NBR seals as preventative maintenance. - Clean and flush the hydraulic system if contamination levels are high. Additional recommendations - Always operate within specified viscosity (10–600 cSt; ideal 30–45 cSt) and temperature ranges (fluid: -20°C to +90°C; ambient: -20°C to +60°C). - Use clean L‑HM45 or equivalent hydraulic oil and maintain recommended filtration (ISO 4406 target cleanliness appropriate to system; commonly 18/16/13 or better for high‑pressure systems). - Record maintenance actions and operating hours; increase inspection frequency under continuous high‑pressure duty. Following this schedule will help ensure the TRALE Gear Pump Ø50.8 mm Plate, Left Rotation, Flanged Connections maintains reliable operation at max pressure.

How should I choose the correct hydraulic oil and viscosity for the TRALE Gear Pump Ø50.8 mm Plate, Left Rotation, Flanged Connections to ensure optimal performance and longevity?

To choose the correct hydraulic oil and viscosity for the TRALE Gear Pump Ø50.8 mm Plate, Left Rotation, Flanged Connections and ensure optimal performance and longevity, follow these guidelines: - Recommended oil type: use a high-quality anti-wear hydraulic oil (L-HM45 specification or equivalent). These oils protect gears and seals (NBR) and are compatible with the pump’s materials. - Viscosity range: the pump accepts fluids from 10 cSt to 600 cSt. For best efficiency, select oil with viscosity between 30–45 cSt at operating temperature. - Temperature considerations: choose oil whose viscosity at operating temperature stays within the optimal window. For systems operating near extremes, use oil formulated for the pump’s medium temperature range (-20°C to +90°C) and ambient range (-20°C to +60°C). - Contamination control: maintain ISO cleanliness (typically 18/16/13 or better depending on system) and use proper filtration to prevent wear and clogging. - Additives and compatibility: avoid oils containing additives that attack NBR seals. Confirm compatibility if switching oil types. - Maintenance: monitor oil condition (viscosity, contamination, oxidation) and change oil/filter per operating hours or earlier if degraded. Following these points will help the TRALE Gear Pump Ø50.8 mm Plate, Left Rotation, Flanged Connections deliver stable performance, reduced wear, and extended service life.

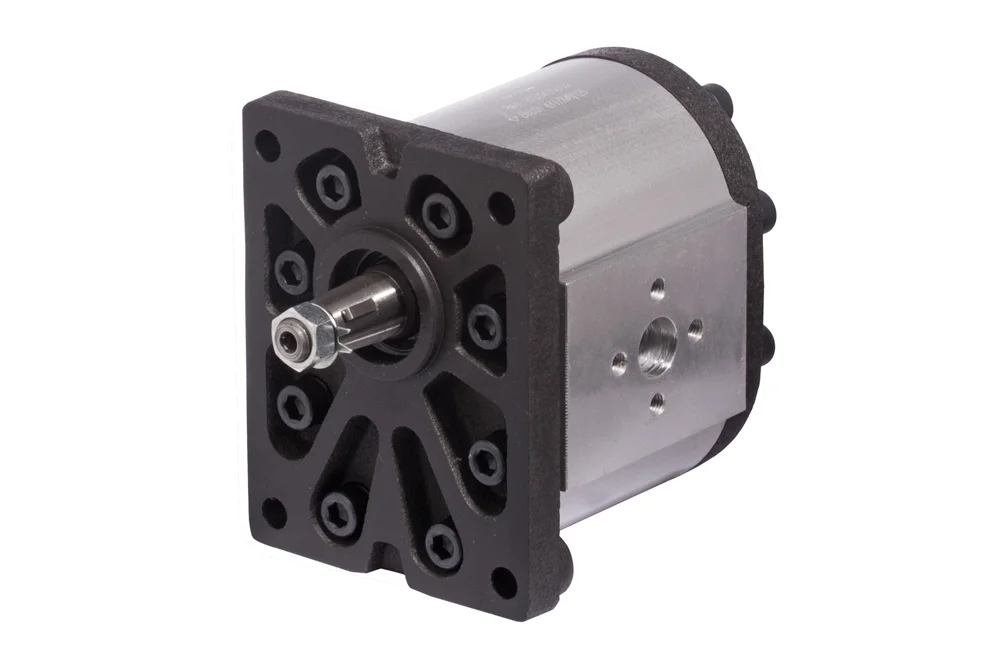

Pump displacement toothed, Ø50.8 mm plate, left direction revolutions, the connection flange, TRALE

All products, Hydraulic pumps/

Additional information

Maximum operating temperature [°C]	90
Minimum operating temperature [°C]	-20

Pump displacement toothed (hydraulic), TRALE, o meshing external, Intended for use in systems hydraulic machine and equipment. Connections: flange. direction revolutions: left. given maximum pressure working refers to use continuous. Material: body – aluminum, plate mounting and Cover rear – cast iron. sealing: NBR. medium: oil hydraulic type L-HM45 or replacement. viscosity liquids: from 10 cSt to 600 cSt (recommended 30 ÷ 45). Operating temperature: od -20°C up to +90°C (medium), od -20°C up to +60°C (ambient).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TL-BTD3220I02	Gear pump group 3, 22 cm³/rev, plate 50.8 mm, flange connections	-	200	In stock	Enquiry
TL-BTD3260I02	Gear pump group 3, 26 cm³/rev, plate 50.8 mm, flange connections	-	200	In stock	Enquiry
TL-BTD3280I02	Gear pump group 3, 28 cm³/rev, plate 50.8 mm, flange connections	-	200	In stock	Enquiry
TL-BTD3340I02	Gear pump group 3, 34 cm³/rev, plate 50.8 mm, flange connections	-	200	In stock	Enquiry
TL-BTD3390I02	Gear pump group 3, 39 cm³/rev, plate 50.8 mm, flange connections	-	200	In stock	Enquiry
TL-BTD3430I02	Gear pump group 3, 43 cm³/rev, plate 50.8 mm, flange connections	-	200	In stock	Enquiry
TL-BTD3460I02	Gear pump group 3, 46 cm³/rev, plate 50.8 mm, flange connections	-	200	In stock	Enquiry
TL-BTD3510I02	Gear pump group 3, 51 cm³/rev, plate 50.8 mm, flange connections	-	200	In stock	Enquiry
TL-BTD3550I02	Gear pump group 3, 55 cm³/rev, plate 50.8 mm, flange connections	-	200	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Pump displacement toothed (hydraulic), TRALE, o meshing external, Intended for use in systems hydraulic machine and equipment. Connections: flange. direction revolutions: left. given maximum pressure working refers to use continuous. Material: body – aluminum, plate mounting and Cover rear – cast iron. sealing: NBR. medium: oil hydraulic type L-HM45 or replacement. viscosity liquids: from 10 cSt to 600 cSt (recommended 30 ÷ 45). Operating temperature: od -20°C up to +90°C (medium), od -20°C up to +60°C (ambient).
