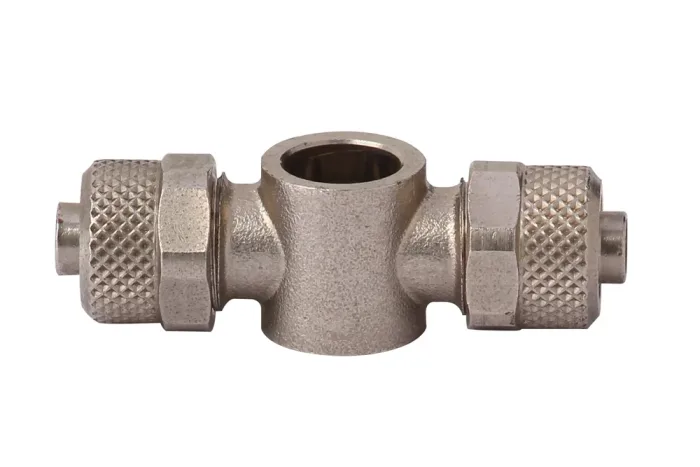

Tee Body for BANJO Twist-On Fitting, Type D6
The Banjo tee body connector with D6 type socket connections is a reliable solution for secure and flexible hose installations, perfectly suited for soft plastic hoses. Its design enables quick assembly by simply sliding the hose onto the fitting end and fastening it with a nut, ensuring a tight and durable seal. The connector’s construction allows for precise positioning in the required orientation, offering versatility and convenience in various applications. Compatible with through bolts D7, D8, D9, and D10, it provides a wide range of installation options. Manufactured from high-quality nickel-plated brass, the connector guarantees excellent resistance to wear, corrosion, and mechanical stress, making it ideal for demanding environments. With a working pressure of up to 18 bar, it delivers dependable performance and long-lasting durability, ensuring efficiency and safety in both industrial and technical systems.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| MW-2406001 | Banjo tee connector D6, socket type, 2 x hose 6/4, for BSP screw 1/8 | - | 18 | |
| MW-2406002 | Banjo D6 tee fitting, socket type, 2 x hose 6/4, for BSP 1/4 screw. | - | 18 | |
| MW-2406004 | Banjo D6 tee fitting, socket type, 2 x hose 8/6, for BSP screw 1/8 | - | 18 | |
| MW-2406005 | BANJO D6 tee fitting, socket type, 2 x hose 8/6, for BSP 1/4 screw | - | 18 | |
| MW-2406006 | Banjo tee connector D6, socket type, 2 x hose 8/6, for BSP screw 3/8 | - | 18 | |
| MW-2406008 | Banjo tee connector D6, socket type, 2 x hose 10/8, for BSP screw 1/4 | - | 18 | |
| MW-2406009 | BANJO D6 tee fitting, socket type, 2 x hose 10/8, for BSP 3/8 screw | - | 18 | |
| MW-2406010 | BANJO D6 tee fitting, socket type, 2 x hose 10/8, for BSP 1/2 screw | - | 18 | |
| MW-2406011 | Banjo D6 tee fitting, socket type, 2 x hose 12/10, for BSP 1/2 screw | - | 18 |
The Banjo tee body connector with D6 type socket connections is a reliable solution for secure and flexible hose installations, perfectly suited for soft plastic hoses. Its design enables quick assembly by simply sliding the hose onto the fitting end and fastening it with a nut, ensuring a tight and durable seal. The connector’s construction allows for precise positioning in the required orientation, offering versatility and convenience in various applications. Compatible with through bolts D7, D8, D9, and D10, it provides a wide range of installation options. Manufactured from high-quality nickel-plated brass, the connector guarantees excellent resistance to wear, corrosion, and mechanical stress, making it ideal for demanding environments. With a working pressure of up to 18 bar, it delivers dependable performance and long-lasting durability, ensuring efficiency and safety in both industrial and technical systems.
Additional information
| Material | B – brass (bronze) |
|---|
Additional information
| Material | B – brass (bronze) |
|---|
