Can the OR logic hydraulic valve be mounted in any position and still maintain reliable pneumatic control and sealing?

Yes. The OR logic hydraulic valve can be mounted in any position and still maintain reliable pneumatic control and sealing. Its design — durable plastic body, lightweight aluminum spindle and high-quality NBR seals — is specified to ensure long-lasting performance and effective sealing regardless of orientation. The component’s pneumatic actuation and reset are self-contained, and rated operating parameters (0–8 bar working pressure, 1.5–8 bar control pressure, operating temperature −10°C to +60°C) together with the stated nominal flow (100 Nl/min at 6 bar, 1 bar pressure drop) support stable operation in varied installations. Integrated 4 mm plug couplings further simplify secure connections that are not orientation-dependent. For best results, follow manufacturer installation and maintenance guidelines and verify that system conditions (contamination, vibration, mounting surface) do not compromise seal life or actuator movement.

Is the OR logic hydraulic valve compatible with different tubing sizes or only for the integrated 4 mm plug couplings?

The OR logic hydraulic valve is specified with integrated plug couplings for 4 mm tubing, which are intended to simplify installation and ensure quick, secure connections. The provided description does not mention alternative fittings or adapters for other tubing sizes. Therefore, out of the box the OR logic hydraulic valve is compatible with 4 mm tubing via its integrated plug couplings; compatibility with other tubing sizes would require separate adapters or custom fittings not covered in the given specification—confirm availability of such accessories with the manufacturer or supplier before integration.

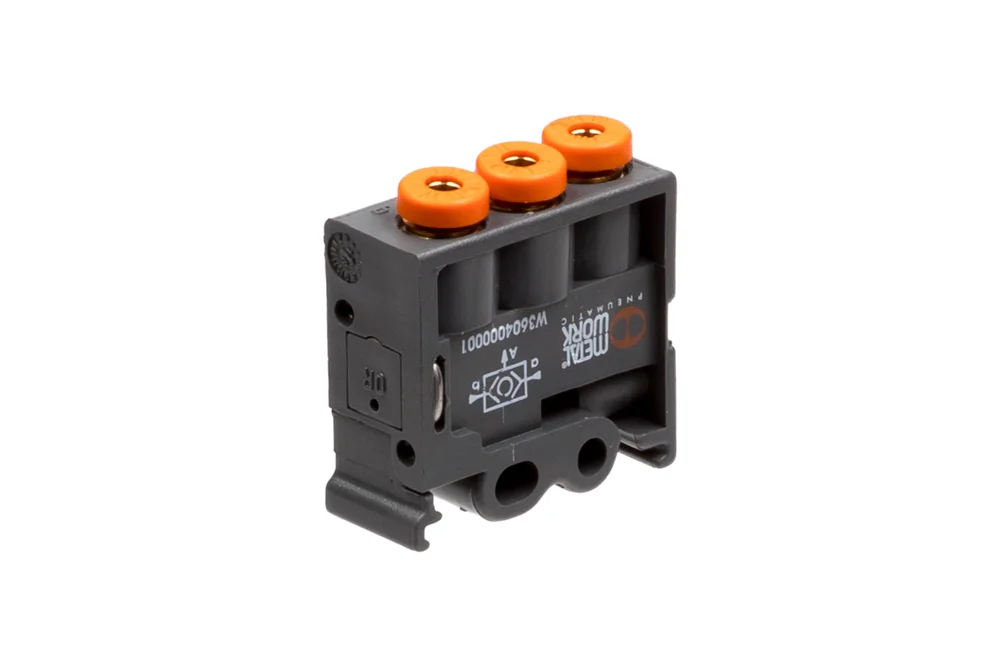

OR logic hydraulic valve

Accessories for pneumatic fittings, All products/

Additional information

Material	P – material (plastic)

The logical OR element is a compact and efficient pneumatic component designed for versatile use in automation systems, offering reliable control through compressed air with both actuation and reset functions powered pneumatically. Its robust construction combines a durable plastic body, lightweight aluminum spindle, and high-quality NBR sealing, ensuring long-lasting performance even under demanding conditions. With a nominal flow rate of 100 Nl/min at 6 bar and a pressure drop of 1 bar, it guarantees stable operation and optimal airflow management. The integrated plug couplings for 4 mm tubing simplify installation and allow quick, secure connections, while the ability to mount in any position provides maximum flexibility in system design. Engineered for a wide range of applications, it operates within a temperature span of -10°C to +60°C and supports working pressures from 0 to 8 bar, with control pressure between 1.5 and 8 bar. This makes it an ideal solution for industries seeking reliable, space-saving, and easy-to-integrate pneumatic logic components that enhance efficiency and system performance.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
MW-W3604000001	Valve - OR logic element (sum)	-	-	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The logical OR element is a compact and efficient pneumatic component designed for versatile use in automation systems, offering reliable control through compressed air with both actuation and reset functions powered pneumatically. Its robust construction combines a durable plastic body, lightweight aluminum spindle, and high-quality NBR sealing, ensuring long-lasting performance even under demanding conditions. With a nominal flow rate of 100 Nl/min at 6 bar and a pressure drop of 1 bar, it guarantees stable operation and optimal airflow management. The integrated plug couplings for 4 mm tubing simplify installation and allow quick, secure connections, while the ability to mount in any position provides maximum flexibility in system design. Engineered for a wide range of applications, it operates within a temperature span of -10°C to +60°C and supports working pressures from 0 to 8 bar, with control pressure between 1.5 and 8 bar. This makes it an ideal solution for industries seeking reliable, space-saving, and easy-to-integrate pneumatic logic components that enhance efficiency and system performance.
