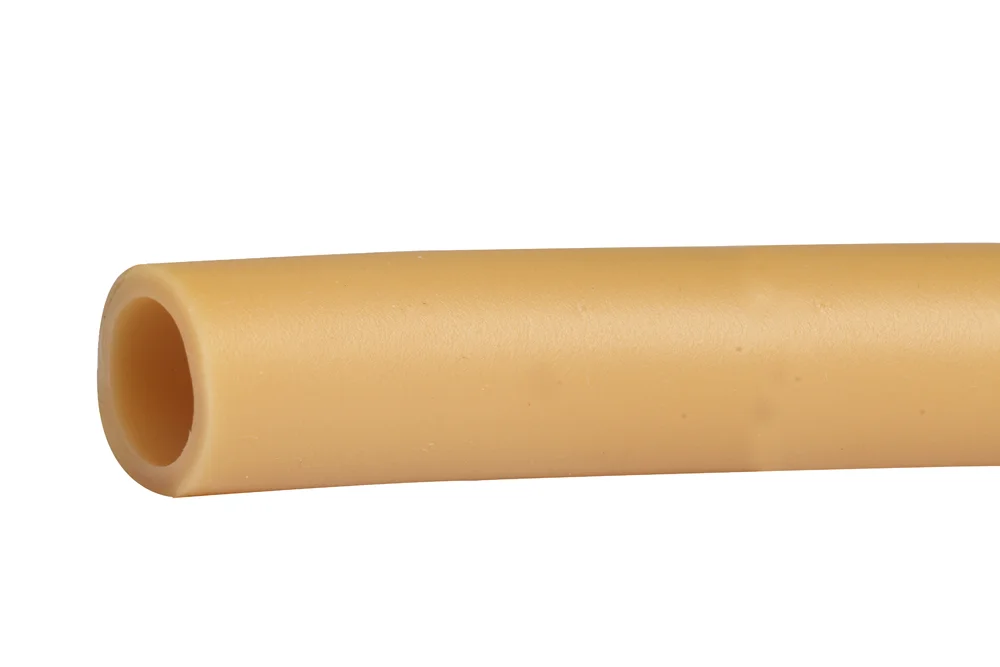

A universal, soft, flexible and stretchable hose with light brown rubber natural VERSILON™ GA

Additional information

Material

NR – natural rubber

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-30

Vacuum resistance

no

Standard length [m]

25, 50

Known and proven od lat, light and soft hose with rubber natural o light brown color. easy for installation thanks to its softness (hardness 40° Shore – A), flexible and flexibility (Maximum extensibility 500%). has close properties for latex. resistant to abrasion, o sound resistance to acids and bases. used for liquids and gases, for many applications industrial e.g. dispensing and dosing soaps and detergents, products alcoholic and milk, laboratories. Sterilization steam 30 min. (1 bar, 141°C) or oxide ethylene. length full roll hose 50 m (od diameter internal 7 mm – 25 m). The given working pressure is determined relative to the bursting pressure at a safety factor of 1:5. Material: rubber natural (NR). Operating temperature: od -35°C up to +70°C (120°C for moist hot). temperature brittleness: -40°C. Hardness: 40° Shore (A). Density: 0.98 g/cm³. Note: The product is packaged in the Tubes International Clean Zone (CLEAN ROOM) in compliance with rigorous standards. Return of the product after opening the package is not possible.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
VE-702030Hose VERSILON GA 2x4 mm20.5In stock0 €
Enquiry
VE-702075Hose VERSILON GA 3x5 mm30.46In stock0 €
Enquiry
VE-702195Hose VERSILON GA 4x6 mm40.36In stock0 €
Enquiry
VE-702210Hose VERSILON GA 4x7 mm40.54In stock0 €
Enquiry
VE-702315Hose VERSILON GA 5x8 mm50.46In stock0 €
Enquiry
VE-702345Hose VERSILON GA 5x10 mm50.63In stock0 €
Enquiry
VE-702405Hose VERSILON GA 6x9 mm60.37In stock0 €
Enquiry
VE-702420Hose VERSILON GA 6x10 mm60.45In stock0 €
Enquiry
VE-702465Hose VERSILON GA 7x10 mm60.31In stock0 €
Enquiry
VE-702480Hose VERSILON GA 7x11 mm60.27In stock0 €
Enquiry
VE-702525Hose VERSILON GA 8x12 mm80.37In stock0 €
Enquiry
VE-702555Hose VERSILON GA 8x16 mm80.61In stock0 €
Enquiry
VE-702585Hose VERSILON GA 10x14 mm100.37In stock0 €
Enquiry
VE-702600Hose VERSILON GA 10x15 mm100.34In stock0 €
Enquiry
VE-702645Hose VERSILON GA 18x24 mm180.32In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Known and proven od lat, light and soft hose with rubber natural o light brown color. easy for installation thanks to its softness (hardness 40° Shore – A), flexible and flexibility (Maximum extensibility 500%). has close properties for latex. resistant to abrasion, o sound resistance to acids and bases. used for liquids and gases, for many applications industrial e.g. dispensing and dosing soaps and detergents, products alcoholic and milk, laboratories. Sterilization steam 30 min. (1 bar, 141°C) or oxide ethylene. length full roll hose 50 m (od diameter internal 7 mm – 25 m). The given working pressure is determined relative to the bursting pressure at a safety factor of 1:5. Material: rubber natural (NR). Operating temperature: od -35°C up to +70°C (120°C for moist hot). temperature brittleness: -40°C. Hardness: 40° Shore (A). Density: 0.98 g/cm³. Note: The product is packaged in the Tubes International Clean Zone (CLEAN ROOM) in compliance with rigorous standards. Return of the product after opening the package is not possible.

Additional information

Material

NR – natural rubber

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-30

Vacuum resistance

no

Standard length [m]

25, 50
