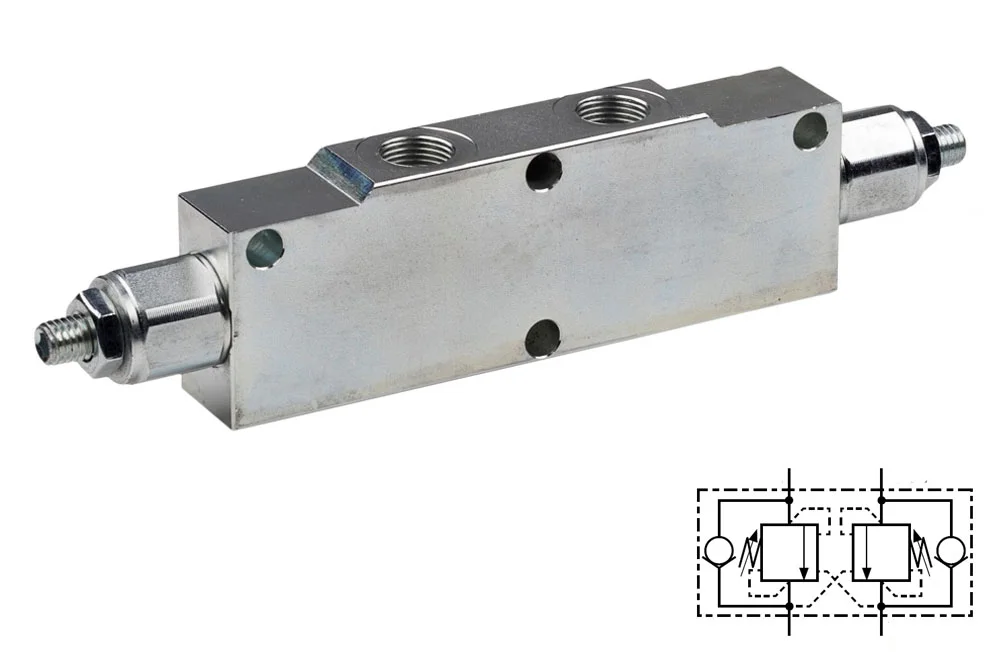

Valve braking, type VODE
Valves VODE used in systems hydraulic as element controlling and locking movement actuator double-acting operation. enable gentle descent actuator under load. value pressure opening sets using bolts (setting a wrench Allen, lock a lock nut). value setting must be o 30% greater, than value pressure resulting with loads receiver. standard pressure opening valves check is 0.5 bar. valves equipped are in holes assembly. Material: steel galvanized (body), steel galvanized (valve). sealing: NBR. Operating temperature: od -20°C up to +100°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Valves VODE used in systems hydraulic as element controlling and locking movement actuator double-acting operation. enable gentle descent actuator under load. value pressure opening sets using bolts (setting a wrench Allen, lock a lock nut). value setting must be o 30% greater, than value pressure resulting with loads receiver. standard pressure opening valves check is 0.5 bar. valves equipped are in holes assembly. Material: steel galvanized (body), steel galvanized (valve). sealing: NBR. Operating temperature: od -20°C up to +100°C.
Additional information
| Material | CS – steel (cast iron) |
|---|
