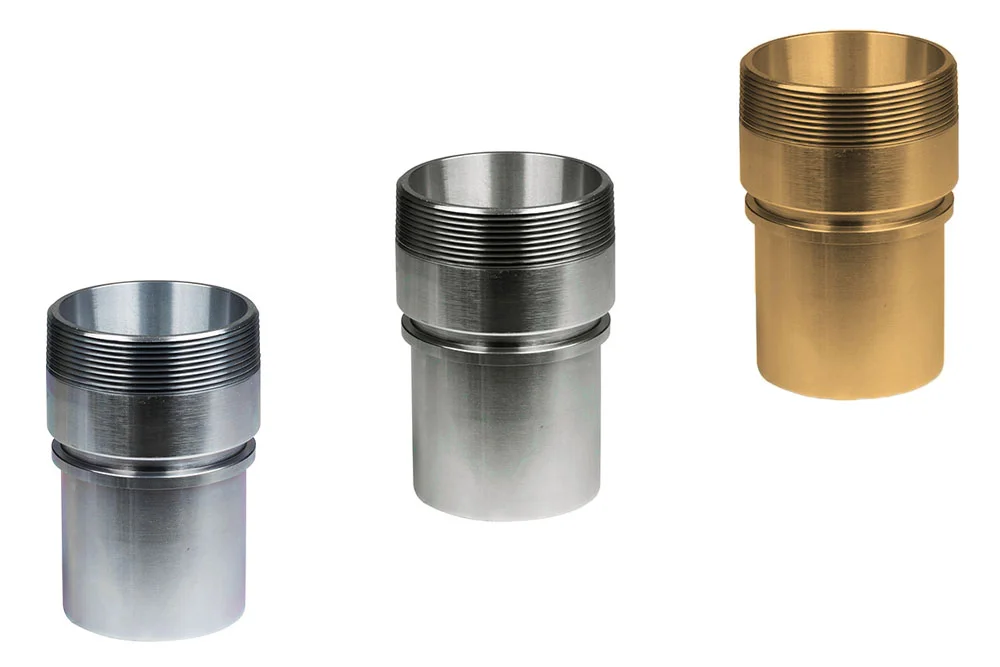

BSPT/NPT Male Threaded Coupling with Smooth Tail and Lock for Shell Clamp, Type VSL
The VSL connector with external tapered thread BSPT or NPT is a reliable solution designed for industrial hose systems, ensuring safe and efficient transfer of diverse media such as liquefied gases, petrochemical products, and chemical substances. Its smooth tail with lock guarantees secure hose attachment, while compatibility with EN 14420-3 / DIN 2817 shell clamps (RS 636… and RS 637…) or crimping sleeves provides flexibility in installation. Engineered for a working pressure of up to 25 bar, the connector is available in durable materials including brass (MS), stainless steel AISI 316 (SS), and galvanized steel (ST), with the option of an advanced E-CTFE fluoropolymer coating for enhanced resistance to aggressive chemicals. Sealing is achieved directly on the thread with Teflon tape, with the additional option of flat sealing on the BSPT face surface, ensuring leak-free performance. Designed to operate within a temperature range of -20°C to +65°C in compliance with EN-14420, this connector combines robust construction with versatile application, making it an ideal choice for demanding industrial environments where safety, reliability, and long service life are essential.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
The VSL connector with external tapered thread BSPT or NPT is a reliable solution designed for industrial hose systems, ensuring safe and efficient transfer of diverse media such as liquefied gases, petrochemical products, and chemical substances. Its smooth tail with lock guarantees secure hose attachment, while compatibility with EN 14420-3 / DIN 2817 shell clamps (RS 636… and RS 637…) or crimping sleeves provides flexibility in installation. Engineered for a working pressure of up to 25 bar, the connector is available in durable materials including brass (MS), stainless steel AISI 316 (SS), and galvanized steel (ST), with the option of an advanced E-CTFE fluoropolymer coating for enhanced resistance to aggressive chemicals. Sealing is achieved directly on the thread with Teflon tape, with the additional option of flat sealing on the BSPT face surface, ensuring leak-free performance. Designed to operate within a temperature range of -20°C to +65°C in compliance with EN-14420, this connector combines robust construction with versatile application, making it an ideal choice for demanding industrial environments where safety, reliability, and long service life are essential.
Additional information
| Material | CS – steel (cast iron) |
|---|
