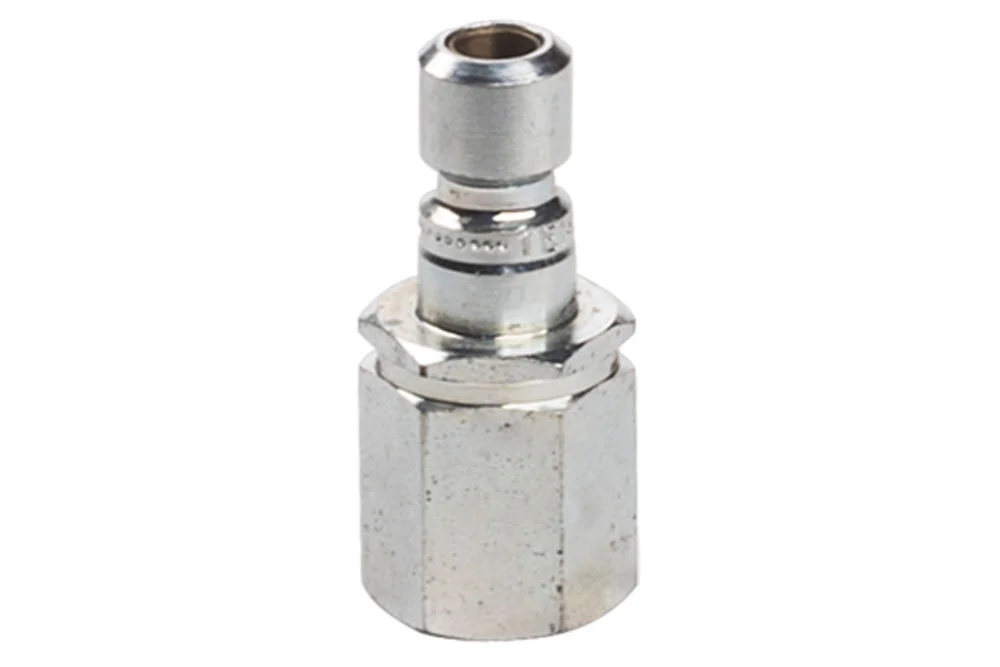

Plug quick coupling DN5.8 with valve, with thread, brass nickel-plated, series 1300N

Additional information

Material

SS – stainless steel

Universal plug quick coupling with valve DN5.8, with thread internal BSP. double shut-off to the standard TEMA 1300N, popular on the Scandinavian market, intended primarily for liquids, to prevent leakage during disconnecting (for water, steam, oils and fuels). is characterized high resistance corrosion and high flow at small sizes external. fittings series 1300N not should connect with the series 1300. Material: nickel-plated and chrome-plated brass / steel AISI 316. flow capacity: 13.5 l/min (Δp = 1 bar, Kv = 0.81 – water), 760 l/min (Pe=6 bar, Δp=0.5 bar – air). Working pressure: 50 bar (for steam 10 bar). sealing: NBR / Viton. Operating temperature: od -20°C up to +100°C (NBR), od -25°C up to +200°C (Viton).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
RE-1300SBIW13EVXQuick coupling plug 1300N, with a valve, 1/4" BSP female, AISI 316, Viton-50In stock0 €
Enquiry
RE-1300SBIW13MPCQuick coupling plug 1300N, with a valve, 1/4" BSP female, brass chrome-plated, NBR-50In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Universal plug quick coupling with valve DN5.8, with thread internal BSP. double shut-off to the standard TEMA 1300N, popular on the Scandinavian market, intended primarily for liquids, to prevent leakage during disconnecting (for water, steam, oils and fuels). is characterized high resistance corrosion and high flow at small sizes external. fittings series 1300N not should connect with the series 1300. Material: nickel-plated and chrome-plated brass / steel AISI 316. flow capacity: 13.5 l/min (Δp = 1 bar, Kv = 0.81 – water), 760 l/min (Pe=6 bar, Δp=0.5 bar – air). Working pressure: 50 bar (for steam 10 bar). sealing: NBR / Viton. Operating temperature: od -20°C up to +100°C (NBR), od -25°C up to +200°C (Viton).

Additional information

Material

SS – stainless steel

Do you need a larger quantity of products or a bespoke quote?
