Is the Thermoplastic CNG Hose with Aramid and Synthetic Braid 15R compliant with ISO 15500-17 and suitable for refueling at up to 350 bar?

Yes. The Thermoplastic CNG Hose with Aramid and Synthetic Braid 15R is designed in compliance with ISO 15500-17 and is suitable for refueling at up to 350 bar. It features a conductive polyamide inner layer for low gas permeation, one or two aramid braids plus a synthetic braid for reinforcement, and a red micro-perforated polyurethane outer layer for abrasion and weather resistance. The hose also comes in a dual version with an integrated venting hose, operates from -40°C to +70°C, and is engineered for safe, reliable professional CNG refueling systems.

Does the Thermoplastic CNG Hose with Aramid and Synthetic Braid 15R include an integrated venting hose for added safety in dual-version configurations?

Yes. The Thermoplastic CNG Hose with Aramid and Synthetic Braid 15R is available in a dual version that includes an integrated venting hose for enhanced safety and performance, compliant with ISO 15500-17.

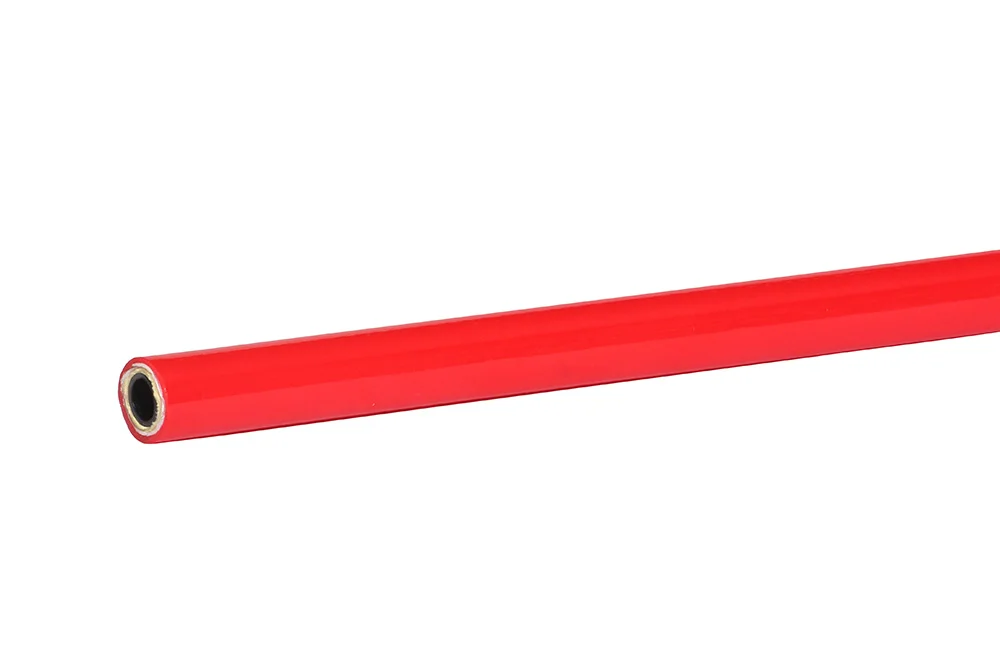

Hose thermoplastic with an aramid braid and synthetic 15R CNG

All products, Thermoplastic hoses/

Additional information

Material	PA – polyamide
Maximum operating temperature [°C]	70
Minimum operating temperature [°C]	-40
Vacuum resistance	check

Light, flexible hose intended for gas natural (CNG – Compressed Natural Gas). used for filling tanks vehicles driven CNG. Available version double with tube venting. standards: ISO 15500-17. Inner layer: black polyamide conductive. Reinforcement: one or two aramid braids + a synthetic braid. Outer layer: red micro-perforated polyurethane. Working pressure: 350 bar. Operating temperature: od -40°C up to +70°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TO-15RCNG-06	Hose thermoplastic 15RCNG 1/4" (red)	6	350	In stock	Enquiry
TO-15RCNG-10	Hose thermoplastic 15RCNG 3/8" (red)	10	350	In stock	Enquiry
TO-15RCNG-13	Hose thermoplastic 15RCNG 1/2" (red)	12	350	In stock	Enquiry
TO-15RCNG-19	Hose thermoplastic 15RCNG 3/4" (red)	20	350	In stock	Enquiry
TO-15RCNG-25	Hose thermoplastic 15RCNG 1" (red)	25	350	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Light, flexible hose intended for gas natural (CNG – Compressed Natural Gas). used for filling tanks vehicles driven CNG. Available version double with tube venting. standards: ISO 15500-17. Inner layer: black polyamide conductive. Reinforcement: one or two aramid braids + a synthetic braid. Outer layer: red micro-perforated polyurethane. Working pressure: 350 bar. Operating temperature: od -40°C up to +70°C.
