Can the DN7.4 Eurostandard Quick-Connect Socket with Valve, Threaded Nickel-Plated Brass, 26KE Series be used with non-Rectus plugs or only with Rectus type 25KA?

DN7.4 Eurostandard Quick-Connect Socket with Valve, Threaded Nickel-Plated Brass, 26KE Series: The coupling is recommended to be used exclusively with hardened steel Rectus plugs type 25KA for optimal compatibility and durability. While mechanical fit with non-Rectus plugs is not explicitly ruled out in the description, safe, pressure-free disconnection and guaranteed performance in accordance with ISO 4414 and EN 983 are ensured only when used with the specified Rectus 25KA plugs. To maintain rated flow, pressure performance and operator safety, use Rectus type 25KA.

Is the DN7.4 Eurostandard Quick-Connect Socket with Valve, Threaded Nickel-Plated Brass, 26KE Series suitable for use with pneumatic tools if connected through an adapter?

DN7.4 Eurostandard Quick-Connect Socket with Valve, Threaded Nickel-Plated Brass, 26KE Series Format is not intended for direct connection to pneumatic tools. It is engineered for use in compressed air systems with either external or internal BSP threads and provides safe, pressure-free disconnection per ISO 4414 and EN 983. While its flow capacity (1300 l/min at 6 bar), working pressure (up to 12 bar), materials (nickel-plated brass, brass valve, AISI 301/420 springs/locking elements) and NBR seals make it robust and suitable for demanding air applications, the manufacturer explicitly recommends exclusive use with hardened steel Rectus plugs type 25KA for optimal compatibility and durability. Connecting pneumatic tools through an adapter could be possible only if the adapter and the tool connection replicate the intended plug type and meet the same safety, pressure, sealing and material requirements; otherwise it would be contrary to the product guidance and could compromise safety and performance.

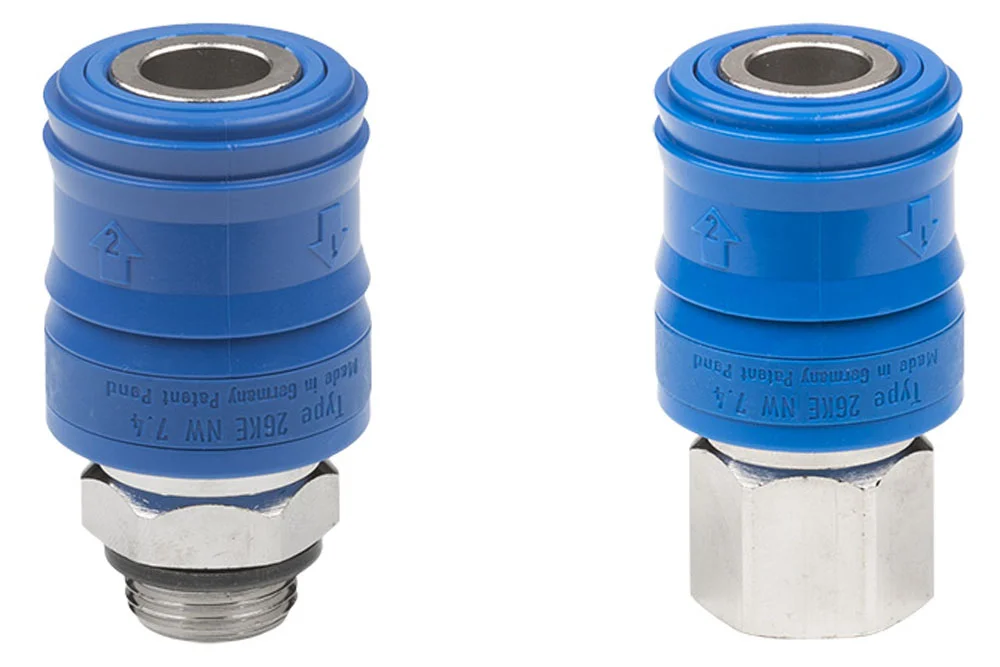

DN7.4 Eurostandard Quick-Connect Socket with Valve, Threaded Nickel-Plated Brass, 26KE Series

All products, General-purpose low-pressure quick couplings/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	120, 2

The quick coupling socket with Eurostandard DN7.4 profile and integrated valve is a reliable solution for pneumatic systems, offering secure and efficient connections with either external or internal BSP threads. Specially engineered to guarantee safe, pressure-free disconnection in compliance with ISO 4414 and EN 983, it ensures maximum operator safety and system protection. For optimal performance, it is recommended to use exclusively with hardened steel Rectus plugs type 25KA, which provide perfect compatibility and durability. With an impressive flow capacity of 1300 l/min at 6 bar and a working pressure of up to 12 bar, this coupling is ideal for demanding air applications. The robust construction combines nickel-plated brass for the body and threaded parts, brass for the valve, and high-grade stainless steels AISI 301 and AISI 420 for springs and locking elements, ensuring long-lasting resistance to wear and corrosion. Equipped with NBR sealing and designed for temperatures ranging from -20°C to +60°C, the socket delivers consistent performance even in challenging environments. Not intended for direct connection to pneumatic tools, it is the perfect choice for users seeking reliability, safety, and efficiency in compressed air systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RE-26KEAW13MPN	Quick coupling socket 26KE DN7.4, GZ 1/4" BSP, nickel-plated brass, NBR	-	12	In stock	Enquiry
RE-26KEAW17MPN	Quick coupling socket 26KE DN7.4, GZ 3/8" BSP, nickel-plated brass, NBR	-	12	In stock	Enquiry
RE-26KEAW21MPN	Quick coupling socket 26KE DN7.4, GZ 1/2" BSP, nickel-plated brass, NBR	-	12	In stock	Enquiry
RE-26KEIW13MPN	Quick coupling socket 26KE DN7.4, 1/4" BSP thread, nickel-plated brass, NBR	-	12	In stock	Enquiry
RE-26KEIW17MPN	Quick coupling socket 26KE DN7.4, GW 3/8" BSP, nickel-plated brass, NBR	-	12	In stock	Enquiry
RE-26KEIW21MPN	Quick coupling socket 26KE DN7.4, 1/2" BSP thread, nickel-plated brass, NBR	-	12	In stock	Enquiry
