What maintenance schedule is recommended for the Pneumatic 5/2 Monostable Diverter Valve, Series 70 to ensure reliable performance up to 10 bar?

Recommended maintenance schedule for Pneumatic 5/2 Monostable Diverter Valve, Series 70 to ensure reliable performance up to 10 bar: - Daily / Before each shift - Visual check for external damage, loose fittings, and obvious air leaks. - Confirm correct mounting and actuator connections. - Weekly - Check for audible leaks at seals and connections using soapy water or leak detector. - Operate valve through full cycle to verify smooth switching and absence of sticking. - Monthly - Inspect supply and exhaust ports for contamination or moisture; drain condensate from upstream filters/regulators. - Verify pneumatic supply pressure is stable and within specified range (≤10 bar). - Check mounting hardware and connection block for integrity and tightness. - Quarterly (or every 3 months) - Clean external surfaces; remove dust and debris from slider area and end cover. - Inspect NBR seals for signs of wear, hardening, or cracking; replace seals if any degradation is found. - Lubricate moving parts if recommended by manufacturer (use compatible pneumatic lubricants; avoid over-lubrication). - Annually (or every 12 months) - Perform a full functional test under working pressure (up to 10 bar): cycle the valve for extended duration to detect intermittent faults. - Disassemble for internal inspection: check nickel-plated aluminum slider, bore, and internal seats for wear, scoring or corrosion. Replace worn components. - Replace seals and any small wear parts as preventive maintenance. - Verify temperature exposure history remains within -10°C to +60°C; assess any thermal damage. - After any adverse event - If the valve has been exposed to pressure spikes, contamination, impact, or temperatures outside spec, perform immediate inspection and functional testing; replace components as needed. Additional notes - Keep compressed air clean and dry (use filtration to ISO 8573-1 recommended levels) to prolong seal and slider life. - Keep a maintenance log recording inspections, parts replaced, and cycle counts to plan preventive replacements before failure.

How does the Pneumatic 5/2 Monostable Diverter Valve, Series 70 handle particulate or moisture contamination in supply air, and what filtration level is recommended?

Pneumatic 5/2 Monostable Diverter Valve, Series 70 tolerates only limited particulate and moisture in the supply air: its aluminum body, nickel‑plated slider and NBR seals provide good durability and tightness but are not a substitute for clean, dry air. To protect internal sliding parts and sealing surfaces and to ensure reliable switching at up to 10 bar and across -10°C to +60°C, use a fitted air preparation unit (filter‑regulator‑lubricator). Recommended filtration: 5 µm to remove most particulates; for harsher or continuous‑duty environments, use 1–3 µm. Include a water separator and a coalescing filter to control liquid and aerosols, and keep condensate drains serviced. Regular maintenance and clean, dry supply air will maximize life and performance.

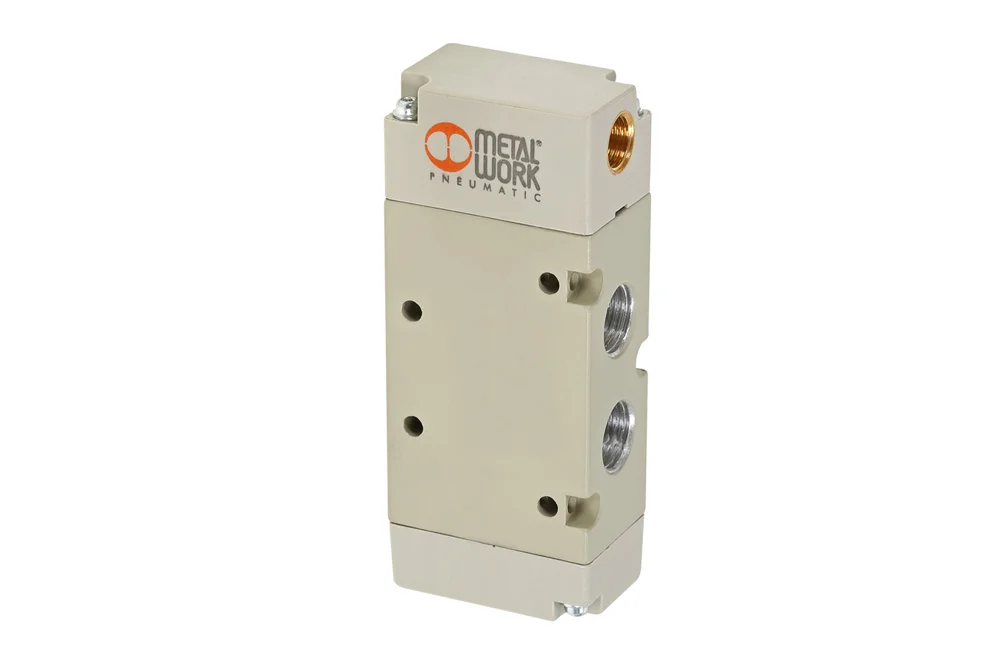

Pneumatic 5/2 Monostable Diverter Valve, Series 70

All products, Pneumatic valves/

Additional information

Maximum operating temperature [°C]	60
Minimum operating temperature [°C]	-10

The universal pneumatic control distribution valve is a versatile solution designed for precise and reliable actuator management in a wide range of industrial applications. With its 5/2 function, offering five ports and two positions, it ensures efficient airflow control and smooth switching between operating states. Its robust construction combines a durable aluminum body with a nickel-plated aluminum slider, NBR sealing for optimal tightness, and a lightweight yet resilient plastic end cover. Engineered for flexibility, the valve can be mounted inline, on walls, directly onto actuators, or integrated with a connection block, making it highly adaptable to different system layouts. Operating under pressures of up to 10 bar and within a temperature range of -10°C to +60°C, it guarantees stable performance even in demanding environments. This valve is an excellent choice for industries seeking reliability, easy installation, and long-lasting efficiency in pneumatic control systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-7010011100	Valve series 70 PNV 25 PNS OO	-	10	In stock	Enquiry
MW-7020011100	Valve series 70 PNV 35 PNS OO	-	10	In stock	Enquiry
MW-7030011100	Valve series 70 PNV 45 PNS OO	-	10	In stock	Enquiry
MW-7040011100	Valve series 70 PNV C5 PNS OO	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The universal pneumatic control distribution valve is a versatile solution designed for precise and reliable actuator management in a wide range of industrial applications. With its 5/2 function, offering five ports and two positions, it ensures efficient airflow control and smooth switching between operating states. Its robust construction combines a durable aluminum body with a nickel-plated aluminum slider, NBR sealing for optimal tightness, and a lightweight yet resilient plastic end cover. Engineered for flexibility, the valve can be mounted inline, on walls, directly onto actuators, or integrated with a connection block, making it highly adaptable to different system layouts. Operating under pressures of up to 10 bar and within a temperature range of -10°C to +60°C, it guarantees stable performance even in demanding environments. This valve is an excellent choice for industries seeking reliability, easy installation, and long-lasting efficiency in pneumatic control systems.
