Can the Mechanical Lever Pneumatic Diverter Valve with Tilt Roller, 5/2, Series 70 be used safely at temperatures below -10°C or above +60°C, and what precautions are required?

Mechanical Lever Pneumatic Diverter Valve with Tilt Roller, 5/2, Series 70 is specified to operate within a temperature range of -10°C to +60°C. Using it below -10°C or above +60°C is therefore outside the manufacturer’s rated limits and is not recommended without additional precautions. Risks of operating outside the range include seal hardening or leakage (NBR seals become rigid at low temperatures), lubricant thickening, altered material properties (plastics and nickel-plated/aluminum parts may become brittle or expand), slower or unreliable actuation, and potential loss of pressure rating or premature wear. Precautions if operation outside rated range is unavoidable: - Low temperatures ( +60°C): - Verify all materials (end cover plastic, seals, lubricants) are rated for higher temperatures; replace with high-temperature alternatives if available. - Provide thermal shielding or cooling and avoid direct exposure to heat sources. - Conduct high-temperature endurance testing to confirm performance and leak-tightness. - General: - Consult the manufacturer for approved modifications, alternative seal/lubricant options, and warranty implications. - Monitor the valve more frequently for leaks, wear, and performance changes if used outside spec. - Consider selecting a valve explicitly rated for the intended extreme temperature range for long-term safety and reliability.

Mechanical Lever Pneumatic Diverter Valve with Tilt Roller, 5/2, Series 70

All products, Pneumatic valves/

Additional information

Maximum operating temperature [°C]	60
Minimum operating temperature [°C]	-10

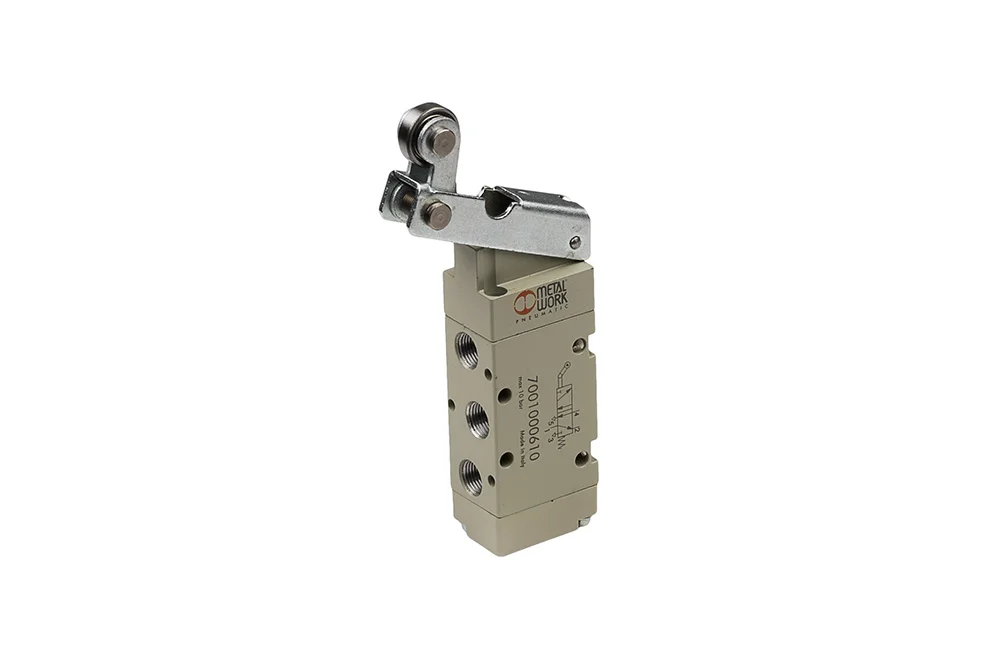

The universal 5/2 directional control valve with mechanical actuation and a lever equipped with a pivot roller is a compact and highly reliable solution for precise actuator control in pneumatic systems. Designed for maximum flexibility, it can be mounted in any position, ensuring seamless integration into various industrial applications. With a size of 1/8″, the valve features a robust aluminum body, a nickel-plated aluminum slider for enhanced durability, NBR sealing for secure tightness, and a lightweight plastic end cover. Engineered to operate under working pressures of up to 10 bar and within a temperature range from -10°C to +60°C, it guarantees consistent performance even in demanding environments. Its ergonomic lever mechanism allows smooth and efficient switching between two positions, making it an ideal choice for applications requiring reliability, efficiency, and long service life.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]	Enquiry	Catalogue
MW-7001000610	Valve series 70 MEV 25 URS OO	-	10

The universal 5/2 directional control valve with mechanical actuation and a lever equipped with a pivot roller is a compact and highly reliable solution for precise actuator control in pneumatic systems. Designed for maximum flexibility, it can be mounted in any position, ensuring seamless integration into various industrial applications. With a size of 1/8″, the valve features a robust aluminum body, a nickel-plated aluminum slider for enhanced durability, NBR sealing for secure tightness, and a lightweight plastic end cover. Engineered to operate under working pressures of up to 10 bar and within a temperature range from -10°C to +60°C, it guarantees consistent performance even in demanding environments. Its ergonomic lever mechanism allows smooth and efficient switching between two positions, making it an ideal choice for applications requiring reliability, efficiency, and long service life.
