Is the 90° JIC Elbow Fitting, Stainless Steel UNF Male, Type W compatible with standard JIC 37° female ports and UNF-threaded hoses?

Yes. The 90° JIC Elbow Fitting, Stainless Steel UNF Male, Type W is designed with an external 37° cone sealing surface and UNF male threads, so it is compatible with standard JIC 37° female ports and UNF‑threaded hoses that match the same UNF size. Its precision 37° sealing angle provides the proper metal‑to‑metal seal required by JIC connections, and the accurate UNF threading ensures secure mechanical engagement. Ensure the mating port or hose uses the same UNF thread size and conforms to JIC 37° specifications for pressure rating and thread tolerances to guarantee leak‑free, high‑pressure performance. Additional compatibility checks: thread size verification, torque/spec compliance, and material compatibility for your application.

Can the 90° JIC Elbow Fitting, Stainless Steel UNF Male, Type W withstand exposure to seawater and other corrosive environments without additional protective coatings?

Yes. The 90° JIC Elbow Fitting, Stainless Steel UNF Male, Type W, manufactured from premium AISI 316 stainless steel, is engineered for outstanding resistance to corrosion and aggressive media. AISI 316 offers excellent performance in seawater, marine and offshore environments and many chemical exposures without requiring additional protective coatings. Its high‑quality construction and corrosion‑resistant alloy make it suitable for use in marine, offshore, chemical, and heavy‑duty applications where exposure to saltwater and corrosive atmospheres occurs. Caveats: long‑term exposure to highly chlorinated or particularly aggressive chemicals, galvanic corrosion when connected to dissimilar metals, abrasive conditions, or localized crevice corrosion may still necessitate additional protections (e.g., sacrificial anodes, isolation fittings, or coatings) or material upgrades depending on specific service conditions. For critical or prolonged seawater service, confirm compatibility with your exact media, temperature, pressure and joint assembly to determine if extra protection is advisable.

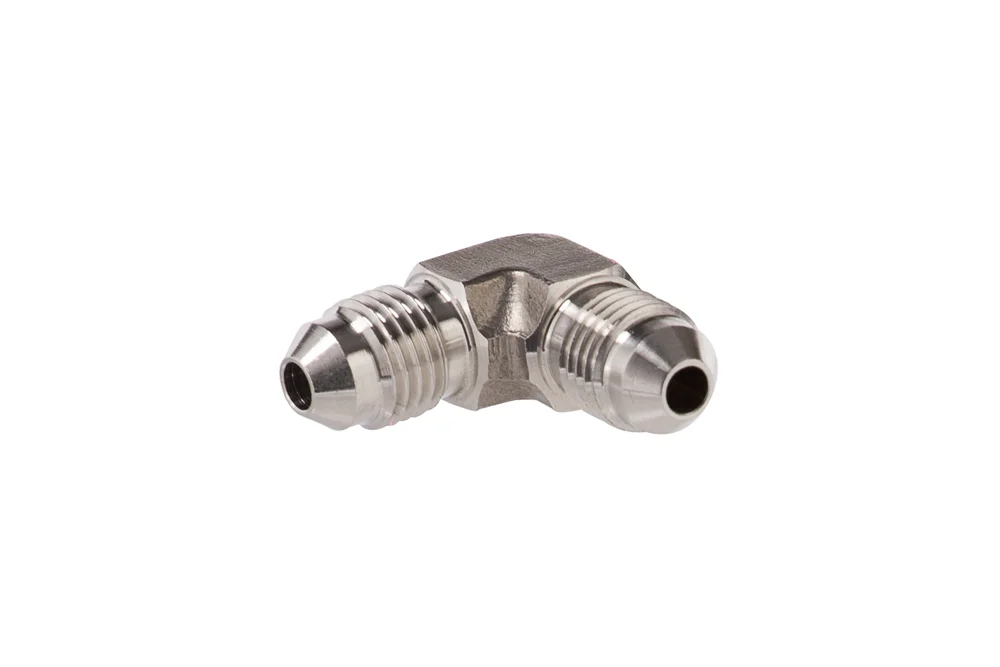

Coupling angled 90° JIC with a male UNF thread of steel stainless, type W

Additional information

Material	SS – stainless steel

Coupling angled 90° JIC 37° with thread external UNF (sealing on cone external 37°). Material: steel AISI 316.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HJ-W-07-SS	Fitting 90° male JIC 7/16"-20, AISI 316	-	450	In stock	Enquiry
HJ-W-08-SS	Fitting 90° male JIC 1/2"-20, AISI 316	-	450	In stock	Enquiry
HJ-W-09-SS	Fitting 90° male JIC 9/16"-18, AISI 316	-	350	In stock	Enquiry
HJ-W-12-SS	Fitting 90° male JIC 3/4"-16, AISI 316	-	350	In stock	Enquiry
HJ-W-14-SS	Fitting 90° male JIC 7/8"-14, AISI 316	-	350	In stock	Enquiry
HJ-W-17-SS	Fitting 90° male JIC 1.1/16"-12, AISI 316	-	350	In stock	Enquiry
HJ-W-21-SS	Fitting 90° male JIC 1.5/16"-12, AISI 316	-	290	In stock	Enquiry
HJ-W-26-SS	Fitting 90° male JIC 1.5/8"-12, AISI 316	-	240	In stock	Enquiry
HJ-W-30-SS	Fitting 90° male JIC 1.7/8"-12, AISI 316	-	240	In stock	Enquiry
