Is the 90° JIC Elbow Fitting with UNF Male Thread, Carbon Steel, Type W compatible with standard UNF hoses and adapters?

Yes. The 90° JIC Elbow Fitting with UNF Male Thread, Carbon Steel, Type W is compatible with standard UNF hoses and adapters. Its external UNF male thread and precise 37° JIC cone are designed for universal mating with components that follow UNF/JIC specifications, providing a secure metal‑to‑metal seal and leak‑free connection. The carbon steel construction with galvanized coating ensures durability and corrosion resistance in demanding hydraulic and pneumatic systems, making it suitable for industrial, agricultural, and mobile hydraulic applications where standard UNF fittings are used.

Can the 90° JIC Elbow Fitting with UNF Male Thread, Carbon Steel, Type W be used in high-vibration environments without additional support or reinforcement?

The 90° JIC Elbow Fitting with UNF Male Thread, Carbon Steel, Type W is built from high‑quality carbon steel with a galvanized coating and a precise 37° metal‑to‑metal cone seal, giving it strong resistance to corrosion, wear and mechanical stress. These features make it well suited to demanding hydraulic and pneumatic applications, including many industrial, agricultural and mobile‑hydraulic uses. However, in high‑vibration environments additional factors must be considered. While the robust construction and secure 37° seal provide good intrinsic resistance to loosening and leakage, vibration can still induce cyclic loads, fatigue and thread loosening over time. For critical or sustained high‑vibration applications you should therefore consider additional measures: use of proper torque values on installation, application of thread‑locking compounds or locking hardware, routing and clamping of hoses/lines to minimize movement, and periodic inspection. If vibration levels are extreme or shock is frequent, evaluate fittings rated specifically for vibration/fatigue service or consider reinforced assemblies. In summary: the fitting is durable and performs well, but for high‑vibration service additional support, correct installation practices and inspection are recommended rather than relying on the fitting alone.

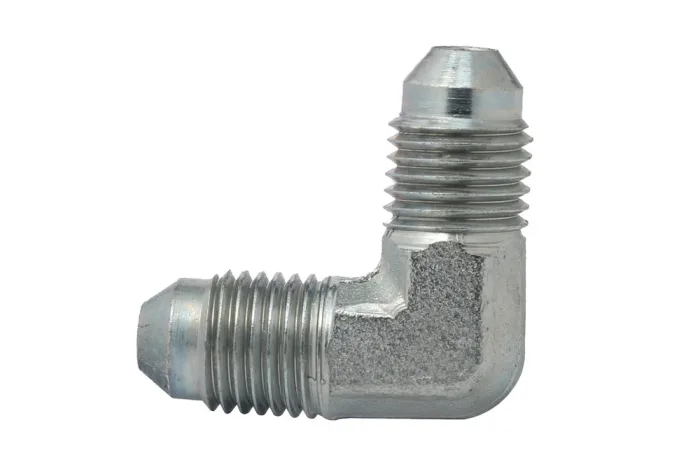

Coupling angled 90° JIC with a male UNF thread of carbon steel, type W

Additional information

Material	CS – steel (cast iron)

Coupling angled 90° JIC 37° with thread external UNF (sealing on a 37° cone). Material: steel carbon, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HJ-W-07	Fitting 90° male JIC 7/16"-20	-	450	In stock	Enquiry
HJ-W-08	Fitting 90° male JIC 1/2"-20	-	450	In stock	Enquiry
HJ-W-09	Fitting 90° male JIC 9/16"-18	-	350	In stock	Enquiry
HJ-W-12	Fitting 90° male JIC 3/4"-16	-	350	In stock	Enquiry
HJ-W-14	Fitting 90° male JIC 7/8"-14	-	350	In stock	Enquiry
HJ-W-17	Fitting 90° male JIC 1.1/16"-12	-	350	In stock	Enquiry
HJ-W-21	Fitting 90° male JIC 1.5/16"-12	-	290	In stock	Enquiry
HJ-W-26	Fitting 90° male JIC 1.5/8"-12	-	240	In stock	Enquiry
HJ-W-30	Fitting 90° male JIC 1.7/8"-12	-	240	In stock	Enquiry
