Is the T-Connector Acetal Copolymer suitable for use in vacuum systems and up to what pressure can it safely operate?

Yes. The T-Connector, Acetal Copolymer is suitable for use in vacuum systems. Made from high-quality POM (acetal copolymer), it offers durability and reliable sealing performance required for vacuum applications. It is rated for a working pressure of up to 10 bar (approx. 145 psi), so it can safely operate across typical vacuum-to-pressurized conditions within that limit.

Can the T-Connector Acetal Copolymer be used with aggressive chemicals or solvents, and what chemical compatibilities should be considered?

T-Connector Acetal Copolymer Format offers good mechanical strength, low friction and excellent wear resistance, but its chemical compatibility has limits. Acetal copolymer (POM) is generally resistant to many hydrocarbons, aliphatic solvents, oils, greases, ethanol and dilute acids/alkalis. It performs well in typical pneumatic, water and many hydraulic applications up to the stated 10 bar. However, avoid use with strong oxidizers (e.g., concentrated nitric or sulfuric acids), chlorinated hydrocarbons, ketones (especially acetone), strong aromatic solvents (e.g., toluene, xylene), and certain chlorinated solvents or halogenated hydrocarbons — these can swell, craze or dissolve POM and degrade mechanical properties. Prolonged exposure to hot acidic or basic environments can also reduce performance. Before use with aggressive chemicals or solvents, check concentration, temperature and exposure time; perform compatibility testing when in doubt. For critical or continuous-contact applications with aggressive media, consider alternative materials (e.g., PTFE, PVDF, stainless steel) or consult the manufacturer’s chemical compatibility chart.

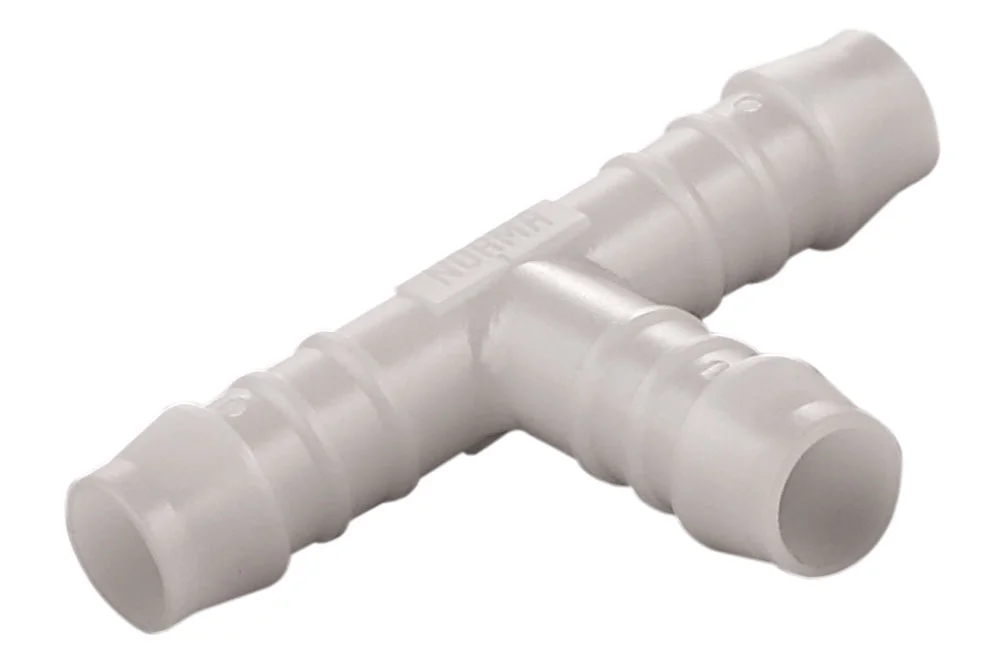

Connector Tee “T” for hose, copolymer acetal, type NA

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

Connector “T” for hose, type NA. intended for use in systems control, in installations for transport gases and liquids, in installations vacuum, etc. Working pressure: up to 10 bar. Material: copolymer acetal (POM).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NA-7600000003	Connector "T" DN2.5, hose 3 mm	3	10	In stock	Enquiry
NA-7600000004	Connector "T" DN2.7, hose 4 mm	4	10	In stock	Enquiry
NA-7600000005	Connector "T" DN3, hose 5 mm	5	10	In stock	Enquiry
NA-7600000006	Connector "T" DN4, hose 6 mm	6	10	In stock	Enquiry
NA-7600000007	Connector "T" DN5, hose 7 mm	6	10	In stock	Enquiry
NA-7600000008	Connector "T" DN5.6, hose 8 mm	8	10	In stock	Enquiry
NA-7600000010	Connector "T" DN7, hose 10 mm	10	10	In stock	Enquiry
NA-7600000012	Connector "T" DN8.6, hose 12 mm	12	10	In stock	Enquiry
NA-7600000013	Connector "T" DN8.6, hose 13 mm	12	10	In stock	Enquiry
NA-7600000014	Connector "T" DN10, hose 14 mm	14	10	In stock	Enquiry
NA-7600000015	Connector "T" DN11, hose 15 mm	16	10	In stock	Enquiry
NA-7600000016	Connector "T" DN12, hose 16 mm	16	10	In stock	Enquiry
NA-7600000019	Connector "T" DN15, hose 19 mm	20	10	In stock	Enquiry
NA-7600000025	Connector "T" DN21, hose 25 mm	25	10	In stock	Enquiry
