Is the ACQUA ADTK Hose for Supplying Cold and Hot Drinking Water safe for steam cleaning at +120°C for 30 minutes in open systems?

Yes. The ACQUA ADTK Hose for Supplying Cold and Hot Drinking Water is safe for steam cleaning at +120°C for 30 minutes in open systems. The product description explicitly states it is easy to maintain with steam cleaning up to +120°C (30 minutes in open systems) and lists certifications and materials (phthalate‑free technopolymer inner surface, food-contact and drinking-water approvals) that support its suitability for hygienic steam cleaning. For CIP methods, consult the manufacturer.

Can ACQUA ADTK Hose for Supplying Cold and Hot Drinking Water be used with CIP (clean-in-place) systems, and are there specific conditions or limitations?

Yes — ACQUA ADTK Hose for Supplying Cold and Hot Drinking Water can be used with CIP (clean-in-place) systems, but with specific conditions and limitations: - Compatibility: The hose’s smooth, mirror-like technopolymer inner surface resists biofilm and is designed to permit effective CIP cleaning. It is certified for drinking water and food contact, supporting hygienic CIP use. - Temperature and duration limits: CIP is permitted upon consultation; steam cleaning is explicitly allowed up to +120°C for 30 minutes in open systems. For closed CIP cycles, ensure temperature and exposure time do not exceed the hose’s rated continuous temperature (+90°C) unless manufacturer approval for higher short-term CIP parameters is obtained. - Chemical compatibility: Verify CIP detergents, caustics and sanitizers against the hose materials (technopolymer inner layer, synthetic braid, outer technopolymer). Some aggressive chemicals or concentrations may degrade materials or reduce service life. - Pressure and mechanical limits: CIP cycles often involve elevated pressures and flow rates. Ensure operating pressure during CIP remains within the hose’s working pressure (10–20 bar depending on diameter) and that fittings/assemblies are rated for CIP conditions. - Consultation and validation: Use CIP only after consulting the manufacturer/supplier to confirm allowed cycles, temperatures, chemicals and durations. Validate cleaning efficacy and monitor hose condition periodically for wear, swelling, or loss of integrity. In summary: ACQUA ADTK is suitable for CIP with manufacturer consultation and adherence to its temperature, pressure and chemical compatibility limits; steam cleaning up to +120°C (30 min, open systems) is explicitly supported.

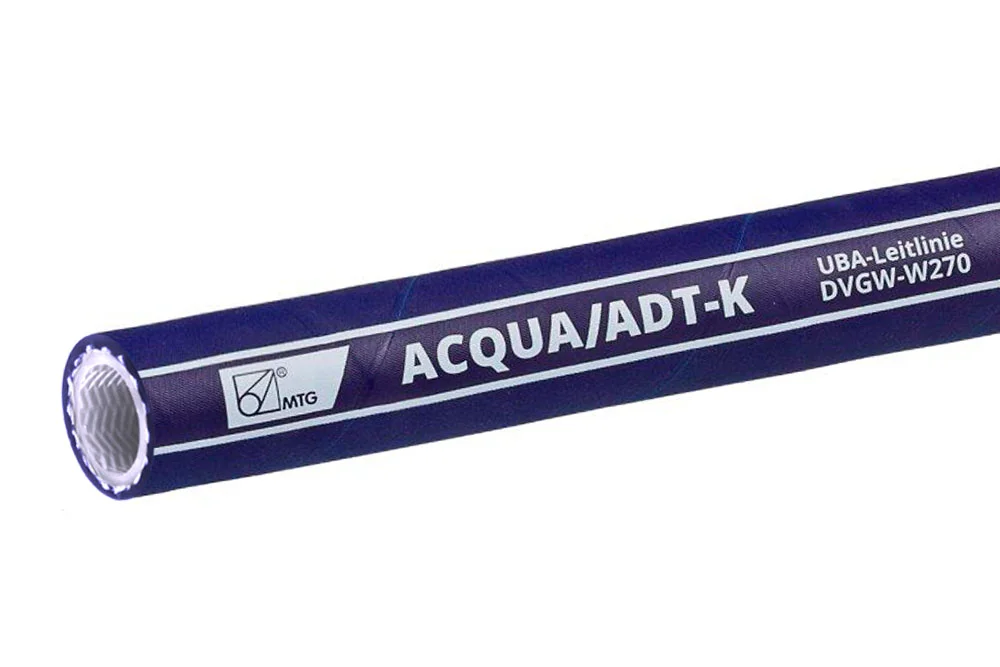

Hose for conveying water potable cold and hot – ACQUA ADTK

All products, Food and beverage hoses/

Additional information

Material	plastomer
Maximum operating temperature [°C]	90
Minimum operating temperature [°C]	-30
Vacuum resistance	no
Standard length [m]	40
Reinforcement	synthetic braid

Flexible hose delivery intended for conveying water potable cold (+23°C) and hot (+60°C). its white, mirror surface inner prevents formation biofilm on walls and is easy in maintaining purity. Not affects negatively on properties health, free of is phthalates, ADI (contaminants origin animal) and other substances hazardous subject restrictions in accordance with REACH. Not causes changes properties organoleptic water even in elevated temperatures. Layer outer resistant to abrasion, ozone and conditions atmospheric. cleaning: steam water o temp. +120°C through maximum 30 min. (in system open), other (CIP) in consultation with Tubes International. standards and requirements : 1) general: EC 2002/95 (RoHS), EC 1907/2006 (REACH). 2) approval for water potable: PZH B.BK.60110.0823.2022 (valid for 10.08.2025 r.), UBA-Leitlinie, KTW, DVGW W270, D.M.174. 3) industry food, contact with food: EC 1935/2004, EC 2023/2006 (GMP); EC 10/2011 (Layer inner). Inner layer: smooth o mirror surface technopolymer. Reinforcement: a synthetic braid. Outer layer: blue technopolymer. Working pressure: from 10 bar to 20 bar, depending on the diameter hose. Operating temperature: od -30°C up to +90°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MT-ACQUA-ADTK-013	Hose ACQUA ADT/K 13x20 mm	12	20	In stock	Enquiry
MT-ACQUA-ADTK-016	Hose ACQUA ADT/K 16x23 mm	16	16	In stock	Enquiry
MT-ACQUA-ADTK-019	Hose ACQUA ADT/K 19x27 mm	20	16	In stock	Enquiry
MT-ACQUA-ADTK-025	Hose ACQUA ADT/K 25x34 mm	25	14	In stock	Enquiry
MT-ACQUA-ADTK-032	Hose ACQUA ADT/K 32x44 mm	32	12	In stock	Enquiry
MT-ACQUA-ADTK-038	Hose ACQUA ADT/K 38x51 mm	38	10	In stock	Enquiry
MT-ACQUA-ADTK-045	Hose ACQUA ADT/K 45x59 mm	45	10	In stock	Enquiry
MT-ACQUA-ADTK-050	Hose ACQUA ADT/K 50x64 mm	50	10	In stock	Enquiry
MT-ACQUA-ADTK-065	Hose ACQUA ADT/K 65x81 mm	65	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Flexible hose delivery intended for conveying water potable cold (+23°C) and hot (+60°C). its white, mirror surface inner prevents formation biofilm on walls and is easy in maintaining purity. Not affects negatively on properties health, free of is phthalates, ADI (contaminants origin animal) and other substances hazardous subject restrictions in accordance with REACH. Not causes changes properties organoleptic water even in elevated temperatures. Layer outer resistant to abrasion, ozone and conditions atmospheric. cleaning: steam water o temp. +120°C through maximum 30 min. (in system open), other (CIP) in consultation with Tubes International. standards and requirements : 1) general: EC 2002/95 (RoHS), EC 1907/2006 (REACH). 2) approval for water potable: PZH B.BK.60110.0823.2022 (valid for 10.08.2025 r.), UBA-Leitlinie, KTW, DVGW W270, D.M.174. 3) industry food, contact with food: EC 1935/2004, EC 2023/2006 (GMP); EC 10/2011 (Layer inner). Inner layer: smooth o mirror surface technopolymer. Reinforcement: a synthetic braid. Outer layer: blue technopolymer. Working pressure: from 10 bar to 20 bar, depending on the diameter hose. Operating temperature: od -30°C up to +90°C.
