Adapter DN 9 quick coupling socket-plug, series TST 090, brass

Additional information

Material

B – brass (bronze)

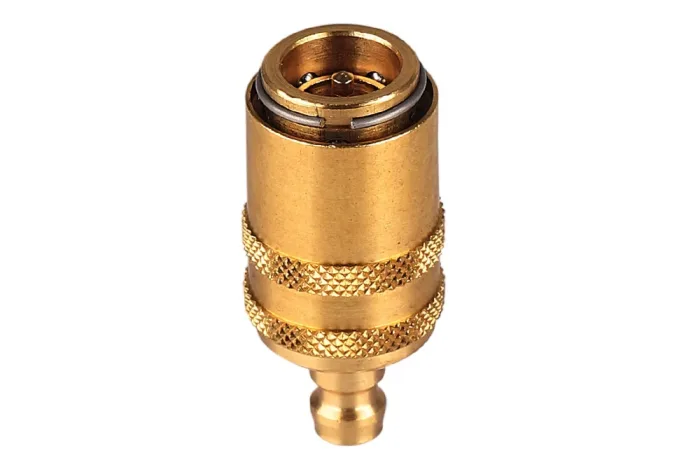

Adapter quick coupling, socket DN 9 – plug DN 6, with valve or without valve. used widely in industry for cooling moulds injection and casting parts with plastics, aluminum, brass and alloys zinc. can be used for water in cleaning machines, for hot oil, steam water. Diameter bore: 6 mm. Working pressure: 25 bar. Operating temperature: od -20°C up to +200°C (Viton). Material: brass (body socket, Connection, sleeve valve), steel stainless (spring, ring, balls).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
FW-CSK090-AU060Adapter socket 090 series / plug 060 series, with a valve-25In stock0 €
Enquiry
FW-SK090-AU060Adapter socket 090 series / plug 060 series, without valve-25In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Adapter quick coupling, socket DN 9 – plug DN 6, with valve or without valve. used widely in industry for cooling moulds injection and casting parts with plastics, aluminum, brass and alloys zinc. can be used for water in cleaning machines, for hot oil, steam water. Diameter bore: 6 mm. Working pressure: 25 bar. Operating temperature: od -20°C up to +200°C (Viton). Material: brass (body socket, Connection, sleeve valve), steel stainless (spring, ring, balls).

Additional information

Material

B – brass (bronze)

Do you need a larger quantity of products or a bespoke quote?
