Can the Brass Quick Coupling Socket DN9 with PUSH-ON Hose End, TST 090 Series handle hot oil and steam at 25 bar and up to 200°C with Viton seals?

Yes. The Brass Quick Coupling Socket DN9 with PUSH-ON Hose End, TST 090 Series can handle hot oil and steam at pressures up to 25 bar and temperatures up to 200°C when fitted with Viton seals. Its product description explicitly states suitability for hot oil and steam in high-temperature processes, a working pressure up to 25 bar, and an operating temperature range of -20°C to +200°C with Viton sealing. The brass body and stainless-steel internal components provide durable, corrosion-resistant construction appropriate for such demanding conditions.

Is the Brass Quick Coupling Socket DN9 with PUSH-ON Hose End, TST 090 Series suitable for use in cooling systems for aluminum and brass injection molds?

Yes. The Brass Quick Coupling Socket DN9 with PUSH-ON Hose End, TST 090 Series is suitable for cooling systems for aluminum and brass injection molds. The product description explicitly states it is designed for cooling systems for injection molds and die-cast components made of aluminum and brass. Its 9 mm flow diameter, working pressure up to 25 bar, and temperature resistance from -20°C to +200°C (with Viton sealing) make it capable of handling typical mold-cooling media and conditions. Construction in brass for the body, connection and valve sleeve, plus stainless steel internals (spring, ring, balls), provides corrosion and wear resistance appropriate for continuous cooling applications. Options with or without valve add flexibility for circuit design. Ensure compatibility with your specific cooling fluid, temperature range, and any required fittings or hose sizes before installation.

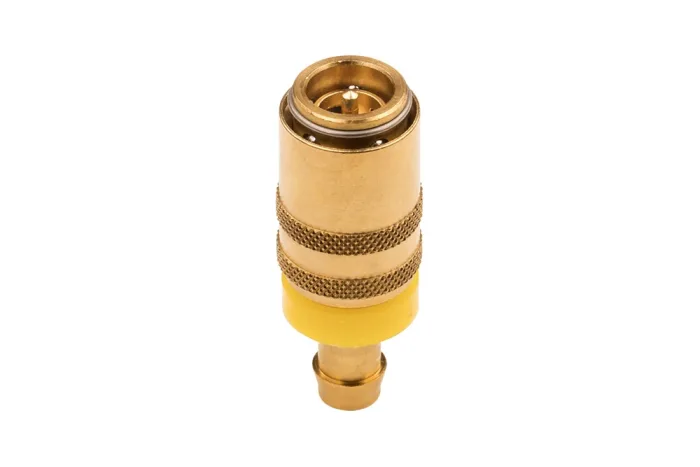

Brass Quick Coupling Socket DN9 with PUSH-ON Hose End, TST 090 Series

Additional information

Material	B – brass (bronze)

The DN 9 quick coupling socket with tail for PUSH-ON hose is a highly versatile solution designed for demanding industrial applications. Available with or without valve, it ensures reliable performance in cooling systems for injection molds and die-cast components made of plastics, aluminum, brass, or zinc alloys. Its robust construction also makes it suitable for use with water in cleaning equipment, as well as with hot oil and steam in high-temperature processes. Featuring a 9 mm flow diameter, the coupling delivers efficient fluid transfer under working pressures up to 25 bar and withstands extreme operating conditions ranging from -20°C to +200°C with viton sealing. The body, connection, and valve sleeve are made of durable brass, while critical internal components such as the spring, ring, and balls are crafted from stainless steel, ensuring long-lasting resistance to wear and corrosion. This combination of strength, precision, and adaptability makes the DN 9 quick coupling socket an ideal choice for industries seeking efficiency, safety, and reliability in fluid handling systems.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
FW-CSK090-FG10	DN 9 socket with end for PUSH-ON 10 mm hose, with valve	10	25
FW-CSK090-FG13	DN 9 socket with end for PUSH-ON hose 12.7 mm, with valve	12	25
FW-SK090-FG10	DN 9 socket with end for PUSH-ON 10 mm hose, without valve	10	25
FW-SK090-FG13	DN 9 socket with end for PUSH-ON hose 12.7 mm, without valve	12	25

The DN 9 quick coupling socket with tail for PUSH-ON hose is a highly versatile solution designed for demanding industrial applications. Available with or without valve, it ensures reliable performance in cooling systems for injection molds and die-cast components made of plastics, aluminum, brass, or zinc alloys. Its robust construction also makes it suitable for use with water in cleaning equipment, as well as with hot oil and steam in high-temperature processes. Featuring a 9 mm flow diameter, the coupling delivers efficient fluid transfer under working pressures up to 25 bar and withstands extreme operating conditions ranging from -20°C to +200°C with viton sealing. The body, connection, and valve sleeve are made of durable brass, while critical internal components such as the spring, ring, and balls are crafted from stainless steel, ensuring long-lasting resistance to wear and corrosion. This combination of strength, precision, and adaptability makes the DN 9 quick coupling socket an ideal choice for industries seeking efficiency, safety, and reliability in fluid handling systems.
