Is the TE-MG carbon steel adjustable screw tee connector compatible with both L (light) and S (heavy) series hydraulic systems?

Yes. The TE-MG carbon steel adjustable screw tee connector is compatible with both L (light) and S (heavy) series hydraulic systems. The product is explicitly available in both L and S variants, offering versions tailored to the different pressure and load requirements of light and heavy systems while maintaining the same 24° DIN 2353 socket, external metric threads, ISO-6149 type G sealing, and a 4:1 safety factor.

Does the TE-MG carbon steel adjustable screw tee connector require specific torque settings or tools for secure installation to maintain the 4:1 safety factor?

The TE-MG carbon steel adjustable screw tee connector does not specify unique torque values or special tools in the provided description. To maintain the stated 4:1 safety factor and ensure a reliable, leak-free seal, follow these general best practices: - Use the manufacturer’s recommended torque specification if available; if not, apply torque typical for DIN 2353 24° fittings of similar size and material (consult DIN 2353 tables or your engineering charts). - Employ calibrated torque wrenches to achieve consistent, repeatable tightening and avoid under- or over-tightening that could compromise the O-ring seal or thread integrity. - Ensure mating threads and sealing surfaces are clean, undamaged, and correctly lubricated where specified (do not use lubricants that degrade the O-ring). - For the ISO-6149 type G (O-ring with retaining ring) connection, verify correct O-ring condition and seating; hand-start threads to avoid cross-threading before final torque. - Follow any assembly sequence or alignment guidance for adjustable tees to prevent undue stress on the fitting once tightened. - If working at high pressures or critical systems, validate assembly by pressure testing and consider periodic retorque checks per maintenance schedule. If precise torque values are required for certification or critical applications, obtain the manufacturer’s installation data or DIN 2353 torque tables for the specific size and series (L or S).

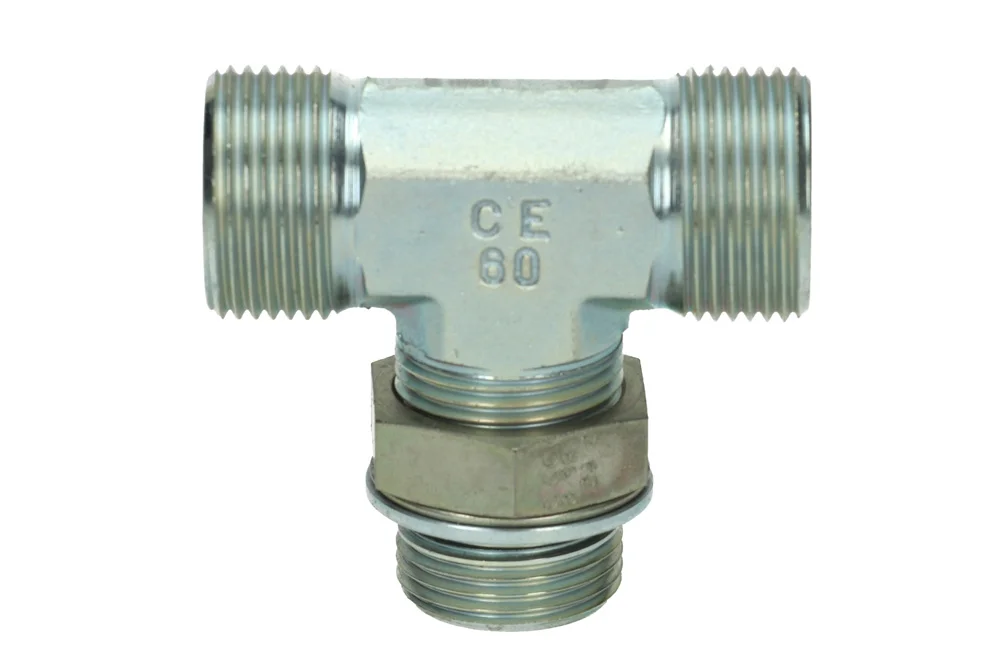

Fitting screw-in tee adjustable TE-MG, steel carbon

Additional information

Material	CS – steel (cast iron)

Fitting DIN 2353 screw-in tee adjustable, type TE-MG: socket 24° DIN 2353 with thread external metric and with thread external metric (sealing ISO-6149 type G – an O-ring with a retaining ring). Safety factor 4:1. occurs as: L (series light), S (series heavy). Material: steel carbon, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-TE-06L-MG-10	Fitting DIN 2353 TE 6L M10x1	-	315	In stock	Enquiry
HD-TE-06S-MG-12	Fitting DIN 2353 TE 6S M12x1.5	-	315	In stock	Enquiry
HD-TE-08L-MG-12	Fitting DIN 2353 TE 8L M12x1.5	-	315	In stock	Enquiry
HD-TE-08S-MG-14	Fitting DIN 2353 TE 8S M14x1.5	-	315	In stock	Enquiry
HD-TE-10L-MG-14	Fitting DIN 2353 TE 10L M14x1.5	-	315	In stock	Enquiry
HD-TE-10S-MG-16	Fitting DIN 2353 TE 10S M16x1.5	-	315	In stock	Enquiry
HD-TE-12L-MG-16	Fitting DIN 2353 TE 12L M16x1.5	-	315	In stock	Enquiry
HD-TE-12S-MG-18	Fitting DIN 2353 TE 12S M18x1.5	-	315	In stock	Enquiry
HD-TE-14S-MG-20	Fitting DIN 2353 TE 14S M20x1.5	-	250	In stock	Enquiry
HD-TE-15L-MG-18	Fitting DIN 2353 TE 15L M18x1.5	-	315	In stock	Enquiry
HD-TE-16S-MG-22	Fitting DIN 2353 TE 16S M22x1.5	-	250	In stock	Enquiry
HD-TE-18L-MG-22	Fitting DIN 2353 TE 18L M22x1.5	-	250	In stock	Enquiry
HD-TE-20S-MG-27	Fitting DIN 2353 TE 20S M27x2	-	250	In stock	Enquiry
HD-TE-22L-MG-27	Fitting DIN 2353 TE 22L M27x2	-	160	In stock	Enquiry
HD-TE-25S-MG-33	Fitting DIN 2353 TE 25S M33x2	-	160	In stock	Enquiry
HD-TE-28L-MG-33	Fitting DIN 2353 TE 28L M33x2	-	160	In stock	Enquiry
HD-TE-30S-MG-42	Fitting DIN 2353 TE 30S M42x2	-	160	In stock	Enquiry
HD-TE-35L-MG-42	Fitting DIN 2353 TE 35L M42x2	-	160	In stock	Enquiry
HD-TE-38S-MG-48	Fitting DIN 2353 TE 38S M48x2	-	160	In stock	Enquiry
HD-TE-42L-MG-48	Fitting DIN 2353 TE 42L M48x2	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Fitting DIN 2353 screw-in tee adjustable, type TE-MG: socket 24° DIN 2353 with thread external metric and with thread external metric (sealing ISO-6149 type G – an O-ring with a retaining ring). Safety factor 4:1. occurs as: L (series light), S (series heavy). Material: steel carbon, galvanized.
