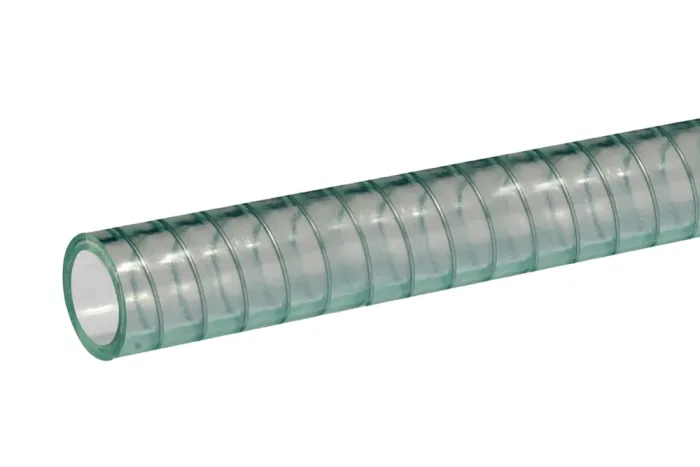

PVC Food-Grade Hose with Steel Wire Spiral Reinforcement ARMORVIN HNP
This highly versatile and lightweight suction and discharge hose is designed for safe transfer of water, juices, beverages, alcohols up to 20% concentration, and a wide range of other food products, while remaining unsuitable for fatty substances such as milk or oils. Its construction with an embedded galvanized steel spiral ensures excellent resistance to vacuum and collapse, while the transparent, UV-resistant wall allows continuous visual monitoring of the flow. The smooth inner surface minimizes pressure losses and simplifies cleaning, making it an efficient and hygienic solution for the food industry. Compared to the ARMORVIN HNA model, it offers higher working pressure and superior vacuum resistance, providing greater reliability in demanding conditions. Beyond food applications, it is also ideal for industrial, construction, and agricultural use, handling light chemicals, water, sludge, wastewater, air, dust, powders, granules, and other non-fatty bulk materials, with attention to abrasiveness and static electricity. Manufactured from light green transparent PVC and reinforced with a steel spiral, the hose complies with European regulations 1935/2004/EC, 10/2011/EU, and 2023/2006/EC, ensuring safety in food contact. With a working pressure range of 2–8 bar (depending on diameter) and an operating temperature span from -5°C to +65°C, it delivers durability, flexibility, and performance across multiple sectors.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
This highly versatile and lightweight suction and discharge hose is designed for safe transfer of water, juices, beverages, alcohols up to 20% concentration, and a wide range of other food products, while remaining unsuitable for fatty substances such as milk or oils. Its construction with an embedded galvanized steel spiral ensures excellent resistance to vacuum and collapse, while the transparent, UV-resistant wall allows continuous visual monitoring of the flow. The smooth inner surface minimizes pressure losses and simplifies cleaning, making it an efficient and hygienic solution for the food industry. Compared to the ARMORVIN HNA model, it offers higher working pressure and superior vacuum resistance, providing greater reliability in demanding conditions. Beyond food applications, it is also ideal for industrial, construction, and agricultural use, handling light chemicals, water, sludge, wastewater, air, dust, powders, granules, and other non-fatty bulk materials, with attention to abrasiveness and static electricity. Manufactured from light green transparent PVC and reinforced with a steel spiral, the hose complies with European regulations 1935/2004/EC, 10/2011/EU, and 2023/2006/EC, ensuring safety in food contact. With a working pressure range of 2–8 bar (depending on diameter) and an operating temperature span from -5°C to +65°C, it delivers durability, flexibility, and performance across multiple sectors.
Additional information
| Material | PVC – polyvinyl chloride |
|---|---|
| Maximum operating temperature [°C] | 65 |
| Minimum operating temperature [°C] | -5 |
| Vacuum resistance | yes |
| Standard length [m] | 20, 30, 40, 60 |
| Reinforcement | steel spiral |
