How often should the condensate drain (manual or RMSA) on the DEP BIT Series – High‑Efficiency Compressed Air Fine Filter be inspected and serviced to prevent clogging and ensure optimal coalescing performance?

For reliable coalescing performance and to prevent condensate drain clogging on the DEP BIT Series – High‑Efficiency Compressed Air Fine Filter, inspect and service the condensate drain (manual or RMSA) at least once per month under normal operating conditions. Increase inspection frequency to weekly if the system operates in high humidity, with heavy oil contamination, frequent load cycling, or near the filter’s maximum flow/pressure ratings. For manual drains, empty and check the condensate trap and seals each inspection; for RMSA semi‑automatic drains, verify correct operation, clean the outlet and float mechanism, and test the actuating cycle. Replace or overhaul the drain immediately if clogging, sticking, leakage, or inconsistent discharge is observed. Maintain a simple log of inspections and any maintenance to optimize performance and extend filter life.

DEP BIT Series – High‑Efficiency Compressed Air Fine Filter

Q: What maintenance schedule is recommended for the DEP BIT Series – High‑Efficiency Compressed Air Fine Filter to ensure continuous performance and prevent downtime?

Recommended maintenance schedule for the DEP BIT Series – High‑Efficiency Compressed Air Fine Filter: - Daily/Shift check: Visually inspect the unit and condensate drain for leaks, proper seating, and any obvious damage. Ensure the drain (manual or RMSA semi‑automatic) is functioning and not blocked. - Weekly: Confirm operating pressure and flow are within expected ranges (e.g., ~200 Nl/min at 6 bar). Check for unusual pressure drop across the filter indicating clogging. - Monthly: Operate the condensate drain to remove accumulated condensate; for manual drains perform full drainage, for RMSA check automatic cycle and clean if needed. Wipe exterior and ensure mounting/ports are secure. - Every 3–6 months (or sooner under heavy use/contaminated environments): Inspect and replace the coalescing/filter element if pressure drop is rising, oil/water carryover is observed, or element shows visible contamination. Record differential pressure and service intervals. - Annually: Perform a full service: replace filter element, inspect housing, seals and connections, test maximum inlet conditions up to 13 bar and operation at elevated temperatures (up to +50°C) as needed, and verify condensate drain reliability. - As‑needed: If system downtime, reduced performance, or contamination of downstream actuators occurs, replace the element immediately and troubleshoot upstream contamination sources. Keep a maintenance log with dates, operating hours, inlet pressure, differential pressure, and element changes to optimize replacement intervals and prevent downtime.

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50

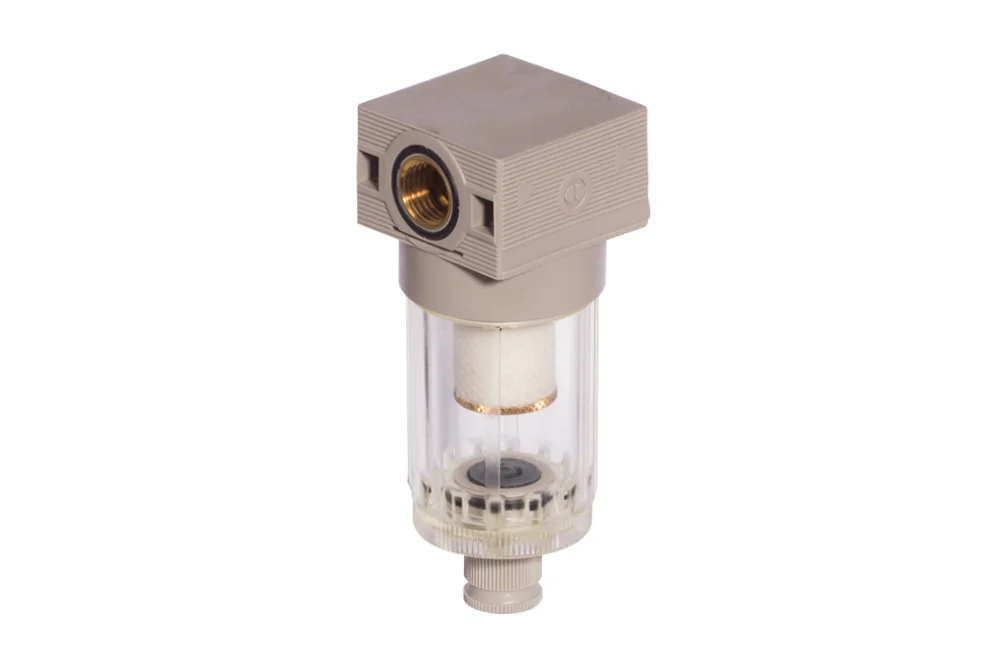

The DEP BIT series fine filter with integrated coalescing element is designed to ensure maximum air purity in compressed air systems and directly at actuating devices, providing reliable protection for sensitive components. Available in compact sizes of 1/8″ and 1/4″, it combines efficiency with space-saving installation, making it ideal for modern industrial applications. With a maximum inlet pressure of up to 13 bar and an operating temperature range reaching +50°C, the filter guarantees stable performance even under demanding conditions. The unit features a practical condensate drain, available in manual or semi-automatic (RMSA) versions, ensuring easy maintenance and continuous system efficiency. Delivering a recommended flow rate of 200 Nl/min at 6 bar, the DEP BIT series offers consistent filtration quality, reduced downtime, and extended service life of pneumatic equipment, making it a smart choice for industries seeking reliability, precision, and cost-effective operation.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]	Enquiry	Catalogue
MW-5112001	Precision filter D BIT 1/8 RMSA	-	-
MW-5212001	Precision filter D BIT 1/4 RMSA	-	-

The DEP BIT series fine filter with integrated coalescing element is designed to ensure maximum air purity in compressed air systems and directly at actuating devices, providing reliable protection for sensitive components. Available in compact sizes of 1/8″ and 1/4″, it combines efficiency with space-saving installation, making it ideal for modern industrial applications. With a maximum inlet pressure of up to 13 bar and an operating temperature range reaching +50°C, the filter guarantees stable performance even under demanding conditions. The unit features a practical condensate drain, available in manual or semi-automatic (RMSA) versions, ensuring easy maintenance and continuous system efficiency. Delivering a recommended flow rate of 200 Nl/min at 6 bar, the DEP BIT series offers consistent filtration quality, reduced downtime, and extended service life of pneumatic equipment, making it a smart choice for industries seeking reliability, precision, and cost-effective operation.
