How do I select the correct GAF Series GA Compressed Air Filter with BSP Female Threads size (200/300/400/600) for my system flow rate and pressure?

To select the correct GAF Series GA Compressed Air Filter with BSP Female Threads size (200/300/400/600) for your system, follow these steps: 1. Determine system flow rate at operating pressure (l/min). Use actual flow at working pressure, not maximum pipe capacity. 2. Note your operating pressure (bar) — filters are rated up to 10 bar; published flow rates are given at 6 bar with Δp = 1 bar. If you operate significantly above or below 6 bar, adjust selection conservatively. 3. Match required flow to filter capacity: at 6 bar the sizes cover ~1700–10,500 l/min (200 = lowest, 600 = highest). Choose the smallest size whose rated flow at 6 bar meets or exceeds your system flow. If your flow is near a size limit or pulsating, select the next larger size for margin. 4. Check inlet Δp tolerance and filtration degree: GAF Series GA filters provide 40 µm filtration and perform with Δp = 1 bar at the stated flows; ensure your allowable pressure drop fits system requirements. 5. Verify operating temperature (-5°C to +70°C) and maximum supply pressure (≤10 bar). 6. Confirm BSP connection size (1/8"–1") matches your piping or use GA connection sets (L, T, U) for modular linking. 7. Consider condensate handling and mounting: units include automatic condensate drain (A) and mounting bracket—ensure space and drain routing. If unsure, size up for safety margin or provide your exact flow (l/min) and operating pressure so a precise model (200/300/400/600) can be recommended.

GAF Series GA Compressed Air Filter with BSP Female Threads

Q: What maintenance schedule is recommended for the GAF Series GA Compressed Air Filter with BSP Female Threads to ensure optimal performance and condensate removal?

For optimal performance and reliable condensate removal of the GAF Series GA Compressed Air Filter with BSP Female Threads follow this maintenance schedule: - Daily / Weekly - Visually inspect the filter housing, mounting bracket and BSP connections for leaks, damage or loose fittings. - Verify the automatic condensate drain is operating (no continuous discharge, no blockage). - Monthly - Check differential pressure across the filter (Δp). If pressure drop approaches 1 bar or noticeably increases from baseline, service is required. - Inspect bowl and drain for accumulated dirt or liquid; clean exterior and ensure drain tubing is clear. - Every 3 months (or sooner in harsh conditions) - Remove and clean the filter element. Replace element if heavily fouled or damaged. Note: 40 µm element efficiency may reduce when clogged. - Test automatic condensate drain function by manually actuating or observing cycle. - Annually (or per operating hours/usage intensity) - Replace filter element as preventive maintenance even if not severely clogged. - Perform full inspection of seals, O-rings and bowl; replace worn parts. - Verify rated performance at typical operating pressure (up to 10 bar) and temperature range (-5°C to +70°C). - Additional recommendations - Increase inspection and element replacement frequency for dirty, humid or continuous-operation environments or when flow rates approach the filter’s upper capacity (1700–10,500 l/min). - Keep spare elements and condensate drain parts on hand to minimize downtime. - Record maintenance dates, Δp readings and replacements to detect trends and schedule proactive service. Following this schedule will help maintain filtration efficiency, prevent excessive pressure drop and ensure effective condensate removal for the GAF Series GA Compressed Air Filter with BSP Female Threads.

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	70
Minimum operating temperature [°C]	-5
Standard length [m]	40

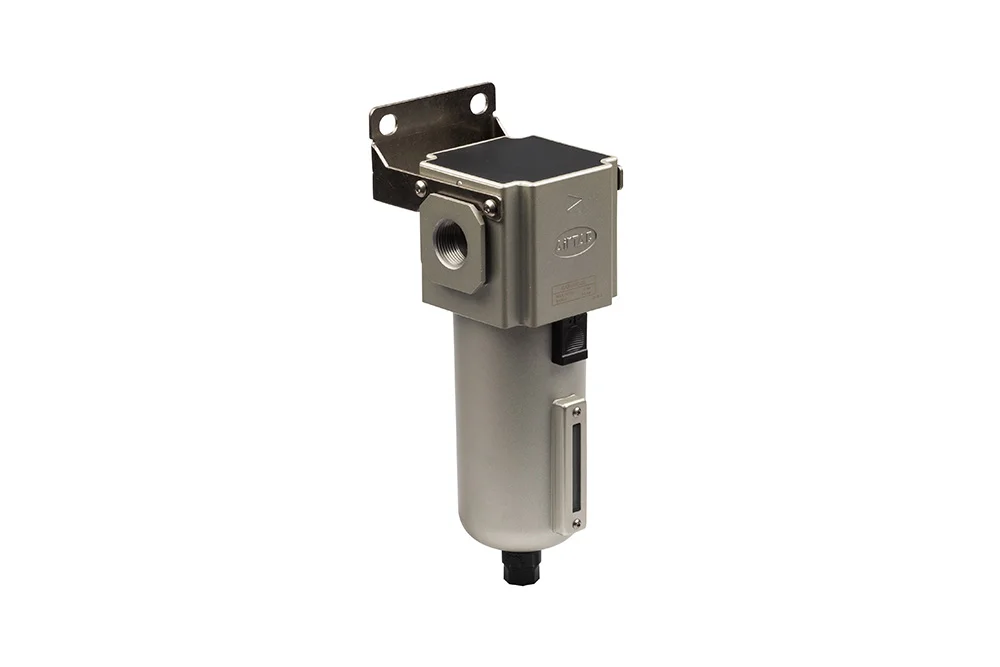

The GAF GA filter series with BSP internal thread is designed to effectively remove impurities from compressed air, ensuring reliable performance and extended service life of pneumatic system components. Equipped with an automatic condensate drain (A) and supplied with a practical mounting bracket, the filters guarantee convenient installation and maintenance. Available in four sizes—200, 300, 400, and 600—they offer impressive flow rates ranging from 1700 l/min up to 10,500 l/min at 6 bar inlet pressure (Δp = 1 bar), making them suitable for both compact and large-scale applications. With a filtration degree of 40 µm, supply pressure capability up to 10 bar, and an operating temperature range from -5°C to +70°C, the GA filters deliver consistent protection even in demanding environments. The BSP connection options from 1/8″ to 1″ provide flexibility for integration, while GA connection sets in L, T, and U shapes enable easy linking of multiple components, creating a modular and efficient compressed air system tailored to diverse industrial needs.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AT-GAF200-06	Filter FIL GAF200 1/8 40 A	-	-	In stock	Enquiry
AT-GAF200-08	Filter FIL GAF200 1/4 40 A	-	-	In stock	Enquiry
AT-GAF300-08	Filter FIL GAF300 1/4 40 A	-	-	In stock	Enquiry
AT-GAF300-10	Filter FIL GAF300 3/8 40 A	-	-	In stock	Enquiry
AT-GAF300-15	Filter FIL GAF300 1/2 40 A	-	-	In stock	Enquiry
AT-GAF400-10	Filter FIL GAF400 3/8 40 A	-	-	In stock	Enquiry
AT-GAF400-15	Filter FIL GAF400 1/2 40 A	-	-	In stock	Enquiry
AT-GAF600-20	Filter FIL GAF600 3/4 40 A	-	-	In stock	Enquiry
AT-GAF600-25	Filter FIL GAF600 1 40 A	-	-	In stock	Enquiry
