Is the Bottom Bridge Plate for DIN 3015 Clamp available in both carbon steel and AISI 316L stainless steel for outdoor and corrosive environments?

Yes. The Bottom Bridge Plate for DIN 3015 Clamp is available in both carbon steel and AISI 316L stainless steel, making it suitable for outdoor and corrosive environments due to its corrosion-resistant materials and durable construction.

Can the Bottom Bridge Plate for DIN 3015 Clamp be welded to non-standard mounting surfaces or custom brackets?

Yes — the Bottom Bridge Plate for DIN 3015 Clamp can be welded to non-standard mounting surfaces or custom brackets, with some considerations. Because it is manufactured from high‑quality carbon steel or AISI 316L stainless steel and designed specifically for secure welding installation of DIN 3015 clamp types 100 and 101, it is well suited for welded attachment to bespoke supports. Its precise construction ensures a stable, vibration‑resistant connection when correctly welded, and the corrosion‑resistant material options make it appropriate for indoor and outdoor, and harsh environment applications. Recommendations: - Match welding method and filler material to the plate material (carbon steel vs. 316L) and to the substrate to avoid weak joints or corrosion issues. - Ensure the custom bracket or mounting surface material is compatible and prepared (clean, properly fitted) to achieve full contact and weld penetration. - Consider post‑weld corrosion protection or passivation for stainless assemblies if exposed to corrosive environments. - Confirm mechanical loads, thermal stresses and pipe vibration requirements so the weld and bracket design provide adequate strength and fatigue resistance. - If mounting geometry is unusual, validate fit and clearances to preserve the intended clamp alignment and performance. When these guidelines are followed, welding the Bottom Bridge Plate for DIN 3015 Clamp to non‑standard surfaces or custom brackets provides a durable, reliable attachment suitable for demanding industrial use.

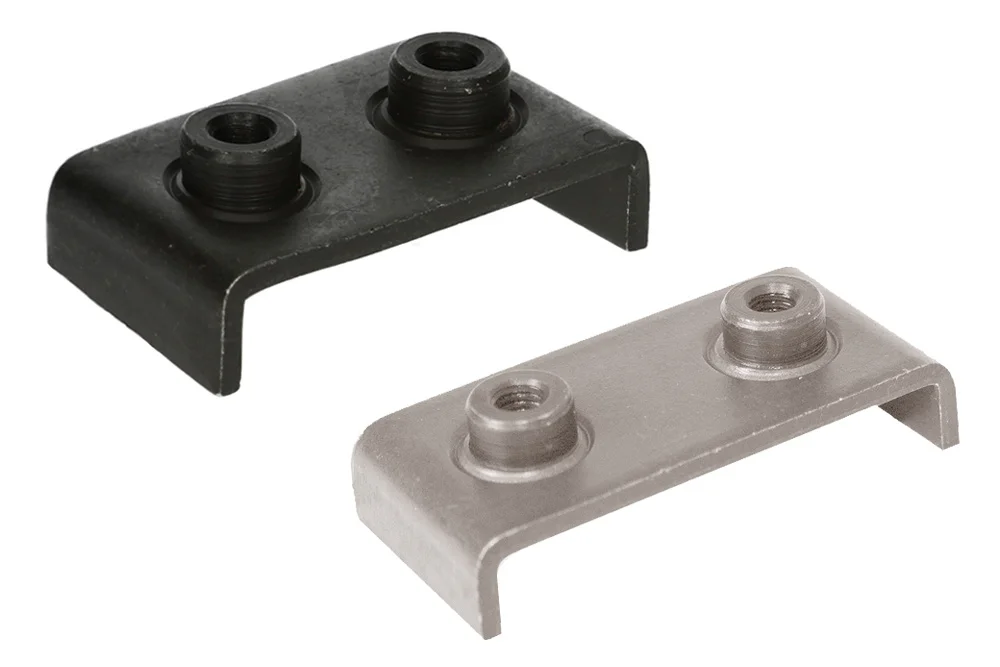

Bottom Bridge Plate for DIN 3015 Clamp

All products, Clamps for hydraulic pipes/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10, 2

The bottom bridge plate is a robust and reliable component designed for secure welding installation of DIN 3015 standard clamp types 100 and 101. Manufactured from high-quality carbon steel or premium AISI 316L stainless steel, it ensures excellent durability, resistance to wear, and long-term stability even in demanding industrial environments. Its precise construction guarantees a perfect fit with the clamp system, providing strong support and vibration resistance for pipes, hoses, and cables. Thanks to the use of corrosion-resistant materials, the plate is suitable for both indoor and outdoor applications, including areas exposed to moisture, chemicals, or extreme temperatures. This makes it an ideal choice for industries such as oil and gas, marine, chemical processing, and heavy machinery, where reliability and safety are crucial. The bottom bridge plate not only simplifies installation but also enhances the overall performance of the clamping system, ensuring a professional and durable solution tailored to modern engineering requirements.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TC-APINB-1	Bottom bridge plate standard thickness 1	-	-	In stock	Enquiry
TC-APINB-1-SS	Bottom bridge plate standard thickness 1, AISI 316L	-	-	In stock	Enquiry
TC-APINB-2	Bottom bridge plate standard thickness 2	-	-	In stock	Enquiry
TC-APINB-2-SS	Bottom bridge plate standard thickness 2, AISI 316L	-	-	In stock	Enquiry
TC-APINB-3	Bottom bridge plate standard thickness 3	-	-	In stock	Enquiry
TC-APINB-3-SS	Bottom bridge plate standard thickness 3, AISI 316L	-	-	In stock	Enquiry
TC-APINB-4	Bottom bridge plate standard thickness 4	-	-	In stock	Enquiry
TC-APINB-4-SS	Bottom bridge plate standard thickness 4, AISI 316L	-	-	In stock	Enquiry
TC-APINB-5	Bottom bridge plate standard thickness 5	-	-	In stock	Enquiry
TC-APINB-5-SS	Bottom bridge plate standard thickness 5, AISI 316L	-	-	In stock	Enquiry
TC-APINB-6	Bottom bridge plate standard thickness 6	-	-	In stock	Enquiry
TC-APINB-6-SS	Bottom bridge plate standard thickness 6, AISI 316L	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The bottom bridge plate is a robust and reliable component designed for secure welding installation of DIN 3015 standard clamp types 100 and 101. Manufactured from high-quality carbon steel or premium AISI 316L stainless steel, it ensures excellent durability, resistance to wear, and long-term stability even in demanding industrial environments. Its precise construction guarantees a perfect fit with the clamp system, providing strong support and vibration resistance for pipes, hoses, and cables. Thanks to the use of corrosion-resistant materials, the plate is suitable for both indoor and outdoor applications, including areas exposed to moisture, chemicals, or extreme temperatures. This makes it an ideal choice for industries such as oil and gas, marine, chemical processing, and heavy machinery, where reliability and safety are crucial. The bottom bridge plate not only simplifies installation but also enhances the overall performance of the clamping system, ensuring a professional and durable solution tailored to modern engineering requirements.
