Is the Muffler MWSTT with Brass GZ suitable for use at pressures up to 12 bar and temperatures from -10°C to +80°C?

Yes. The Muffler MWSTT with Brass GZ is suitable for use at pressures up to 12 bar and temperatures from -10°C to +80°C. It is manufactured from nickel-plated brass and nickel-plated sintered bronze, providing durable resistance to wear and corrosion, and is specified with a maximum working pressure of 12 bar and an operating temperature range of -10°C to +80°C.

Does the Muffler MWSTT with Brass GZ provide reliable 32 dB noise reduction at a 5 bar supply pressure from a 1 m distance and 45° angle?

Yes. The Muffler MWSTT with Brass GZ provides reliable 32 dB average noise reduction when tested at 5 bar supply pressure, measured from 1 m distance at a 45° angle from the silencer axis. Its construction (nickel‑plated brass and sintered bronze), proven test conditions, and operating range (up to 12 bar, -10°C to +80°C) support consistent performance in typical industrial environments.

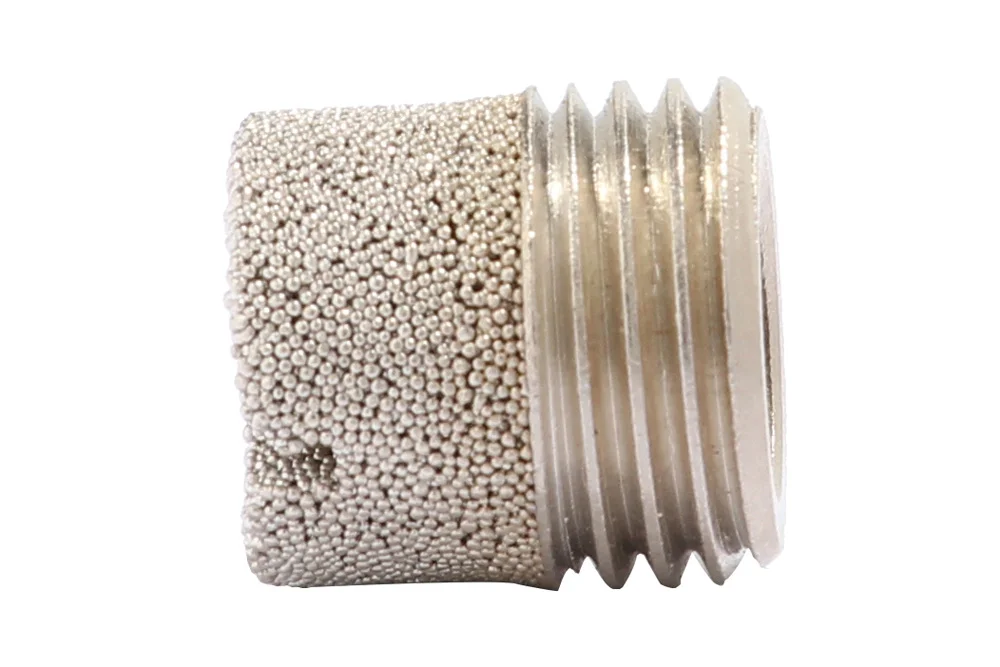

Silencer MWSTT with male thread, brass

All products, Equipment for pneumatic valves/

Additional information

Material	B – brass (bronze)

Silencer MWSTT with thread external used in systems compressed air in order to reducing level noise. reducer noise that can obtain through assembly silencer, measured at pressure supply 5 bar, in distance 1m and under angle 45° od axis silencer, is average depending on size 32 dB. Material: brass nickel-plated, bronze sintered nickel-plated. Operating temperature: od -10°C up to +80°C. Working pressure: 12 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-W0970530042	Silencer MW STT, brass/bronze nickel-plated, 1/8" BSP male	-	-	In stock	Enquiry
MW-W0970530043	Silencer MW STT, brass/bronze nickel-plated, 1/4" BSP male	-	-	In stock	Enquiry
MW-W0970530044	Silencer MW STT, brass/bronze nickel-plated, 3/8" BSP male	-	-	In stock	Enquiry
MW-W0970530045	Silencer MW STT, brass/bronze nickel-plated, 1/2" BSP male	-	-	In stock	Enquiry
MW-W0970530046	Silencer MW STT, brass/bronze nickel-plated, 3/4" BSP male	-	-	In stock	Enquiry
MW-W0970530047	Silencer MW STT, brass/bronze nickel-plated, 1" BSP male	-	-	In stock	Enquiry
