Is the Brass MWSVE Muffler with Drain Choke and GZ suitable for continuous use at 12 bar and temperatures up to +80°C?

Brass MWSVE Muffler with Drain Choke and GZ Format is specified for continuous use up to 12 bar and temperatures up to +80°C. The product’s maximum working pressure is 12 bar and its operating temperature range is -10°C to +80°C, so operating continuously at 12 bar and up to +80°C falls within its stated limits. Ensure proper installation, routine inspection for wear/corrosion, and compliance with your system’s safety margins and applicable standards when running continuously at the upper limits.

Can the Brass MWSVE Muffler with Drain Choke and GZ be cleaned or serviced in-line without depressurizing the system?

Can the Brass MWSVE Muffler with Drain Choke and GZ be cleaned or serviced in-line without depressurizing the system? No. The Brass MWSVE Muffler with Drain Choke and GZ is intended to be installed in compressed air systems under pressure, but cleaning or servicing it in-line without depressurizing the system is not recommended. Although constructed from durable nickel-plated brass and sintered bronze with a stainless-steel spring and rated to 12 bar, attempting maintenance while the system is pressurized poses safety risks (air blast, debris ejection) and can damage internal elements. For safe and effective cleaning or servicing, depressurize the system, remove the muffler, perform the required maintenance or replacement, and then reinstall following proper procedures.

Brass MWSVE Muffler with Drain Choke and GZ

All products, Equipment for pneumatic valves/

Additional information

Material	B – brass (bronze)

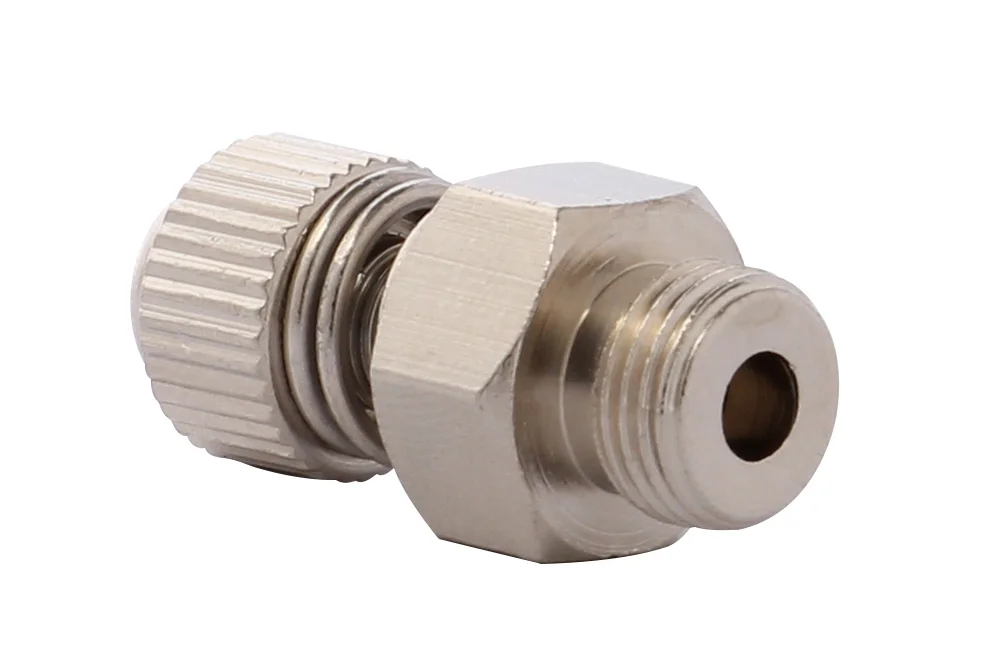

The MWSVE throttle muffler with external thread is a high-performance solution designed for compressed air systems, effectively minimizing noise levels while ensuring reliable operation. Delivering an average noise reduction of around 25 dB at 5 bar supply pressure, measured at a distance of 1 meter and a 45° angle from the muffler axis, it provides a quieter and safer working environment. Manufactured from durable nickel-plated brass and nickel-plated sintered bronze, with a stainless-steel spring for long-lasting resilience, this component guarantees excellent resistance to wear, corrosion, and demanding industrial conditions. With an operating temperature range from -10°C to +80°C and a maximum working pressure of 12 bar, it offers versatility and consistent performance across a wide spectrum of applications. Its robust design and precise engineering make it an ideal choice for industries seeking to enhance efficiency, extend equipment lifespan, and improve workplace comfort by reducing noise pollution.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-W0970520001	MW SVE silencer with throttling, nickel-plated brass/bronze, GZ BSP 1/8	-	-	In stock	Enquiry
MW-W0970520002	MW SVE silencer with throttling, nickel-plated brass/bronze, GZ BSP 1/4	-	-	In stock	Enquiry
MW-W0970520003	MW SVE silencer with throttling, nickel-plated brass/bronze, GZ BSP 3/8	-	-	In stock	Enquiry
MW-W0970520004	MW SVE silencer with throttling, nickel-plated brass/bronze, GZ BSP 1/2"	-	-	In stock	Enquiry
MW-W0970520005	MW SVE silencer with throttling, nickel-plated brass/bronze, GZ BSP 3/4	-	-	In stock	Enquiry
MW-W0970520006	MW SVE silencer with throttling, nickel-plated brass/bronze, GZ BSP 1	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The MWSVE throttle muffler with external thread is a high-performance solution designed for compressed air systems, effectively minimizing noise levels while ensuring reliable operation. Delivering an average noise reduction of around 25 dB at 5 bar supply pressure, measured at a distance of 1 meter and a 45° angle from the muffler axis, it provides a quieter and safer working environment. Manufactured from durable nickel-plated brass and nickel-plated sintered bronze, with a stainless-steel spring for long-lasting resilience, this component guarantees excellent resistance to wear, corrosion, and demanding industrial conditions. With an operating temperature range from -10°C to +80°C and a maximum working pressure of 12 bar, it offers versatility and consistent performance across a wide spectrum of applications. Its robust design and precise engineering make it an ideal choice for industries seeking to enhance efficiency, extend equipment lifespan, and improve workplace comfort by reducing noise pollution.
