Is the Brass DN2.7 Quick-Connect Socket with Valve and Hose End, Series 20KA compatible with nitrogen and other non-flammable gases?

Yes. The Brass DN2.7 Quick-Connect Socket with Valve and Hose End, Series 20KA is specified for use with nitrogen and other non-flammable gases. Its construction (brass body, AISI 301 springs/rings, AISI 420 balls, NBR seals), rated working pressure up to 35 bar, temperature range −20°C to +100°C, and stated compatibility with air, nitrogen and other non-flammable gases confirm suitability for those media.

Can the Brass DN2.7 Quick-Connect Socket with Valve and Hose End, Series 20KA withstand continuous operation at 35 bar in high-cycle industrial applications?

Yes. The Brass DN2.7 Quick-Connect Socket with Valve and Hose End, Series 20KA is specified for a working pressure of up to 35 bar and is manufactured from robust materials (brass body, AISI 301 springs/rings, AISI 420 balls, NBR seals) with a temperature rating of -20°C to +100°C. These design features, combined with its single shut-off valve and proven flow performance, make it suitable for continuous operation at 35 bar in high‑cycle industrial applications, provided the application uses approved media (water, air, nitrogen, other non‑flammable gases) and operating conditions do not exceed the stated temperature, pressure, or chemical compatibility limits.

Brass DN2.7 Quick-Connect Socket with Valve and Hose End, Series 20KA

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)
Standard length [m]	10

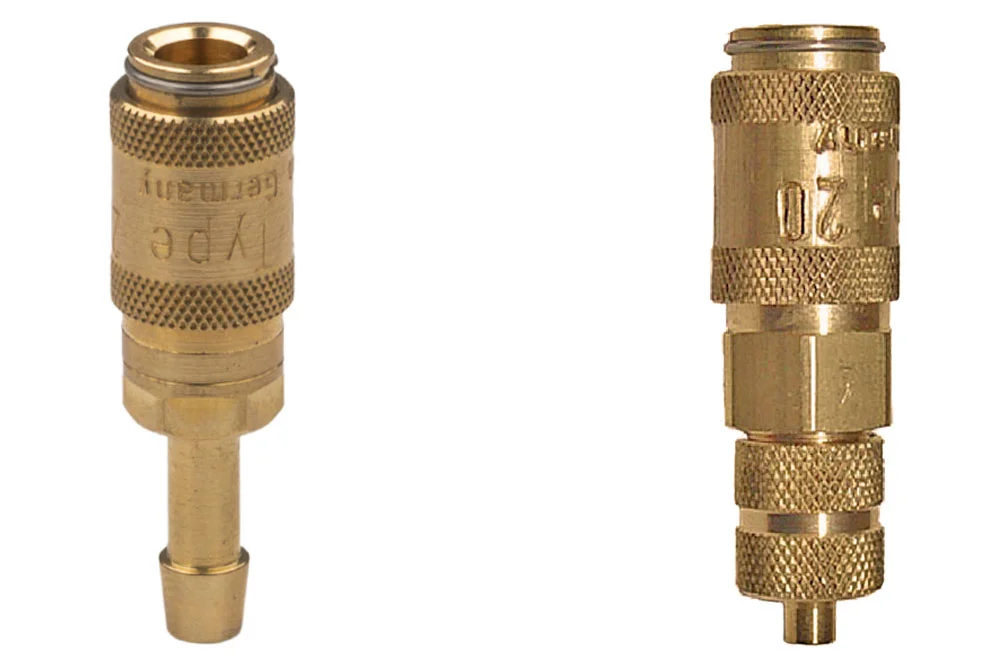

The compact quick coupling socket DN 2.7 series 20KA is engineered for maximum efficiency in demanding applications, offering a single shut-off valve for secure and reliable operation. Available in two practical configurations—one with a ribbed end for flexible hose connections and another with a nut end for thermoplastic hoses—it ensures versatile integration into diverse systems. Designed for use with water, air, nitrogen, and other non-flammable gases, it delivers impressive performance with a flow rate of 165 l/min at 6 bar (Δp=0.5 bar) for air and 3 l/min (Δp=1 bar, KV=0.18) for water. With a robust working pressure of up to 35 bar, this coupling guarantees durability and safety even under intensive conditions. Manufactured from high-quality brass with AISI 301 steel springs and rings, AISI 420 steel balls, and NBR sealing, it combines strength with long-lasting reliability. Resistant to temperatures ranging from -20°C to +100°C, it is the ideal solution for industries requiring compact dimensions, high performance, and dependable sealing technology.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RE-20KAKO04MPX	Quick coupling socket 20KA DN2.7, for hose 3x4 mm, brass, NBR	3	35	In stock	Enquiry
RE-20KAKO05MPX	Quick coupling socket 20KA DN2.7, for hose 3x5 mm, brass, NBR	3	35	In stock	Enquiry
RE-20KAKO06MPX	Quick coupling socket 20KA DN2.7, for hose 4x6 mm, brass, NBR	4	35	In stock	Enquiry
RE-20KATF03MPX	Quick coupling socket 20KA DN2.7, for 3 mm hose, brass, NBR	3	35	In stock	Enquiry
RE-20KATF04MPX	Quick coupling socket 20KA DN2.7, for 4 mm hose, brass, NBR	4	35	In stock	Enquiry
RE-20KATF05MPX	Quick coupling socket 20KA DN2.7, for 5 mm hose, brass, NBR	5	35	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The compact quick coupling socket DN 2.7 series 20KA is engineered for maximum efficiency in demanding applications, offering a single shut-off valve for secure and reliable operation. Available in two practical configurations—one with a ribbed end for flexible hose connections and another with a nut end for thermoplastic hoses—it ensures versatile integration into diverse systems. Designed for use with water, air, nitrogen, and other non-flammable gases, it delivers impressive performance with a flow rate of 165 l/min at 6 bar (Δp=0.5 bar) for air and 3 l/min (Δp=1 bar, KV=0.18) for water. With a robust working pressure of up to 35 bar, this coupling guarantees durability and safety even under intensive conditions. Manufactured from high-quality brass with AISI 301 steel springs and rings, AISI 420 steel balls, and NBR sealing, it combines strength with long-lasting reliability. Resistant to temperatures ranging from -20°C to +100°C, it is the ideal solution for industries requiring compact dimensions, high performance, and dependable sealing technology.
