Can the MRF/C Brass Pneumatic Throttle Valve for Actuator be installed directly on existing actuator ports without additional fittings?

Yes. The MRF/C Brass Pneumatic Throttle Valve for Actuator can be installed directly on existing actuator ports without additional fittings. It is specifically designed for direct installation in actuator connections, featuring a compact nickel-plated brass body and an integrated plug connection for quick hose disassembly. Ensure port sizes and thread types on your actuator match the valve’s connection specifications before installation to guarantee a proper seal and optimal performance.

Does the MRF/C Brass Pneumatic Throttle Valve for Actuator require a specific orientation or mounting position to ensure proper throttle-return function?

MRF/C Brass Pneumatic Throttle Valve for Actuator does not require a special or fixed orientation for basic mounting; it is designed for direct installation in actuator connections and to function reliably when fitted into the pneumatic line. However, to ensure correct throttle-return behavior and long-term reliability: - Install it in the line according to the intended flow direction (throttled vs. free-flow) so the adjustable element controls the correct flow path. - Mount it in a position that avoids excessive contamination or liquid pooling around the valve (avoid downward-facing ports where condensate can collect). - Ensure the plug connection and hoses are fitted without undue stress or sharp bends that could affect sealing or return movement. - Provide reasonable accessibility for adjustment with a screwdriver and for maintenance/disassembly. Following these practical mounting considerations will preserve the throttle-return function and durability specified for operation up to 10 bar and -10°C…+70°C.

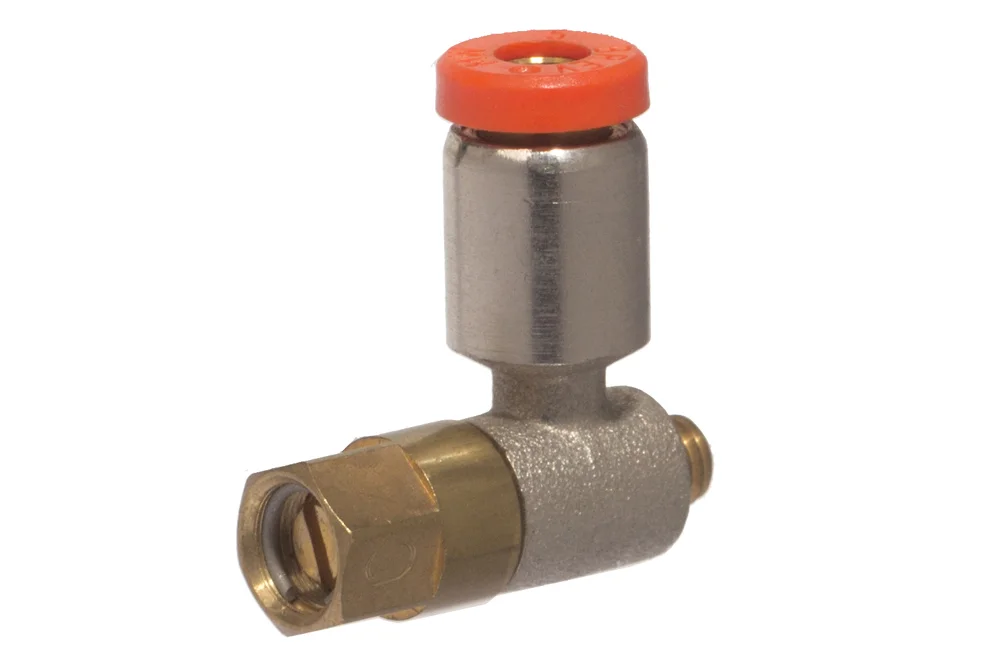

Valve throttle check pneumatic brass MRF/C for actuator

All products, Pneumatic valves/

Additional information

Material	B – brass (bronze)

Valve throttle check type MRF/C for direct mounting in connections actuator, used in systems pneumatic for regulation level flowing stream compressed air and direction flow. equipped in coupling push-in ensuring easy disassembly lines pneumatic. change setting at use a screwdriver. stated Flow rate nominal at pressure 6.3 bar (in direction throttled). Body material: brass nickel-plated. Working pressure: up to 10 bar. Operating temperature: od -10°C up to +70°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-9001002	Throttle check valve for actuator MRF/C, hose 5 mm, M5 male	-	10	In stock	Enquiry
MW-9001008	Throttle check valve for actuator MRF/C, hose 10 mm, 1/4" BSP male	-	10	In stock	Enquiry
MW-9001011	Throttle check valve for actuator MRF/C, hose 4 mm, 1/8" BSP male	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Valve throttle check type MRF/C for direct mounting in connections actuator, used in systems pneumatic for regulation level flowing stream compressed air and direction flow. equipped in coupling push-in ensuring easy disassembly lines pneumatic. change setting at use a screwdriver. stated Flow rate nominal at pressure 6.3 bar (in direction throttled). Body material: brass nickel-plated. Working pressure: up to 10 bar. Operating temperature: od -10°C up to +70°C.
