Is the 90° DN9 Brass Quick Coupling Socket with Hose End – TST 090 Series suitable for steam and hot oil applications up to 200°C?

Yes. The 90° DN9 Brass Quick Coupling Socket with Hose End – TST 090 Series is suitable for steam and hot oil applications up to 200°C when fitted with Viton sealing. It is engineered for demanding industrial use, supports a working pressure up to 25 bar, and its brass body and stainless steel internals provide durability and corrosion resistance for high-temperature fluid transfer.

Can the 90° DN9 Brass Quick Coupling Socket with Hose End – TST 090 Series be used safely with abrasive or chemically aggressive fluids, and what sealing materials are recommended?

The 90° DN9 Brass Quick Coupling Socket with Hose End – TST 090 Series is built for demanding industrial use and is broadly compatible with many fluids, including water, hot oil and steam, thanks to its brass body and stainless steel internal parts. However, its suitability with abrasive or chemically aggressive fluids depends primarily on the specific chemistry and abrasiveness: - Abrasive fluids: The brass body and stainless steel balls/spring offer good mechanical durability, but highly abrasive media (containing hard particulates or slurry) will accelerate wear of sealing surfaces and internal components. For continuous exposure to abrasive slurries, consider frequent inspection/replacement intervals or specialized couplings designed for slurry service. - Chemically aggressive fluids: Compatibility depends on the fluid’s corrosiveness toward brass and stainless steel and on the seal material. The coupling’s maximum temperature rating reaches +200°C only when fitted with Viton (fluoroelastomer) seals, which also provide excellent resistance to many oils, fuels, hydrocarbons and many chemicals. For aggressive acids, strong bases, chlorinated solvents or ketones, Viton may be inadequate — alternative seal materials (e.g., PTFE/Teflon, EPDM, FFKM) should be specified based on the exact chemical compatibility. Recommended sealing guidance: - Viton (FKM): recommended for high temperature (up to ~200°C) and good resistance to oils, fuels and many chemicals. - PTFE (Teflon): best for broad chemical resistance and low friction; suitable where maximum chemical inertness is required (check temperature/elasticity needs). - EPDM: good for hot water/steam and some alkaline media but poor with oils and hydrocarbons. - FFKM (perfluoroelastomer): premium choice for highly aggressive chemicals and high temperature, though costly. Always verify compatibility by consulting chemical compatibility charts and testing under actual temperature, pressure (≤25 bar) and service conditions. When in doubt, contact the manufacturer with the exact fluid composition and operating parameters to select the optimal seal material or a more suitable coupling.

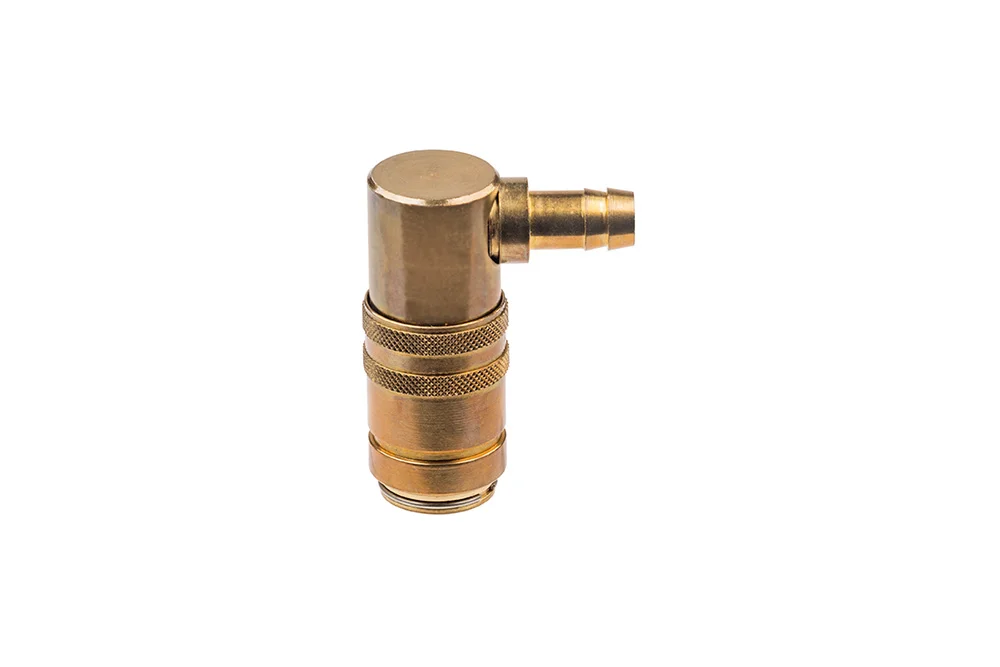

90° DN9 Brass Quick Coupling Socket with Hose End – TST 090 Series

Additional information

Material	B – brass (bronze)

The 90° socket DN 9 quick coupling with hose end, available with or without valve, is a highly versatile solution designed for demanding industrial applications. Engineered for efficiency and reliability, it is widely used in cooling systems for injection molds as well as for casting components made of plastics, aluminum, brass, and zinc alloys. Its robust construction also makes it suitable for water supply in cleaning machines, as well as for handling hot oil and steam in high-performance environments. With a 9 mm flow diameter, a working pressure of up to 25 bar, and an impressive operating temperature range from -20°C to +200°C (with Viton sealing), this coupling ensures consistent performance under extreme conditions. The socket body, connection, and valve sleeve are manufactured from durable brass, while the spring, ring, and balls are crafted from stainless steel, guaranteeing long-lasting resistance to wear and corrosion. This combination of materials and technical features makes the coupling an ideal choice for industries seeking reliability, safety, and efficiency in fluid transfer systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
FW-CSK090-10-90	90° socket DN 9 with end for 10 mm hose, with valve	10	25	In stock	Enquiry
FW-CSK090-13-90	90° socket DN 9 with end for 13 mm hose, with valve	12	25	In stock	Enquiry
FW-SK090-10-90	90° socket DN 9 with end for 10 mm hose, without valve	10	25	In stock	Enquiry
FW-SK090-13-90	90° socket DN 9 with end for 13 mm hose, without valve	12	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The 90° socket DN 9 quick coupling with hose end, available with or without valve, is a highly versatile solution designed for demanding industrial applications. Engineered for efficiency and reliability, it is widely used in cooling systems for injection molds as well as for casting components made of plastics, aluminum, brass, and zinc alloys. Its robust construction also makes it suitable for water supply in cleaning machines, as well as for handling hot oil and steam in high-performance environments. With a 9 mm flow diameter, a working pressure of up to 25 bar, and an impressive operating temperature range from -20°C to +200°C (with Viton sealing), this coupling ensures consistent performance under extreme conditions. The socket body, connection, and valve sleeve are manufactured from durable brass, while the spring, ring, and balls are crafted from stainless steel, guaranteeing long-lasting resistance to wear and corrosion. This combination of materials and technical features makes the coupling an ideal choice for industries seeking reliability, safety, and efficiency in fluid transfer systems.
