Is the Brass Quick Coupling Socket DN13 with Hose End, TST 190 Series available with viton seals for operation up to +200°C and compatible with steam and hot oil?

Yes. The Brass Quick Coupling Socket DN13 with Hose End, TST 190 Series is available with Viton seals for operation up to +200°C and is compatible with steam and hot oil. The coupling features a 13 mm flow diameter, brass body, connection and valve sleeve, and stainless steel spring, ring and balls, supports up to 25 bar working pressure, and is suitable for demanding applications such as cooling systems, cleaning machines, hot oil and steam processes.

Can the Brass Quick Coupling Socket DN13 with Hose End, TST 190 Series be fitted with a valve option to shut off flow without disconnecting the hose?

Yes. The Brass Quick Coupling Socket DN13 with Hose End, TST 190 Series can be supplied with a valve option that allows shutting off flow without disconnecting the hose. The product is available with or without valve; when fitted with the valve it provides reliable shut-off while maintaining the hose connection, supporting up to 25 bar and temperatures from −20°C to +200°C (with Viton seals).

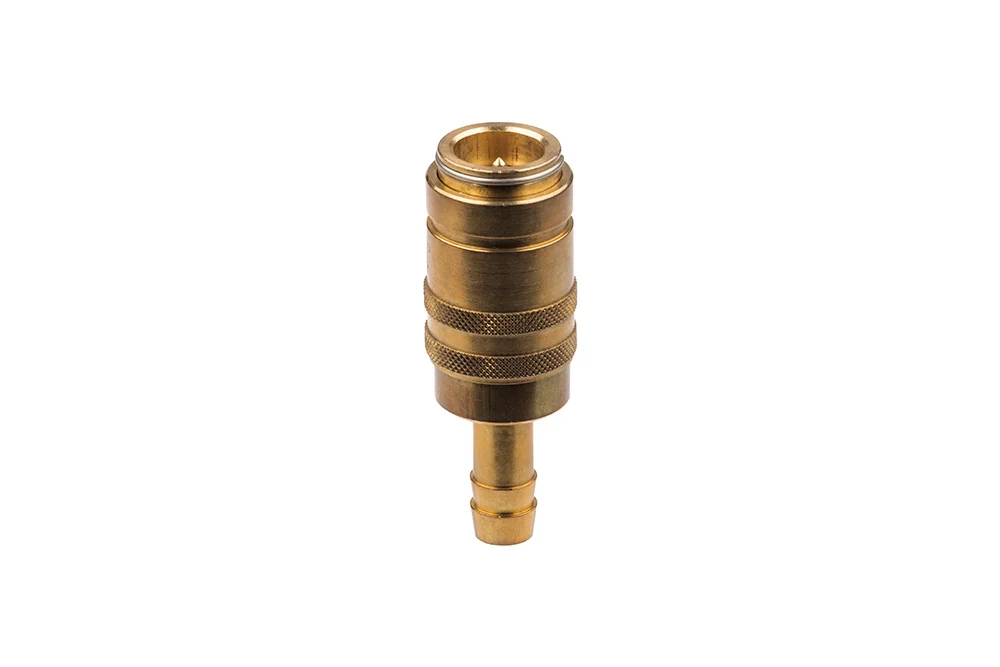

Socket DN 13 quick coupling with fitting for hose, series TST 190, brass

Additional information

Material	B – brass (bronze)

Socket DN 13 quick coupling with fitting for hose, with valve or without valve. used widely in industry for cooling moulds injection and casting parts with plastics, aluminum, brass and alloys zinc. can be used for water in cleaning machines, for hot oil, steam water. Diameter bore: 13 mm. Working pressure: 25 bar. Operating temperature: od -20°C up to +200°C (Viton). Material: brass (body socket, Connection, sleeve valve), steel stainless (spring, ring, balls).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
FW-CSK190-19	Socket DN 13 with Fitting for 19 mm hose, with a valve	20	25	In stock	0 €		Enquiry
FW-SK190-19	Socket DN 13 with Fitting for 19 mm hose, without valve	20	25	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Socket DN 13 quick coupling with fitting for hose, with valve or without valve. used widely in industry for cooling moulds injection and casting parts with plastics, aluminum, brass and alloys zinc. can be used for water in cleaning machines, for hot oil, steam water. Diameter bore: 13 mm. Working pressure: 25 bar. Operating temperature: od -20°C up to +200°C (Viton). Material: brass (body socket, Connection, sleeve valve), steel stainless (spring, ring, balls).
