Does the Twisted Tee for Pneumatic Pipes & Hoses "L" with BSPT Male Thread, Type B8 require reinforcing sleeves (B12) for all hose sizes to ensure a leak‑proof connection?

Twisted Tee for Pneumatic Pipes & Hoses "L" with BSPT Male Thread, Type B8 does recommend the use of reinforcing sleeves (B12) when connecting to hoses. While the fitting is designed for secure, durable connections and rated to 60 bar, reinforcing sleeves are advised to guarantee a tight, leak‑proof seal and extended service life—especially with flexible plastic hoses. For best results and to ensure leak‑proof performance across all hose sizes, follow the manufacturer’s guidance and use the appropriate B12 sleeve sized to the hose in question.

Can the Twisted Tee for Pneumatic Pipes & Hoses "L" with BSPT Male Thread, Type B8 be used with plastic hoses without reinforcing sleeves (B12) for short-term or low-pressure applications?

Short answer: Not recommended. The Twisted Tee for Pneumatic Pipes & Hoses "L" with BSPT Male Thread, Type B8 is engineered for reliable, durable connections and is rated up to 60 bar. Although it can physically mate with unreinforced plastic hoses, the product description explicitly recommends using reinforcing sleeves (B12) for optimal sealing and extended service life. Without a reinforcing sleeve, plastic hoses are more likely to deform, slip, or develop leaks under pressure, vibration or repeated use — risks that increase even in short-term or low-pressure situations. For safe, durable performance and to preserve the fitting’s rated integrity, use B12 reinforcing sleeves when connecting plastic hoses.

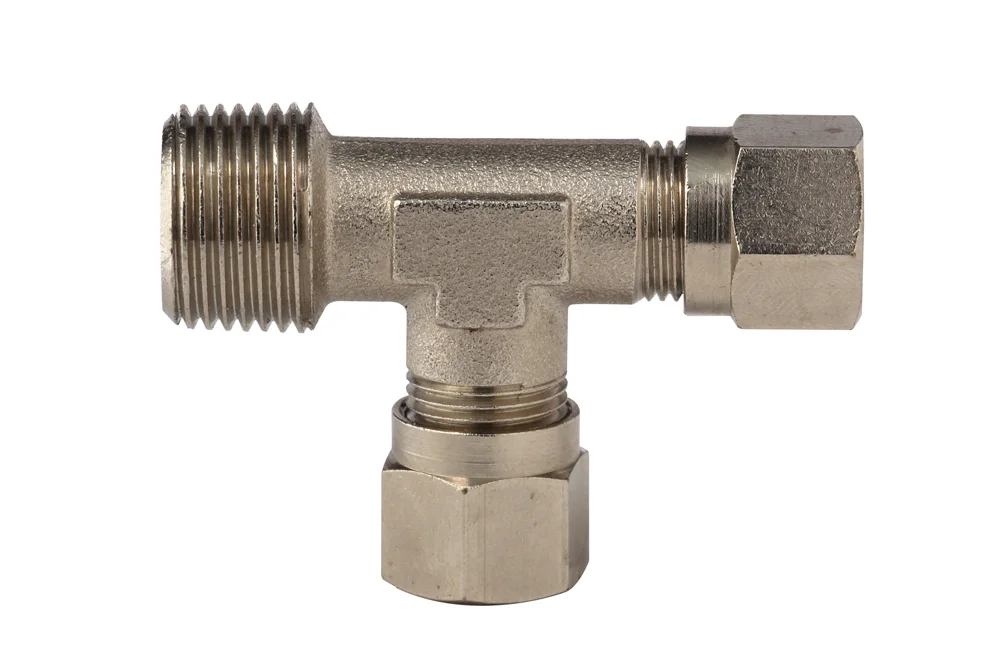

Twisted Tee for Pneumatic Pipes & Hoses “L” with BSPT Male Thread, Type B8

All products, Cutting ring fittings/

Additional information

Material	B – brass (bronze)

The L-shaped tee coupling with external BSPT thread type B8 and integrated locking ring is a reliable solution for creating secure and durable connections between copper pipes and plastic hoses. Crafted from high-quality nickel-plated brass, it ensures excellent resistance to corrosion and long-lasting performance even under demanding conditions. With a working pressure of up to 60 bar, this fitting is designed to deliver consistent strength and safety in both industrial and professional applications. For optimal results when connecting to hoses, the use of reinforcing sleeves (B12) is recommended, guaranteeing a tight seal and extended service life. Its precise engineering and robust construction make it an ideal choice for systems requiring efficiency, durability, and ease of installation.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
MW-2208000	L-shaped tee connector B8, 2 x tube (hose) 4/2 / GZ BSPT 1/8	-	60
MW-2208001	L-shaped tee connector B8, 2 x tube (hose) 6/4 / GZ BSPT 1/8"	-	60
MW-2208002	L-shaped tee connector B8, 2 x tube (hose) 6/4 / GZ BSPT 1/4"	-	60
MW-2208003	L-shaped tee connector B8, 2 x tube (hose) 8/6 / GZ BSPT 1/8	-	60
MW-2208004	L-shaped tee connector B8, 2 x tube (hose) 8/6 / GZ BSPT 1/4"	-	60
MW-2208005	L-shaped tee connector B8, 2 x tube (hose) 8/6 / GZ BSPT 3/8	-	60
MW-2208006	L-shaped tee connector B8, 2 x tube (hose) 10/8 / GZ BSPT 1/4"	-	60
MW-2208007	L-shaped tee connector B8, 2 x tube (hose) 10/8 / GZ BSPT 3/8	-	60
MW-2208009	L-shaped tee connector B8, 2 x tube (hose) 12/10 / GZ BSPT 3/8	-	60
MW-2208010	L-shaped tee connector B8, 2 x tube (hose) 12/10 / GZ BSPT 1/2"	-	60
MW-2208011	L-shaped tee connector B8, 2 x tube (hose) 15/12 / GZ BSPT 1/2"	-	60

The L-shaped tee coupling with external BSPT thread type B8 and integrated locking ring is a reliable solution for creating secure and durable connections between copper pipes and plastic hoses. Crafted from high-quality nickel-plated brass, it ensures excellent resistance to corrosion and long-lasting performance even under demanding conditions. With a working pressure of up to 60 bar, this fitting is designed to deliver consistent strength and safety in both industrial and professional applications. For optimal results when connecting to hoses, the use of reinforcing sleeves (B12) is recommended, guaranteeing a tight seal and extended service life. Its precise engineering and robust construction make it an ideal choice for systems requiring efficiency, durability, and ease of installation.
