Is the Twisted Coupling for Pneumatic Pipes and Hoses with BSP Female Thread, Type B2 compatible with reinforced sleeves (B12) for hose connections?

Yes. The Twisted Coupling for Pneumatic Pipes and Hoses with BSP Female Thread, Type B2 is compatible with reinforced sleeves (B12) for hose connections. The product description explicitly recommends using reinforcing sleeves (B12) to enhance strength and extend service life for hose installations. Manufactured from nickel-plated brass with a robust locking ring and rated up to 60 bar, the Type B2 fitting is designed to accept B12 sleeves to ensure a secure, leak-resistant, high-pressure connection.

Can the Twisted Coupling for Pneumatic Pipes and Hoses with BSP Female Thread, Type B2 be used with stainless steel or other non-copper pipe materials?

Twisted Coupling for Pneumatic Pipes and Hoses with BSP Female Thread, Type B2 is primarily described and engineered for secure assembly of copper pipes and plastic hoses. It is manufactured from nickel-plated brass and uses a locking ring designed to clamp onto those materials reliably. Using it with stainless steel or other non-copper pipe materials is not explicitly specified in the description and may present fitment and sealing issues: stainless or harder metals often have different outer diameters, surface hardness, and compression behavior compared with copper, which can prevent the locking ring from forming a proper seal or may damage the pipe. If you plan to use non-copper tubing, you should confirm compatibility by checking the exact pipe OD/tolerances and wall thickness, and whether the locking ring and ferrule design can grip and seal that material. Also consider using appropriate reinforcement sleeves or adapters rated for the mating material and pressure (the fitting is rated up to 60 bar). For safety and leak-free performance, consult the manufacturer’s technical data or support to verify approved materials or obtain a recommended adapter/ferrule for stainless-steel or alternative pipes before installation.

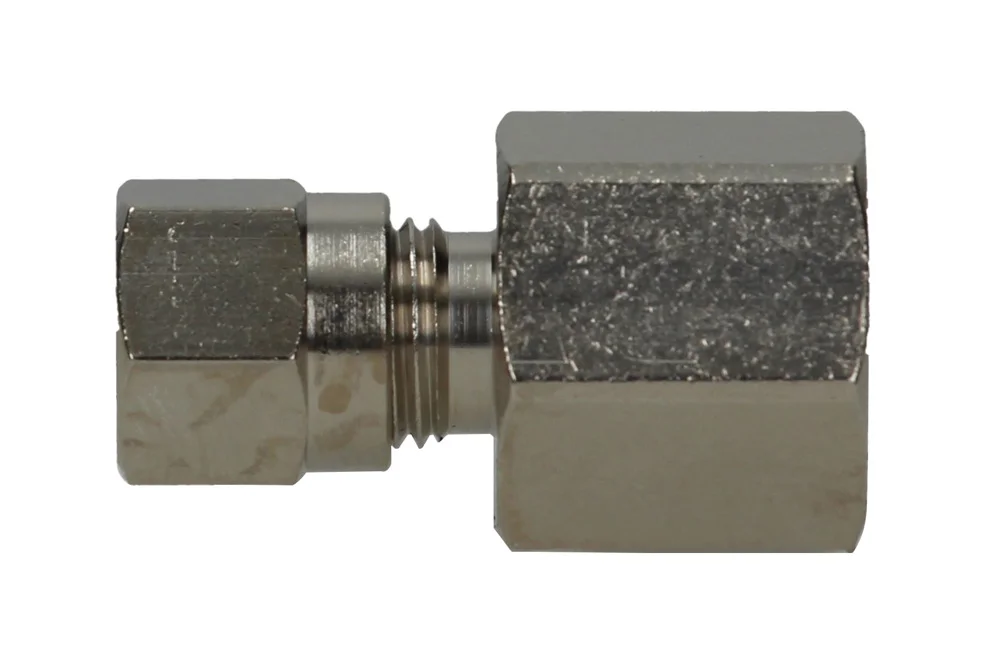

Twisted Coupling for Pneumatic Pipes and Hoses with BSP Female Thread, Type B2

All products, Cutting ring fittings/

Additional information

Material	B – brass (bronze)

The BSP type B2 internal threaded connection with locking ring is a reliable and versatile solution designed for secure assembly of copper pipes and plastic hoses in demanding installations. Manufactured from high-quality nickel-plated brass, it ensures excellent durability, corrosion resistance, and long-lasting performance even under intensive use. The robust locking ring guarantees a tight and stable fit, minimizing the risk of leaks and ensuring consistent flow. For hose connections, the use of reinforcing sleeves (B12) is recommended to enhance strength and extend service life. With a working pressure of up to 60 bar, this fitting is perfectly suited for high-pressure applications across various industries, offering both safety and efficiency. Its precise engineering and premium finish make it an ideal choice for professionals seeking a dependable connection system that combines functionality, reliability, and ease of installation.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2202001	Straight connector B2, tube (weight) 6/4 mm, BSP thread 1/8"	-	60	In stock	Enquiry
MW-2202002	Straight connector B2, tube (weight) 6/4 mm, BSP thread 1/4"	-	60	In stock	Enquiry
MW-2202003	Straight connector B2, tube (weight) 8/6 mm, BSP thread 1/8"	-	60	In stock	Enquiry
MW-2202004	Straight connector B2, tube (weight) 8/6 mm, BSP thread 1/4"	-	60	In stock	Enquiry
MW-2202005	Straight connector B2, tube (weight) 8/6 mm, BSP thread 3/8"	-	60	In stock	Enquiry
MW-2202006	Straight connector B2, tube (weight) 10/8 mm, BSP thread 1/4"	-	60	In stock	Enquiry
MW-2202007	Straight connector B2, tube (weight) 10/8 mm, BSP thread 3/8"	-	60	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The BSP type B2 internal threaded connection with locking ring is a reliable and versatile solution designed for secure assembly of copper pipes and plastic hoses in demanding installations. Manufactured from high-quality nickel-plated brass, it ensures excellent durability, corrosion resistance, and long-lasting performance even under intensive use. The robust locking ring guarantees a tight and stable fit, minimizing the risk of leaks and ensuring consistent flow. For hose connections, the use of reinforcing sleeves (B12) is recommended to enhance strength and extend service life. With a working pressure of up to 60 bar, this fitting is perfectly suited for high-pressure applications across various industries, offering both safety and efficiency. Its precise engineering and premium finish make it an ideal choice for professionals seeking a dependable connection system that combines functionality, reliability, and ease of installation.
