Is the Twisted 90° Pneumatic Coupling with BSPT Male Thread, Type B5 compatible with reinforced hose sleeves B12 for pressures up to 60 bar?

Yes. The Twisted 90° Pneumatic Coupling with BSPT Male Thread, Type B5 is compatible with reinforced hose sleeves B12 for pressures up to 60 bar. The coupling is made of nickel‑plated brass, rated for a working pressure of up to 60 bar, and the product description explicitly recommends using B12 reinforcing sleeves to ensure stability and extend service life when connecting to hoses.

Can the Twisted 90° Pneumatic Coupling with BSPT Male Thread, Type B5 be used with non‑metallic hoses without reinforcing sleeves (B12) at pressures near 60 bar?

Twisted 90° Pneumatic Coupling with BSPT Male Thread, Type B5 should not be used with non‑metallic hoses without reinforcing sleeves (B12) at pressures near 60 bar. Although the coupling itself is rated up to 60 bar and is made of durable nickel‑plated brass, the product description explicitly recommends using reinforcing sleeves (B12) for optimal performance when connecting to hoses. Non‑metallic hoses without reinforcement are likely to deform, slip out, or fail under near‑maximum pressure, creating a risk of leaks or hose blow‑off. To ensure safety, stability and longevity of the connection at or near 60 bar, use the B12 reinforcing sleeves as recommended or choose hoses specifically rated (with suitable reinforcement) for that pressure.

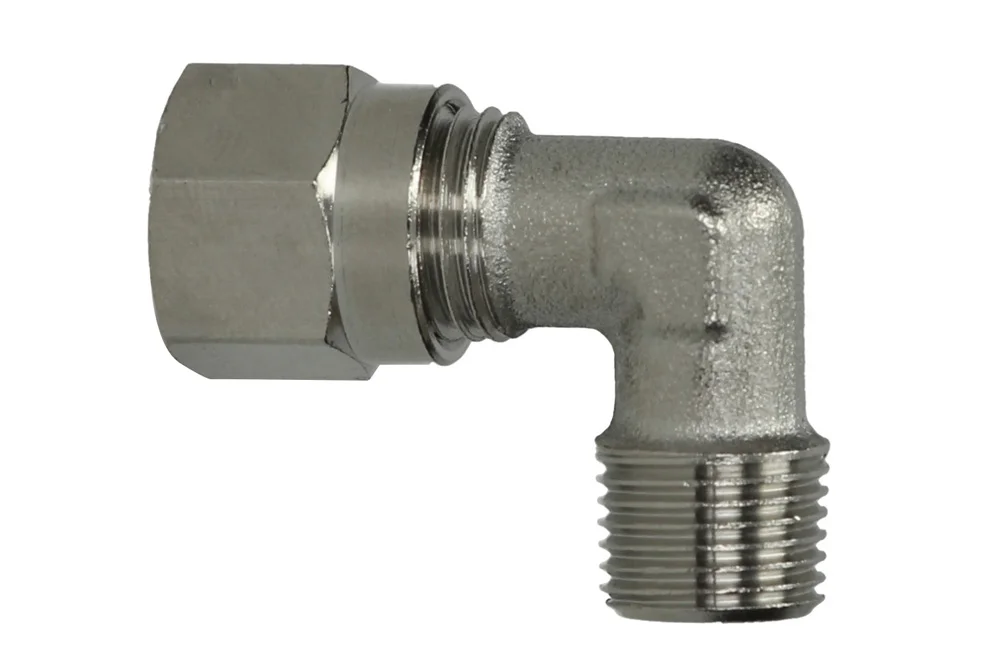

Twisted 90° Pneumatic Coupling with BSPT Male Thread, Type B5

All products, Cutting ring fittings/

Additional information

Material	B – brass (bronze)

The 90° angled connector with external BSPT thread type B5 and a secure locking ring is a reliable solution for creating durable and leak‑proof connections between copper pipes and plastic hoses. Crafted from high‑quality nickel‑plated brass, it ensures excellent resistance to corrosion and long‑lasting performance even under demanding conditions. With a working pressure of up to 60 bar, this fitting provides outstanding strength and safety in both industrial and professional applications. For optimal performance when connecting to hoses, the use of reinforcing sleeves (B12) is recommended, guaranteeing stability and extending the service life of the installation. Designed for precision, durability, and ease of use, this connector is an ideal choice for those seeking efficiency and reliability in fluid systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2205001	Angle connector (elbow) B5, tube (hose) 4/2, GZ BSPT 1/8	-	60	In stock	Enquiry
MW-2205002	Angle connector (elbow) B5, tube (hose) 6/4, GZ BSPT 1/8	-	60	In stock	Enquiry
MW-2205003	Angle connector (elbow) B5, tube (hose) 6/4, GZ BSPT 1/4	-	60	In stock	Enquiry
MW-2205004	Angle connector (elbow) B5, tube (hose) 8/6, GZ BSPT 1/8	-	60	In stock	Enquiry
MW-2205005	Angle connector (elbow) B5, tube (hose) 8/6, GZ BSPT 1/4	-	60	In stock	Enquiry
MW-2205006	Angle connector (elbow) B5, tube (hose) 8/6, GZ BSPT 3/8	-	60	In stock	Enquiry
MW-2205007	Angle connector (elbow) B5, tube (hose) 10/8, GZ BSPT 1/4	-	60	In stock	Enquiry
MW-2205008	Angle connector (elbow) B5, tube (hose) 10/8, GZ BSPT 3/8	-	60	In stock	Enquiry
MW-2205009	Angle connector (elbow) B5, tube (hose) 10/8, GZ BSPT 1/2"	-	60	In stock	Enquiry
MW-2205010	Angle connector (elbow) B5, tube (hose) 12/10, GZ BSPT 3/8	-	60	In stock	Enquiry
MW-2205011	Angle connector (elbow) B5, tube (hose) 12/10, GZ BSPT 1/2	-	60	In stock	Enquiry
MW-2205012	Angle connector (elbow) B5, tube (hose) 15/12, GZ BSPT 1/2"	-	60	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The 90° angled connector with external BSPT thread type B5 and a secure locking ring is a reliable solution for creating durable and leak‑proof connections between copper pipes and plastic hoses. Crafted from high‑quality nickel‑plated brass, it ensures excellent resistance to corrosion and long‑lasting performance even under demanding conditions. With a working pressure of up to 60 bar, this fitting provides outstanding strength and safety in both industrial and professional applications. For optimal performance when connecting to hoses, the use of reinforcing sleeves (B12) is recommended, guaranteeing stability and extending the service life of the installation. Designed for precision, durability, and ease of use, this connector is an ideal choice for those seeking efficiency and reliability in fluid systems.
