Is the One-Piece Carbon Steel Ear Clip Ring with Double Ears suitable for reinforced braid hoses and how do I install it with pliers?

Yes. The One-Piece Carbon Steel Ear Clip Ring with Double Ears is suitable for low-pressure hoses, including those reinforced with braid. Its design provides a secure, stable connection while the smooth, rounded inner edges protect the hose from damage, preserving the hose and system performance. How to install with pliers: 1. Position the One-Piece Carbon Steel Ear Clip Ring with Double Ears over the hose end and fitting so the ear(s) align with the clamp body. 2. Use dedicated ear-clamp pliers (sized for this type of ring). Place the pliers’ jaws around the ear(s). 3. Squeeze the pliers evenly and firmly until the ear is fully compressed and the clamp tightens snugly around the hose. Compress both ears (if applicable) to ensure uniform clamping pressure. 4. Inspect the clamp: it should sit evenly, with the inner edges flush against the hose and no visible gaps or pinched hose material. 5. Trim any protruding clip material if required and verify the joint under pressure for leaks. Tips: use the correct pliers for the ring size, compress ears fully but avoid over-crimping, and check compatibility with your hose and operating pressure.

Can the One-Piece Carbon Steel Ear Clip Ring with Double Ears be reused after removal, and what is the recommended removal method?

Yes. The One-Piece Carbon Steel Ear Clip Ring with Double Ears can be reused after removal, provided the ring and the hose are inspected and the clamp has not been permanently deformed, cracked, or excessively corroded. Recommended removal method: use appropriate removal pliers or cutting tools to gently spread or cut the ear(s) without nicking or crushing the hose. After removal, carefully straighten and inspect the ear and band; only reuse if the ear closes cleanly and the ring retains its original shape and clamping integrity. If any deformation, stress fractures, rust, or loss of tension is detected, replace the clamp with a new One-Piece Carbon Steel Ear Clip Ring with Double Ears to ensure a reliable, leak-free connection.

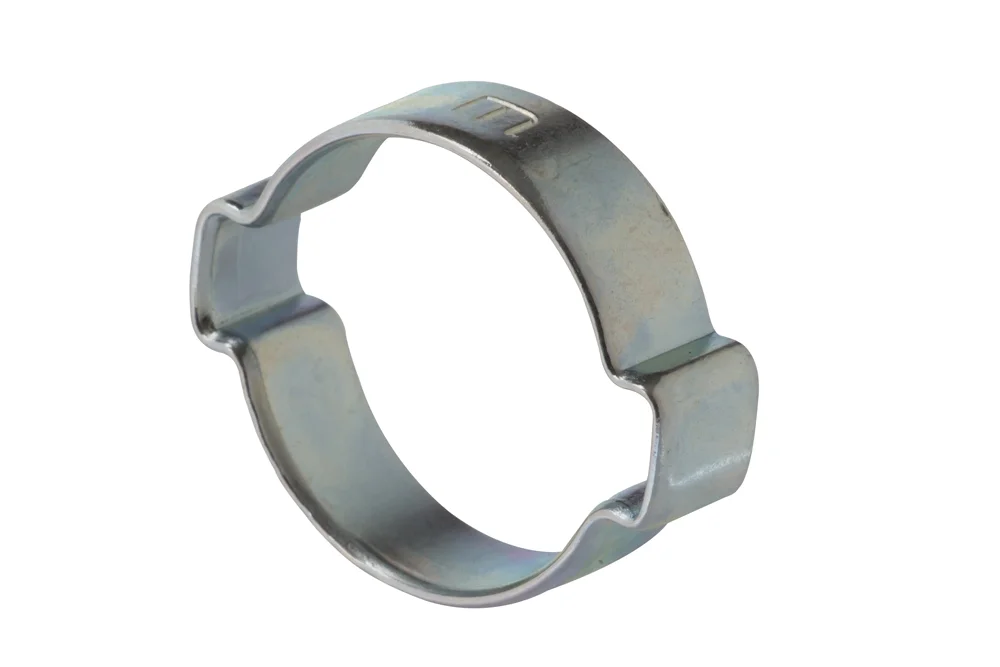

One-piece steel ring clamping EAR CLIP with 2 ears, steel carbon

All products, Clamps for mounting ends/

Additional information

Material	CS – steel (cast iron)

Ring clamping EAR CLIP with 2 ears for mounting different kinds hoses low-pressure reinforced a braid or without reinforcement. easy and fast assembly at means intended for this order pliers. rounded edges inside ring protect hose against damage. Material: galvanised carbon steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AB-03012099	Ring crimped EAR CLIP-2 10÷12 mm, W1	-	-	In stock	Enquiry
AB-03012101	Ring crimped EAR CLIP-2 5÷7 mm, W1	-	-	In stock	Enquiry
AB-03012110	Ring crimped EAR CLIP-2 7÷9 mm, W1	-	-	In stock	Enquiry
AB-03012128	Ring crimped EAR CLIP-2 9÷11 mm, W1	-	-	In stock	Enquiry
AB-03012136	Ring crimped EAR CLIP-2 11÷13 mm, W1	-	-	In stock	Enquiry
AB-03012144	Ring crimped EAR CLIP-2 13÷15 mm, W1	-	-	In stock	Enquiry
AB-03012152	Ring crimped EAR CLIP-2 14÷17 mm, W1	-	-	In stock	Enquiry
AB-03012160	Ring crimped EAR CLIP-2 15÷18 mm, W1	-	-	In stock	Enquiry
AB-03012179	Ring crimped EAR CLIP-2 17÷20 mm, W1	-	-	In stock	Enquiry
AB-03012187	Ring crimped EAR CLIP-2 18÷21 mm, W1	-	-	In stock	Enquiry
AB-03012195	Ring crimped EAR CLIP-2 20÷23 mm, W1	-	-	In stock	Enquiry
AB-03012208	Ring crimped EAR CLIP-2 22÷25 mm, W1	-	-	In stock	Enquiry
AB-03012216	Ring crimped EAR CLIP-2 23÷27 mm, W1	-	-	In stock	Enquiry
AB-03012224	Ring crimped EAR CLIP-2 25÷28 mm, W1	-	-	In stock	Enquiry
AB-03012232	Ring crimped EAR CLIP-2 28÷31 mm, W1	-	-	In stock	Enquiry
AB-03012240	Ring crimped EAR CLIP-2 31÷34 mm, W1	-	-	In stock	Enquiry
AB-03012259	Ring crimped EAR CLIP-2 34÷37 mm, W1	-	-	In stock	Enquiry
AB-03012267	Ring crimped EAR CLIP-2 37÷40 mm, W1	-	-	In stock	Enquiry
AB-03012275	Ring crimped EAR CLIP-2 40÷43 mm, W1	-	-	In stock	Enquiry
AB-03012283	Ring crimped EAR CLIP-2 43÷46 mm, W1	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Ring clamping EAR CLIP with 2 ears for mounting different kinds hoses low-pressure reinforced a braid or without reinforcement. easy and fast assembly at means intended for this order pliers. rounded edges inside ring protect hose against damage. Material: galvanised carbon steel.
