Is the WE-MT angled screw joint, carbon steel, compatible with standard hydraulic hoses and fittings in both L and S series?

Yes. The WE-MT angled screw joint, carbon steel is compatible with standard hydraulic hoses and fittings in both L (light) and S (heavy) series. It uses a 24° DIN 2353 socket with external metric threads on both sides, so it mates with standard DIN 2353 fittings when properly sized. Sealing is achieved directly on the thread using Teflon tape or an anaerobic sealant, and the carbon steel construction with galvanized finish supports typical hydraulic system pressures and environments—L series for standard applications and S series for higher-pressure or heavier-duty systems. Ensure you select the correct size and series (L vs S) for your hose/fitting pressure rating and follow proper sealing and assembly procedures.

Can the WE-MT angled screw joint, carbon steel, be used with PTFE tape or anaerobic sealant for reliable sealing across both L and S series installations?

Yes. The WE-MT angled screw joint, carbon steel, can be reliably sealed using PTFE (Teflon) tape or an anaerobic sealant. The fitting is designed with a 24° DIN 2353 socket and external metric threads on both sides, and the product description explicitly states that sealing is achieved directly on the thread using Teflon tape or anaerobic sealant. This applies for both L (light) and S (heavy) series versions, giving you flexibility for standard installations and higher-pressure applications. Ensure correct application: use appropriate-grade PTFE tape applied in the threading direction without overwrapping, or a compatible anaerobic sealant rated for your system’s pressure, temperature, and fluid. Follow recommended torques and assembly procedures for each series to maintain sealing integrity and avoid damage.

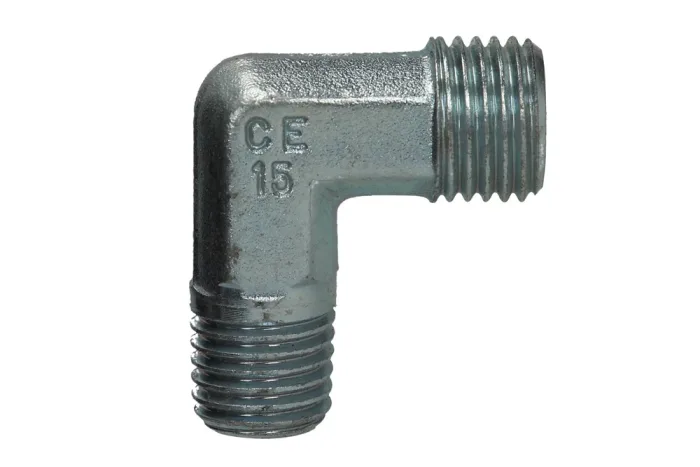

WE-MT angled screw joint, carbon steel

Additional information

Material	CS – steel (cast iron)

The DIN 2353 angular screw fitting type WE-MT is a high-quality connector designed for reliable performance in demanding hydraulic and pneumatic applications. Featuring a 24° DIN 2353 socket combined with an external metric thread on both sides, it ensures secure and leak-free connections, with sealing achieved directly on the thread using Teflon tape or anaerobic sealant. Available in both L (light series) and S (heavy series), this fitting provides flexibility for a wide range of system requirements, from standard installations to high-pressure environments. Manufactured from durable carbon steel and finished with a protective galvanized coating, it offers excellent resistance to corrosion and mechanical wear, extending the service life of your equipment. Its precise engineering guarantees easy assembly, reduced maintenance, and consistent performance, making it an ideal choice for industries that demand efficiency, safety, and long-lasting reliability.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-WE-06L-MT-10	DIN 2353 fitting WE 6L M10x1	-	315	In stock	Enquiry
HD-WE-06S-MT-12	DIN 2353 fitting WE 6S M12x1.5	-	630	In stock	Enquiry
HD-WE-08L-MT-12	DIN 2353 fitting WE 8L M12x1.5	-	315	In stock	Enquiry
HD-WE-08S-MT-14	DIN 2353 fitting WE 8S M14x1.5	-	630	In stock	Enquiry
HD-WE-10L-MT-14	DIN 2353 fitting WE 10L M14x1.5	-	315	In stock	Enquiry
HD-WE-10S-MT-16	DIN 2353 fitting WE 10S M16x1.5	-	630	In stock	Enquiry
HD-WE-12L-MT-16	DIN 2353 fitting WE 12L M16x1.5	-	315	In stock	Enquiry
HD-WE-12S-MT-18	DIN 2353 fitting WE 12S M18x1.5	-	630	In stock	Enquiry
HD-WE-14S-MT-20	DIN 2353 fitting WE 14S M20x1.5	-	630	In stock	Enquiry
HD-WE-15L-MT-18	DIN 2353 fitting WE 15L M18x1.5	-	315	In stock	Enquiry
HD-WE-16S-MT-22	DIN 2353 fitting WE 16S M22x1.5	-	400	In stock	Enquiry
HD-WE-18L-MT-22	DIN 2353 fitting WE 18L M22x1.5	-	315	In stock	Enquiry
