Does the ES4 Jam Ring with Gasket, Carbon Steel, Zinc-Nickel Coated prevent leaks if the metal seal loosens due to material creep?

Yes. The ES4 Jam Ring with Gasket, Carbon Steel, Zinc-Nickel Coated prevents leaks even if the metal seal loosens due to material creep. Its profiled gasket integrated into the cone recess plus an additional O-ring provide a secondary elastomeric sealing barrier that compensates for metal relaxation. Built with a high-performance Viton seal and robust carbon steel body, it maintains reliable sealing under creep conditions. The zinc-nickel coating (6–10 µm) adds corrosion resistance for long-term integrity, and availability in both L (light) and S (heavy) series ensures compatibility with various DIN 2353 hydraulic applications.

How does the ES4 Jam Ring with Gasket, Carbon Steel, Zinc-Nickel Coated maintain sealing performance under extreme temperature cycling and long-term creep?

ES4 Jam Ring with Gasket, Carbon Steel, Zinc-Nickel Coated maintains sealing performance under extreme temperature cycling and long-term creep through a multi-layered, fail-safe design: - Profiled gasket integrated into the cone recess plus an additional O‑ring: the dual elastomeric seals absorb differential movement from thermal expansion/contraction and take up deformation caused by long‑term creep, preventing voids that lead to leakage. - Metallic backup seal mitigation: the elastomeric gasket and O‑ring remain the primary sealing elements even if the metallic contact loosens from creep, eliminating leak paths that would occur with a purely metal seal. - High‑performance Viton seal material: Viton retains elasticity and chemical stability across wide temperature ranges, preserving compression set resistance and sealing force during repeated thermal cycles. - Robust carbon steel body and precise profiling: mechanical stability and tight tolerances ensure consistent loading of the gasket/O‑ring over time, limiting progressive relaxation or extrusion under sustained stress. - Zinc‑nickel coating (6–10 µm): protects the ring from corrosion that could undermine seal faces or cause increased wear during thermal movement; proven to withstand up to 720 hours in salt spray testing. Combined, these features allow ES4 Jam Ring with Gasket, Carbon Steel, Zinc-Nickel Coated to sustain reliable sealing performance under extreme temperature cycling and long‑term creep in demanding hydraulic applications.

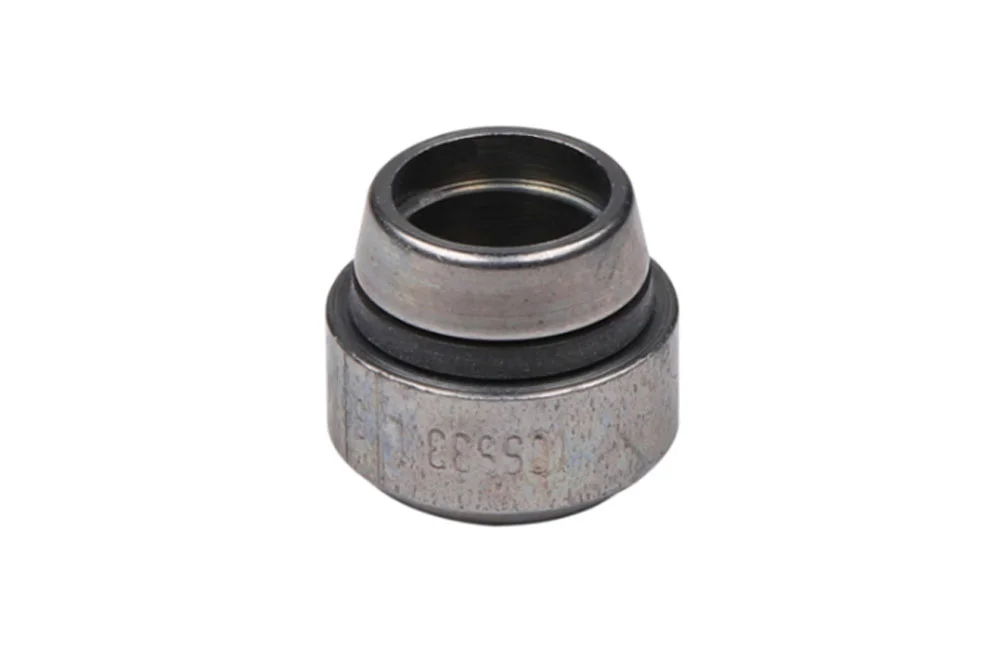

ES4 Jam Ring with Gasket, Carbon Steel, Zinc-Nickel Coated

Additional information

The sealing ring with a profiled gasket integrated into the cone recess and an additional O-ring provides a highly reliable solution for DIN 2353 connections, effectively eliminating the risk of leakage even in cases of metallic seal loosening caused by material creep. Designed for maximum durability and safety, it is available in both L (light series) and S (heavy series), ensuring compatibility with a wide range of hydraulic applications. The surface is protected with an advanced zinc-nickel coating of 6–10 µm, delivering exceptional resistance to corrosion and guaranteeing up to 720 hours of protection in salt spray testing. Manufactured from robust carbon steel and equipped with a high-performance Viton seal, this product combines strength, precision, and long-lasting reliability, making it an ideal choice for demanding industrial environments where leak prevention and extended service life are essential.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-ES4-06-CN	6 mm locking ring with Viton seal, Zn-Ni	-	-	In stock	Enquiry
HD-ES4-08-CN	8 mm locking ring with Viton seal, Zn-Ni	-	-	In stock	Enquiry
HD-ES4-10-CN	10 mm locking ring with Viton seal, Zn-Ni	-	-	In stock	Enquiry
HD-ES4-12-CN	12 mm locking ring with Viton seal, Zn-Ni	-	-	In stock	Enquiry
HD-ES4-14-CN	14 mm locking ring with Viton seal, Zn-Ni	-	-	In stock	Enquiry
HD-ES4-15-CN	15 mm locking ring with Viton seal, Zn-Ni	-	-	In stock	Enquiry
HD-ES4-16-CN	16 mm locking ring with Viton seal, Zn-Ni	-	-	In stock	Enquiry
HD-ES4-18-CN	18 mm locking ring with Viton seal, Zn-Ni	-	-	In stock	Enquiry
HD-ES4-20-CN	20 mm locking ring with Viton seal, Zn-Ni	-	-	In stock	Enquiry
HD-ES4-22-CN	22 mm locking ring with Viton seal, Zn-Ni	-	-	In stock	Enquiry
HD-ES4-25-CN	25 mm locking ring with Viton seal, Zn-Ni	-	-	In stock	Enquiry
HD-ES4-28-CN	28 mm locking ring with Viton seal, Zn-Ni	-	-	In stock	Enquiry
HD-ES4-38-CN	38 mm locking ring with Viton seal, Zn-Ni	-	-	In stock	Enquiry
HD-ES4-42-CN	42 mm locking ring with Viton seal, Zn-Ni	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The sealing ring with a profiled gasket integrated into the cone recess and an additional O-ring provides a highly reliable solution for DIN 2353 connections, effectively eliminating the risk of leakage even in cases of metallic seal loosening caused by material creep. Designed for maximum durability and safety, it is available in both L (light series) and S (heavy series), ensuring compatibility with a wide range of hydraulic applications. The surface is protected with an advanced zinc-nickel coating of 6–10 µm, delivering exceptional resistance to corrosion and guaranteeing up to 720 hours of protection in salt spray testing. Manufactured from robust carbon steel and equipped with a high-performance Viton seal, this product combines strength, precision, and long-lasting reliability, making it an ideal choice for demanding industrial environments where leak prevention and extended service life are essential.
