Is the FAV Carbon Steel Pressure Gauge Connector compatible with standard BSP threads and 24° DIN 2353 fittings?

Yes. The FAV Carbon Steel Pressure Gauge Connector is compatible with standard internal BSP threads (it features an internal cylindrical BSP thread with a sealing ring) and with 24° DIN 2353 fittings (it includes a 24° DIN 2353 socket with an FPM/FKM O‑ring and internal metric thread, secured by a nut). Available in light (L) and heavy (S) series and made from galvanized carbon steel, it provides reliable, leak‑free connections and adjustable installation for hydraulic systems.

Can the FAV Carbon Steel Pressure Gauge Connector be used with different O‑ring materials for specific chemical or temperature requirements?

Yes. The FAV Carbon Steel Pressure Gauge Connector can be used with different O‑ring materials to meet specific chemical compatibility or temperature requirements, but with limitations tied to the product description. Standard delivery includes an FPM/FKM O‑ring, which is well suited for many hydraulic fluids and a broad temperature range. If your application requires media or temperatures outside FPM/FKM limits, alternative elastomers (e.g., NBR for general oil resistance, EPDM for water/glycol systems, FFKM for aggressive chemicals/high temps, or HNBR for higher temperature and improved chemical resistance) may be considered—provided the replacement O‑ring matches the connector’s groove dimensions and pressure/seat geometry. Before changing materials, verify chemical compatibility, temperature range, and hardness (durometer), and confirm that the sealing element does not impair assembly or the 24° DIN 2353 sealing function. For safety and warranty reasons, consult the manufacturer or supplier to confirm approved O‑ring alternatives and installation practices.

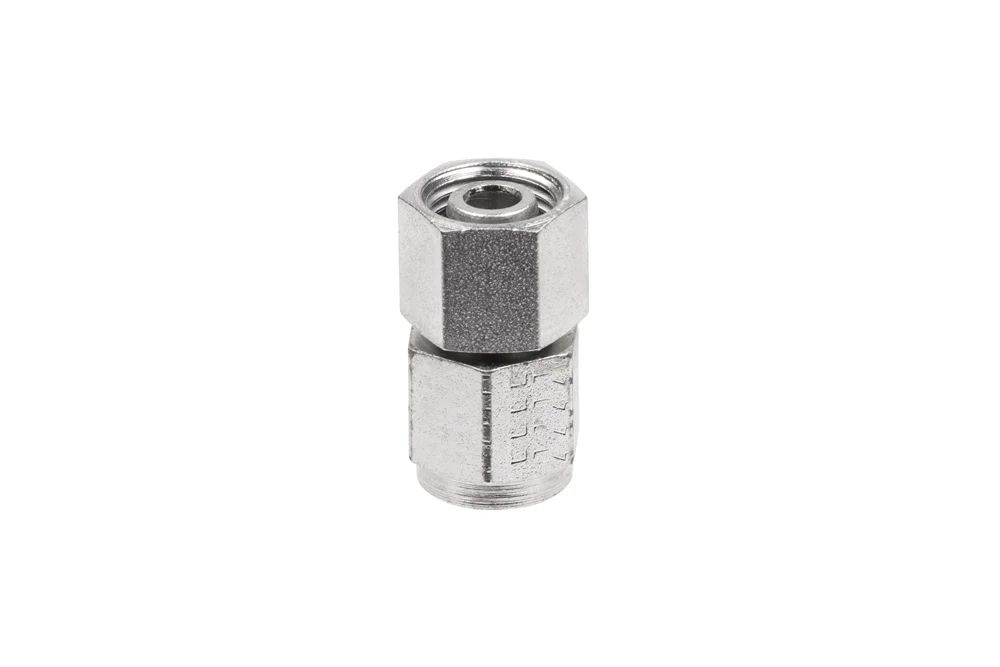

FAV Carbon Steel Pressure Gauge Connector

Additional information

Material	CS – steel (cast iron)

The DIN 2353 straight adjustable pressure coupling, type FAV-B, is a high‑performance connection element designed for demanding hydraulic applications. It features an internal cylindrical BSP thread with sealing ring, combined with a 24° DIN 2353 socket equipped with a durable FPM/FKM O‑ring and internal metric thread, secured by a robust nut. Available in both L (light series) and S (heavy series), this coupling ensures reliable adaptability across a wide range of system requirements. Manufactured from premium carbon steel with a high‑quality galvanized finish, it offers excellent resistance to wear and corrosion, guaranteeing long service life even under challenging operating conditions. Its precise construction allows for secure, leak‑free connections, while the adjustable design provides flexibility during installation and maintenance. This makes the FAV‑B coupling an ideal choice for industries seeking efficiency, safety, and durability in hydraulic systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
HD-FAV-10L-B-04	DIN 2353 fitting FAV 10L 1/4" BSP	-	315	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The DIN 2353 straight adjustable pressure coupling, type FAV-B, is a high‑performance connection element designed for demanding hydraulic applications. It features an internal cylindrical BSP thread with sealing ring, combined with a 24° DIN 2353 socket equipped with a durable FPM/FKM O‑ring and internal metric thread, secured by a robust nut. Available in both L (light series) and S (heavy series), this coupling ensures reliable adaptability across a wide range of system requirements. Manufactured from premium carbon steel with a high‑quality galvanized finish, it offers excellent resistance to wear and corrosion, guaranteeing long service life even under challenging operating conditions. Its precise construction allows for secure, leak‑free connections, while the adjustable design provides flexibility during installation and maintenance. This makes the FAV‑B coupling an ideal choice for industries seeking efficiency, safety, and durability in hydraulic systems.
