Does the Carbon Steel EVL Tee Fitting "L" with UNF Female/Male Threads require periodic O‑ring replacement for leak‑free performance?

The Carbon Steel EVL Tee Fitting "L" with UNF Female/Male Threads Format uses an external UNF thread with an O‑ring seated in the groove of the flat front surface to guarantee secure, leak‑free connections. For leak‑free performance, the O‑ring should be inspected and replaced periodically as part of routine maintenance—especially after disassembly, exposure to harsh chemicals, extrusion, cuts, flattening, or visible hardening. Replacement intervals depend on operating conditions (pressure, temperature, media, vibration) and service frequency; inspect more often in severe conditions and always replace a damaged or deformed O‑ring before reassembly to ensure continued sealing integrity. Use the correct O‑ring material and size specified for the fitting and system to maintain reliable performance.

How should the O‑ring on the Carbon Steel EVL Tee Fitting "L" with UNF Female/Male Threads be inspected and maintained to ensure continued leak‑free performance?

Inspect and maintain the O‑ring on the Carbon Steel EVL Tee Fitting "L" with UNF Female/Male Threads as follows to ensure continued leak‑free performance: - Visual inspection: before installation and during routine maintenance, check the O‑ring for cuts, nicks, cracks, flattening, swelling, hardening, or extrusion. Replace if any damage or deformation is visible. - Cleanliness: keep the O‑ring and groove free of dirt, metal shavings, and corrosion. Wipe with a clean, lint‑free cloth and, if needed, use a compatible solvent that does not degrade the O‑ring material. - Lubrication: apply a thin, even coat of a lubricant compatible with the O‑ring elastomer and the system fluid to ease installation and prevent twisting or rolling. Avoid petroleum‑based lubricants if incompatible. - Correct seating: ensure the O‑ring sits fully in the groove of the flat front surface without twisting or pinching. Confirm the mating UNF thread and front surface are clean and undamaged to permit proper sealing. - Torque and assembly: tighten connections to the manufacturer’s recommended torque to avoid overcompression or extrusion of the O‑ring. Do not overtighten. - Material compatibility: verify the O‑ring material is compatible with the operating temperature, pressure, and media used in the system; replace with a suitable compound if conditions change. - Periodic replacement: replace O‑rings at regular service intervals or whenever removed, as elastomers can age and lose sealing properties over time. - Leak check: after assembly, perform a pressure or leak test at operating conditions to confirm a secure, leak‑free seal. Following these steps will help maintain the seal integrity of the Carbon Steel EVL Tee Fitting "L" with UNF Female/Male Threads and ensure reliable, long‑term performance.

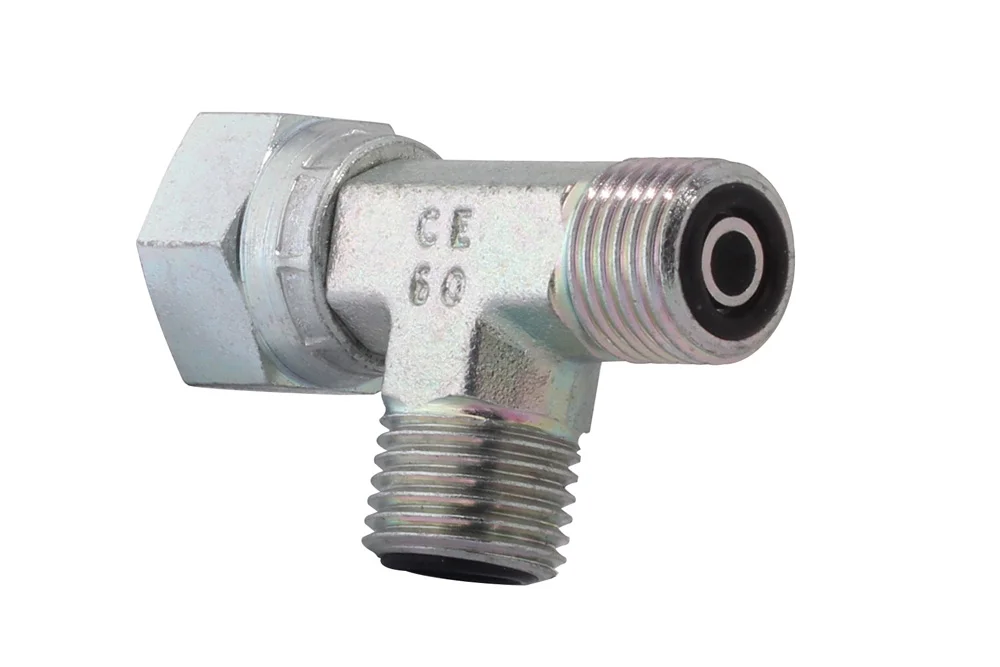

Carbon Steel EVL Tee Fitting “L” with UNF Female/Male Threads

Additional information

Material	CS – steel (cast iron)
Standard length [m]	120

The EVL L‑shaped tee fitting is a robust and reliable connector designed for demanding hydraulic and pneumatic applications. Manufactured from high‑quality carbon steel and protected with a durable galvanized coating, it ensures excellent resistance to corrosion and long‑lasting performance even in challenging environments. The fitting features an internal thread with front surface sealing, combined with an external UNF thread equipped with an O‑ring seated in the groove of the flat front surface, guaranteeing secure, leak‑free connections. Its precise engineering allows for easy installation and dependable operation, making it an ideal choice for systems where safety, efficiency, and durability are essential. With its compact L‑shaped design, the EVL tee fitting optimizes space utilization while maintaining maximum strength, offering a professional solution for industries that demand superior quality and reliability.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HO-EVL-09	L-shaped tee GW ORFS 9/16"-18 - GZ ORFS 9/16"-18	-	630	In stock	Enquiry
HO-EVL-11	L-shaped tee GW ORFS 11/16"-16 - GZ ORFS 11/16"-16	-	630	In stock	Enquiry
HO-EVL-13	L-shaped tee GW ORFS 13/16"-16 - GZ ORFS 13/16"-16	-	630	In stock	Enquiry
HO-EVL-16	L-shaped tee GW ORFS 1"-14 - GZ ORFS 1"-14	-	420	In stock	Enquiry
HO-EVL-19	L tee GW ORFS 1.3/16"-12 - GZ ORFS 1.3/16"-12	-	420	In stock	Enquiry
HO-EVL-23	L-shaped tee GW ORFS 1.7/16"-12 - GZ ORFS 1.7/16"-12	-	420	In stock	Enquiry
HO-EVL-27	L-shaped tee GW ORFS 1.11/16"-12 - GZ ORFS 1.11/16"-12	-	280	In stock	Enquiry
HO-EVL-32	L-shaped tee GW ORFS 2"-12 - GZ ORFS 2"-12	-	280	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The EVL L‑shaped tee fitting is a robust and reliable connector designed for demanding hydraulic and pneumatic applications. Manufactured from high‑quality carbon steel and protected with a durable galvanized coating, it ensures excellent resistance to corrosion and long‑lasting performance even in challenging environments. The fitting features an internal thread with front surface sealing, combined with an external UNF thread equipped with an O‑ring seated in the groove of the flat front surface, guaranteeing secure, leak‑free connections. Its precise engineering allows for easy installation and dependable operation, making it an ideal choice for systems where safety, efficiency, and durability are essential. With its compact L‑shaped design, the EVL tee fitting optimizes space utilization while maintaining maximum strength, offering a professional solution for industries that demand superior quality and reliability.
