Can the Carbon Steel Pressure Gauge Adapter FT 299 be used with hydraulic systems containing aggressive fluids or should I request the AISI 316 stainless steel version?

If your hydraulic system contains aggressive or corrosive fluids (chlorides, acids, saline mixtures or other chemically aggressive media), you should request the AISI 316 stainless steel version rather than the Carbon Steel Pressure Gauge Adapter FT 299. The standard Carbon Steel Pressure Gauge Adapter FT 299 is made from galvanized steel with NBR sealing and offers good durability and wear resistance for typical hydraulic oils and non-aggressive environments, but it may corrode or degrade faster when exposed to aggressive chemicals. The AISI 316 stainless steel option provides significantly better corrosion resistance and long-term reliability in chemically aggressive or highly corrosive environments, making it the safer choice for such applications. Also consider compatibility of the NBR seal with the specific fluid; for highly aggressive fluids you may need a different sealing material as well.

Is the Carbon Steel Pressure Gauge Adapter FT 299 compatible with systems operating above 100°C or should I request the AISI 316 stainless steel version for high-temperature applications?

The Carbon Steel Pressure Gauge Adapter FT 299 is specified to operate efficiently within a temperature range of -20°C to +100°C. For systems operating above 100°C you should request the AISI 316 stainless steel version for high-temperature applications, as the Carbon Steel FT 299 is not rated for temperatures exceeding +100°C.

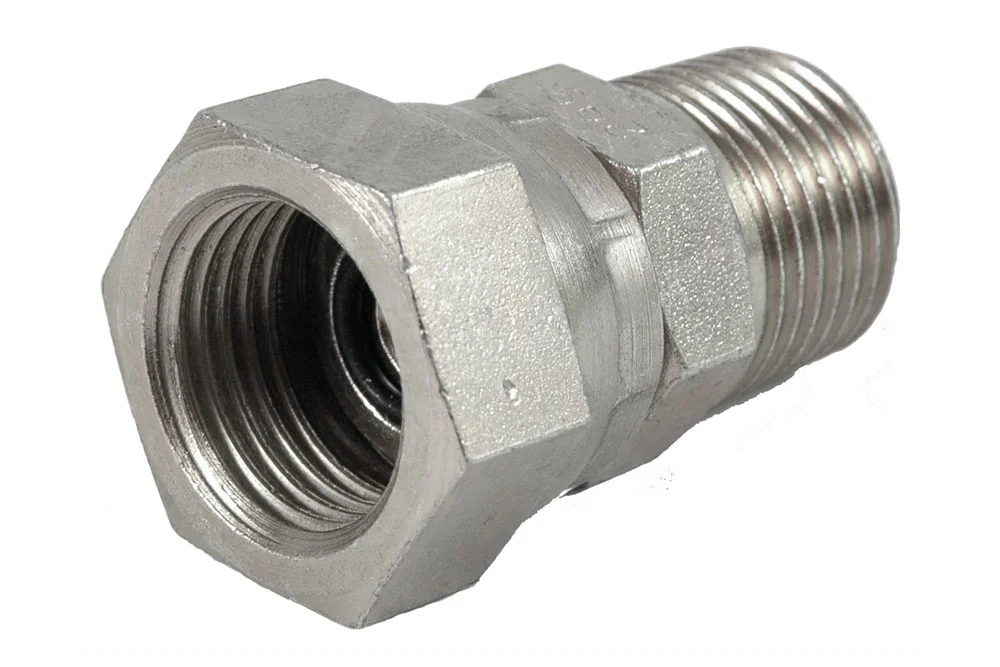

Carbon Steel Pressure Gauge Adapter FT 299

All products, Manometers reducers and valves/

Additional information

Material	CS – steel (cast iron)

This special adapter enables the direct connection of a pressure gauge to a hydraulic system, ensuring reliable and precise measurement under demanding conditions. Its innovative design with a restricted oil flow channel effectively reduces sudden pressure surges, protecting both the system and the measuring device from damage. The rotating nut provides flexibility in positioning the gauge, allowing for optimal readability and convenient installation even in tight spaces. Manufactured from durable galvanized steel and equipped with high-quality NBR sealing, the adapter guarantees long-lasting performance and resistance to wear. It operates efficiently within a wide temperature range from -20°C to +100°C, making it suitable for diverse industrial applications. For environments requiring enhanced corrosion resistance, the adapter is also available on request in premium AISI 316 stainless steel, offering an ideal solution for industries where durability, safety, and precision are essential.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
DC-FT299-42	FT299 pressure gauge adapter, 1/4” BSP male / 1/2” BSPT female	-	350	In stock	0 €		Enquiry
DC-FT299-44	FT299 manometric adapter, 1/4” BSP male / 1/4” BSPT female	-	350	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

This special adapter enables the direct connection of a pressure gauge to a hydraulic system, ensuring reliable and precise measurement under demanding conditions. Its innovative design with a restricted oil flow channel effectively reduces sudden pressure surges, protecting both the system and the measuring device from damage. The rotating nut provides flexibility in positioning the gauge, allowing for optimal readability and convenient installation even in tight spaces. Manufactured from durable galvanized steel and equipped with high-quality NBR sealing, the adapter guarantees long-lasting performance and resistance to wear. It operates efficiently within a wide temperature range from -20°C to +100°C, making it suitable for diverse industrial applications. For environments requiring enhanced corrosion resistance, the adapter is also available on request in premium AISI 316 stainless steel, offering an ideal solution for industries where durability, safety, and precision are essential.
