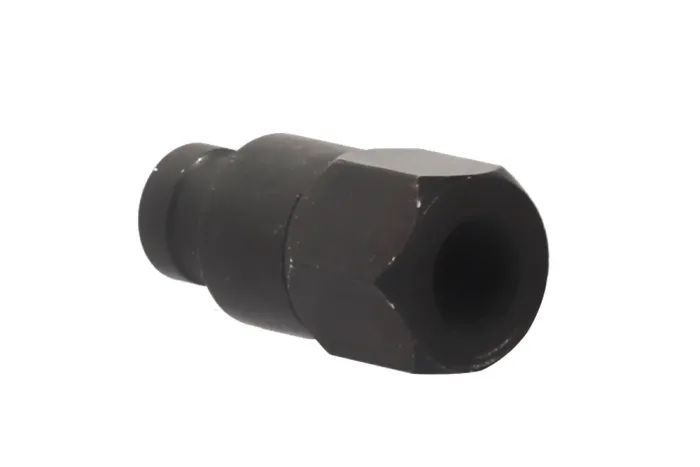

Quick coupling hydraulic Leak-free CEJN X65, plug with female thread of carbon steel
Leak-free plug quick coupling type “flat-face” intended mainly for machine construction, in which available large strokes pressure. plugs available also in version with an eliminator pressure static. quick coupling can be operated one hand. depending on use should select appropriate Material seal. interchangeable with quick coupling ISO-F other manufacturers. standard: ISO 16028, except for size 3/16″. Application: hydraulics power (oil hydraulic), industrial. Material: steel with coating zinc – nickel, except size 3/16″ coated coating zinc. Working pressure: up to 720 bar. sealing: NBR (od -25°C up to +100°C), Viton (od -15°C up to +200°C).
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Leak-free plug quick coupling type “flat-face” intended mainly for machine construction, in which available large strokes pressure. plugs available also in version with an eliminator pressure static. quick coupling can be operated one hand. depending on use should select appropriate Material seal. interchangeable with quick coupling ISO-F other manufacturers. standard: ISO 16028, except for size 3/16″. Application: hydraulics power (oil hydraulic), industrial. Material: steel with coating zinc – nickel, except size 3/16″ coated coating zinc. Working pressure: up to 720 bar. sealing: NBR (od -25°C up to +100°C), Viton (od -15°C up to +200°C).
Additional information
| Material | CS – steel (cast iron) |
|---|---|
| Standard length [m] | 10 |
